ASROCK B560M - 2.9 M.2_SSD (NGFF) Module Installation Guide (M2_1)

English
28
2.9 M.2_SSD (NGFF) Module Installation Guide (M2_1)
The M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. e Hyper M.2
Sockets (M2_1) supports M Key type 2242/2260/2280 M.2 PCI Express module up to
Gen4x4 (64 Gb/s) (with 11
th
Gen Intel® Core
TM
Processors) or Gen3x4 (32 Gb/s) (with 10
th
Gen Intel® Core
TM
Processors).

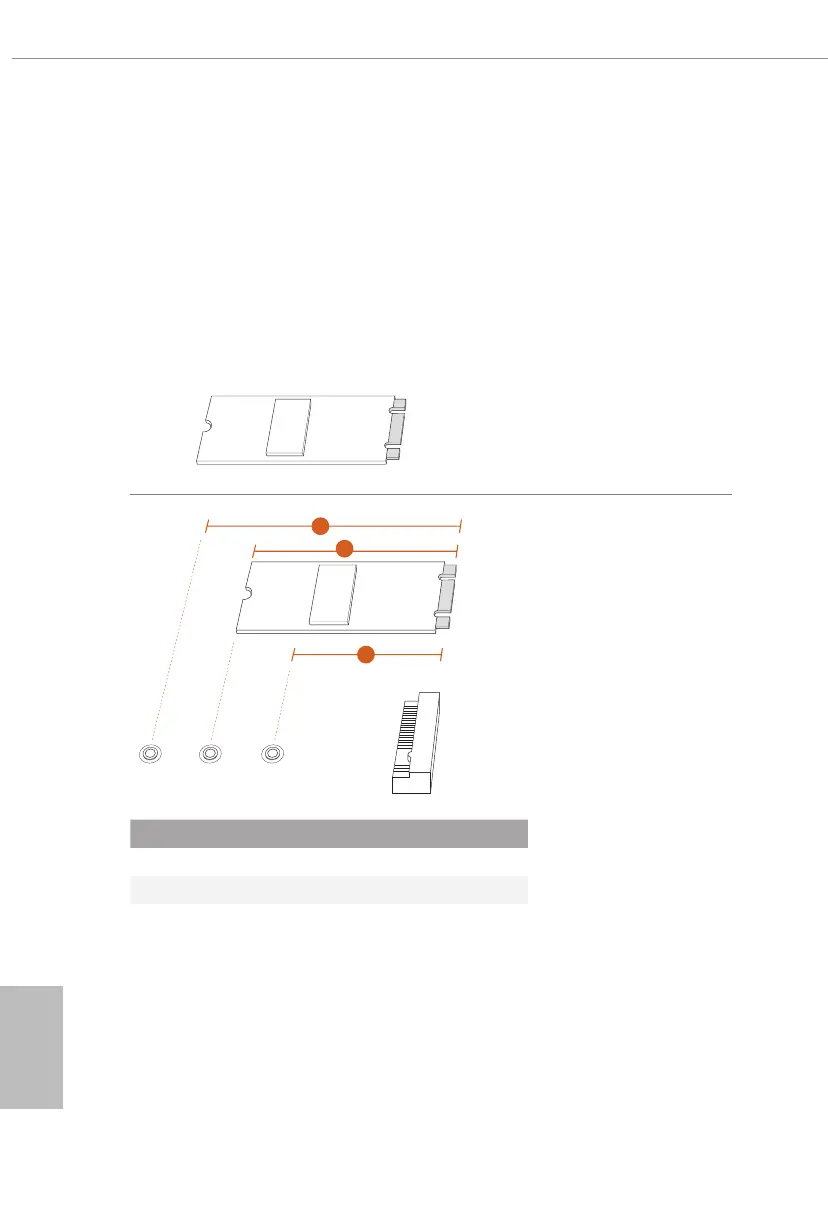

Installing the M.2_SSD (NGFF) Module
Step 1
Prepare a M.2_SSD (NGFF) module
and the screw.
Step 2
Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, nd the corresponding nut
location to be used.
No. 1 2 3
Nut Location A B C
PCB Length 4.2cm 6cm 8cm
Module Type Type 2242 Type2260 Type 2280
2
1
3
ABC
