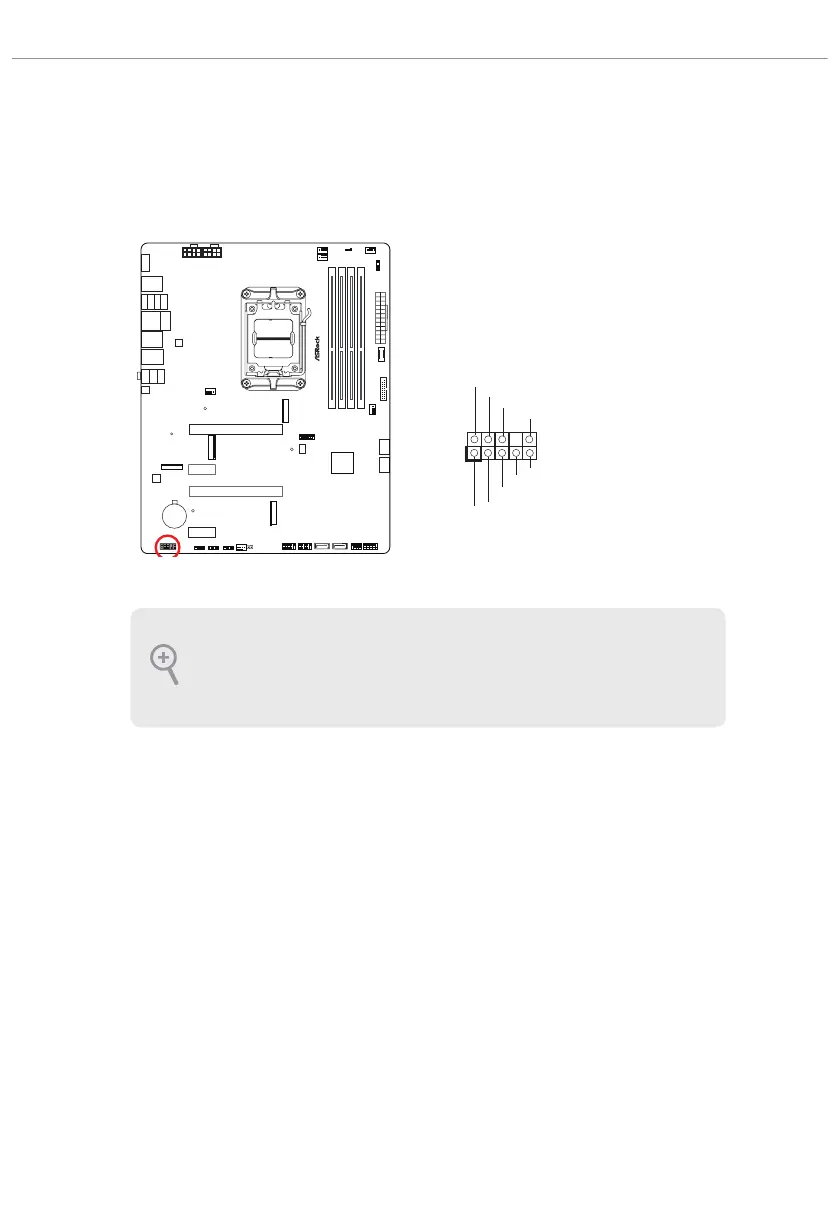

Front Panel Audio Header
(9-pin HD_AUDIO1) (see p.6, 7, No. 28)
is header is for connecting audio devices to the front audio panel.
High Denition Audio supports Jack Sensing, but the panel wire on the chassis must sup-
port HDA to function correctly. Please follow the instructions in our manual and chassis
manual to install your system.
HD_AUDIO1
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
