47
B650 PG Lightning WiFi
B650 PG Lightning

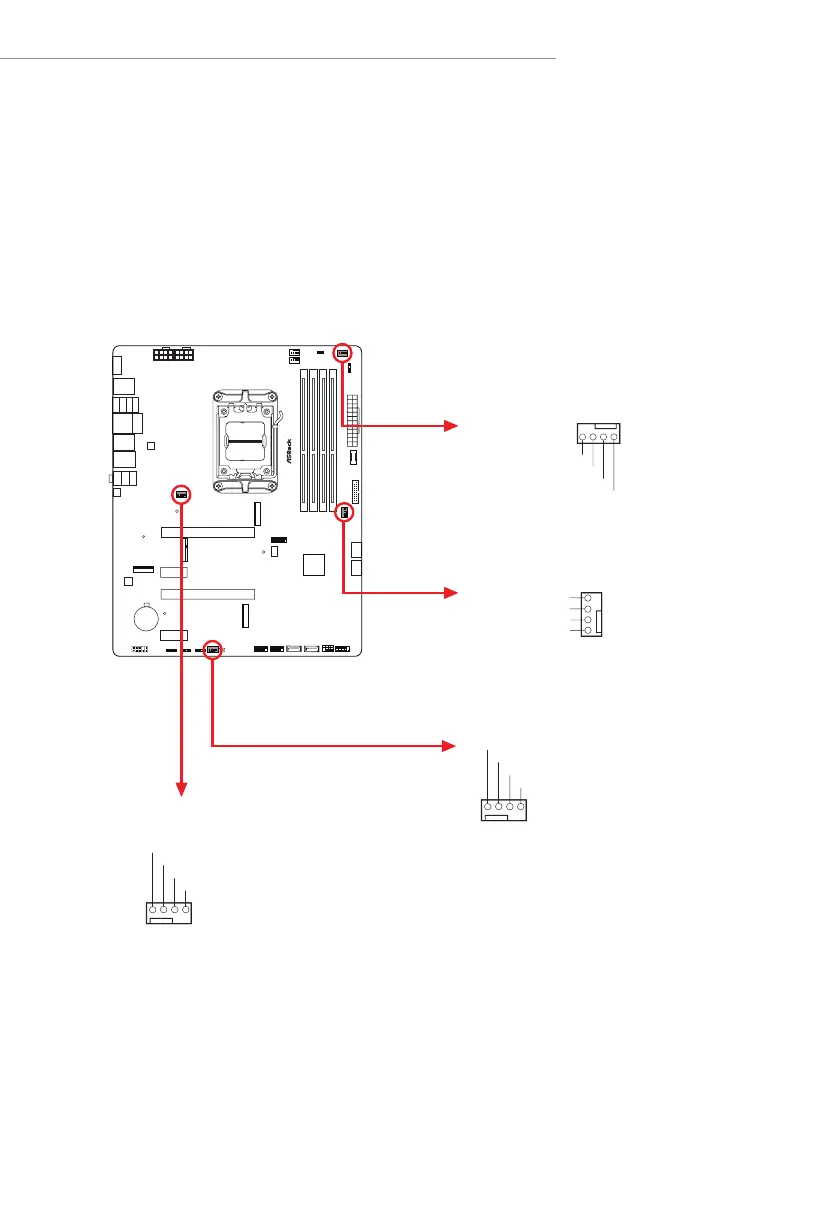

Chassis/Water Pump Fan Connectors
(4-pin CHA_FAN1/WP) (see p.6, 7, No. 8)
(4-pin CHA_FAN2/WP) (see p.6, 7, No. 13)
(4-pin CHA_FAN3/WP) (see p.6, 7, No. 29)
(4-pin CHA_FAN4/WP) (see p.6, 7, No. 24)
is motherboard provides four 4-Pin water cooling chassis fan connectors. If you
plan to connect a 3-Pin chassis water cooler fan, please connect it to Pin 1-3.
CHA_FAN3/WP
GND
CHA_FAN_SPEED
FAN_SPEED_CONTRO
L
FAN_VOLTAGE
1 2 3 4
CHA_FAN4/WP
GND
CHA_FAN_SPEED
FAN_SPEED_CONTROL
FAN_VOLTAGE
1 2 3 4
CHA_FAN2/WP
GND
FAN_VOLTAGE
CHA_FAN_SPEED
FAN_SPEED_CONTROL
4
3
2
1
CHA_FAN1/WP
GND
FAN_VOLTAGE
CHA_FAN_SPEED
FA
N_SPEED_CONTROL
4 3 2 1
