B650M-CX

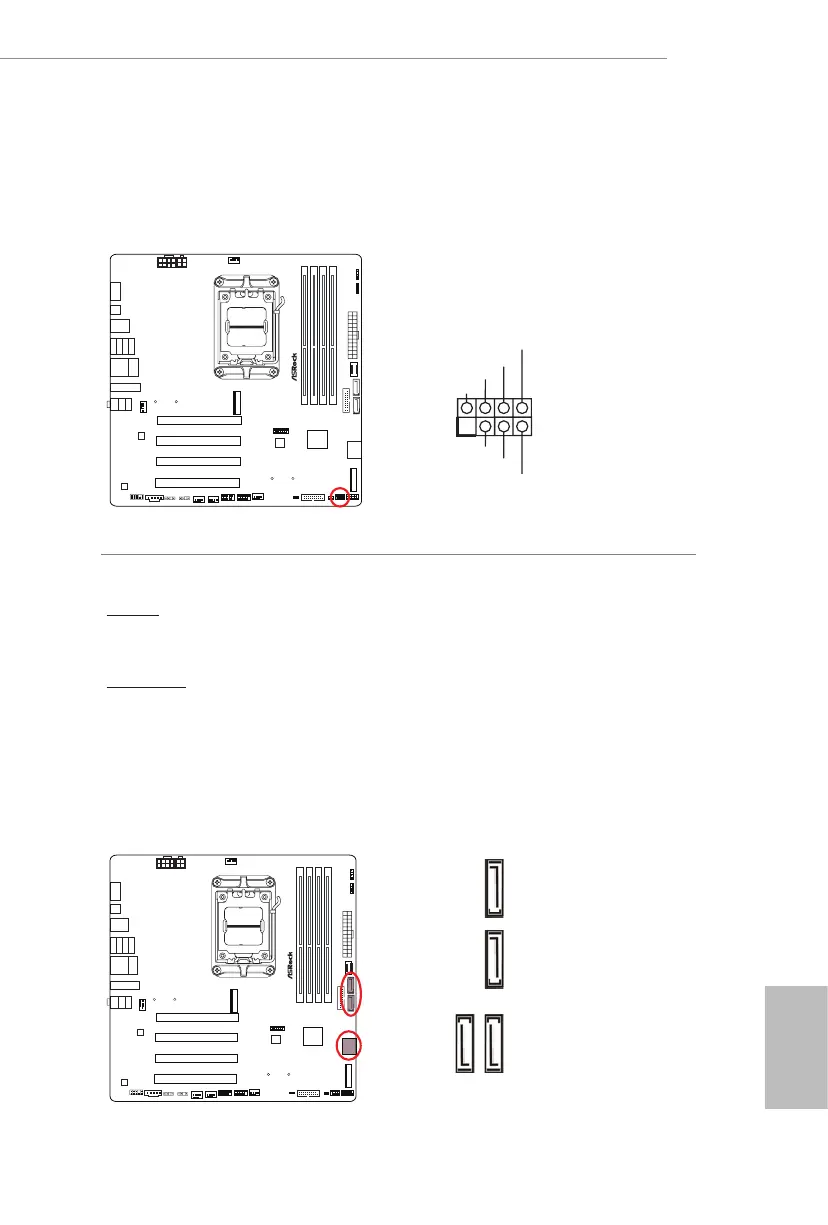

Power LED and Speaker Header
(7-pin SPK_PLED1) (see p.6, No. 16)
Please connect the chassis power LED and the chassis speaker to this header.
B6 50 M- CX
Serial ATA3 Connectors
Ver tical:
(SATA3_1) (see p.6, No. 10)
(SATA3_2) (see p.6, No. 11)
Right Angle:
(SATA3_3) (see p.6, No. 14)(Lower)
(SATA3_4) (see p.6, No. 14)(Upper)
ese four SATA3 connectors support SATA data cables for internal storage
devices with up to 6.0 Gb/s data transfer rate.
* M2_3 and SATA3_3_4 share lanes. If either one of them is in use, the other one
will be disabled.
B6 50 M- CX
1
+5V
DUMMY
PLED+
PLED+
PLED-
DUMMY
SPEAKER
SPK_PLED1
SATA3_2 SATA3_1
SATA3_4
SATA3_3
