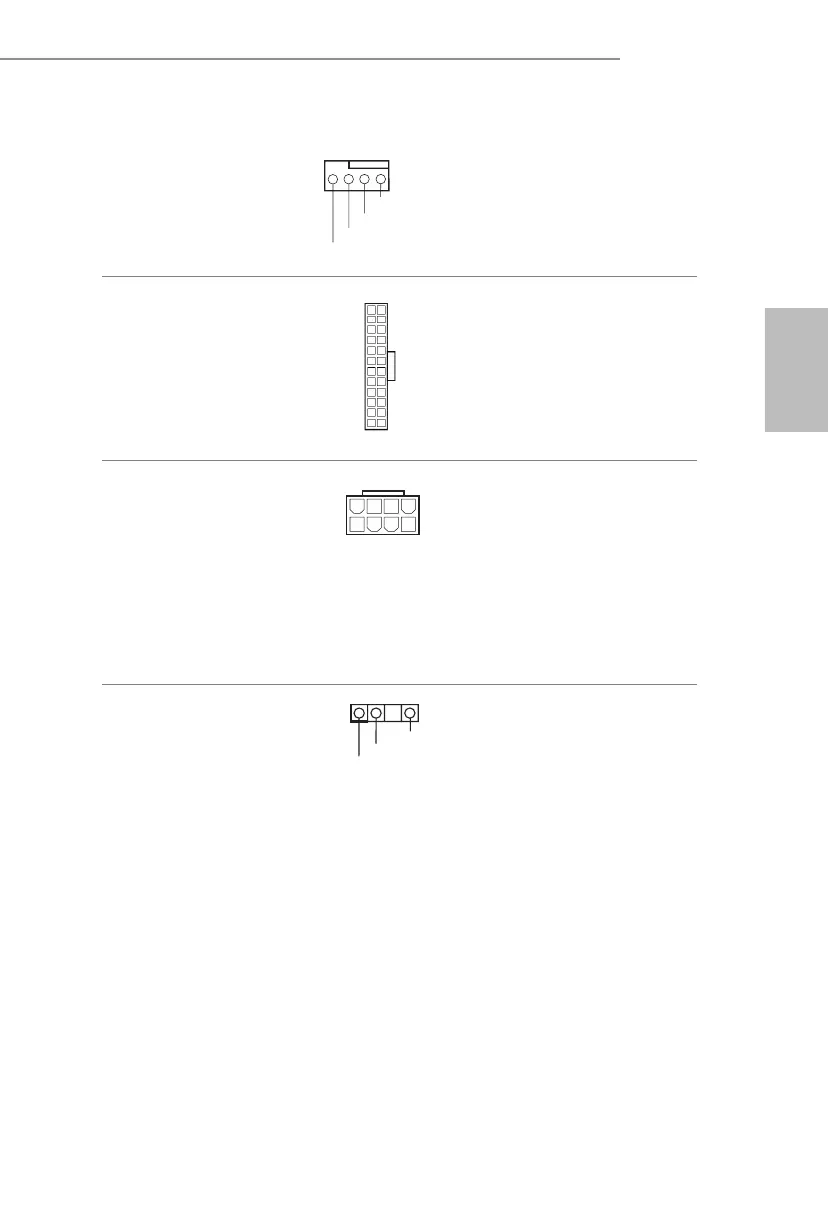

139
B660M-ITX/ac
繁體中文
CPU 風扇接頭
(4-pin CPU_FAN1)
(請參閱第 1 頁,編號 3)
CPU_F
+12V
GND
AN_SPEED
FAN_SPEED_CONTROL
4 3 2 1
本主機板配備 4-Pin CPU 風扇
(靜音風扇)接頭。若您計畫
連接 3-Pin CPU 風扇,請接至
Pin 1-3。
ATX 電源接頭
(24-pin ATXPWR1)
(請參閱第 1 頁,編號 7)
12
1
24
13
本主機板配備一組 24-pin ATX
電源接頭。
ATX 12V 電源接頭
(8-pin ATX12V1)
(請參閱第 1 頁,編號 2)
4
1
8 5
本主機板配備一組 8-pin ATX
12V 電源接頭。若要使用
4-pin ATX 電源供應器,請插
入 Pin 1 及 Pin 5。
* 警告:請確定已連接 CPU
電源線,而非顯示卡的電源
線。請勿將 PCIe 電源線插入
此接頭。
可定址 LED 排針
(3-pin ADDR_LED1)
(請參閱第 1 頁,編號 5)
VOUT
DO_ADDR
GND
1
此排針用於連接可讓使用者選
擇各種 LED 燈效的
可定址
LED
延長線。
警告:切勿以錯誤方向安裝可
定址 LED 纜線,否則纜線可能
損壞。
* 關於這種排針的詳細說明,
請參閱第 28 頁。
