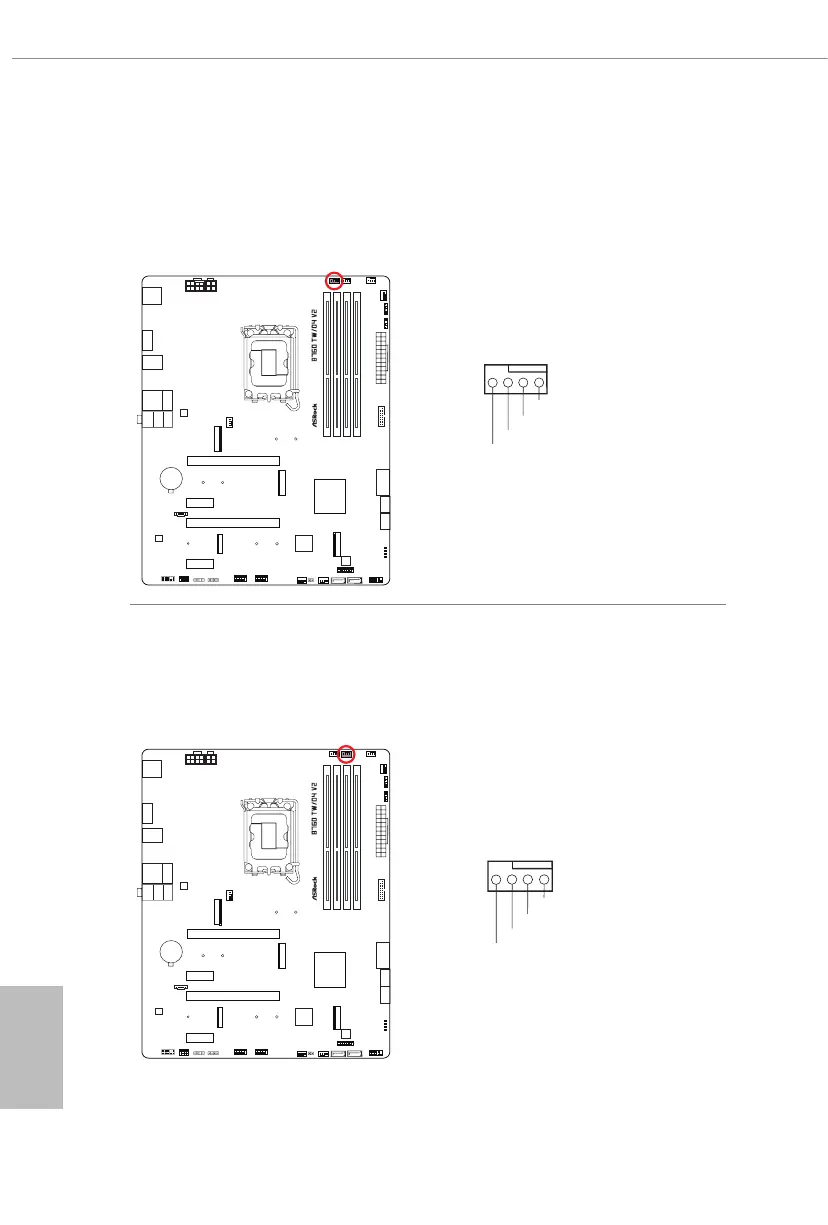

CPU Fan Connector
(4-pin CPU_FAN1) (see p.6, No. 4)
is motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to
connect a 3-Pin CPU fan, please connect it to Pin 1-3.
CPU/Water Pump Fan Connector
(4-pin CPU_FAN2/WP) (see p.6, No. 6)
is motherboard provides a 4-Pin water cooling CPU fan connector. If you plan
to connect a 3-Pin CPU water cooler fan, please connect it to Pin 1-3.
CPU_FAN1
CPU_F
+12V
GND
AN_SPEED
FAN_SPEED_CONTROL
4 3 2 1
CPU_FAN2/WP
CPU_F
FAN_VOLTAGE
GND
AN_SPEED
FAN_SPEED_CONTROL
4 3 2 1
