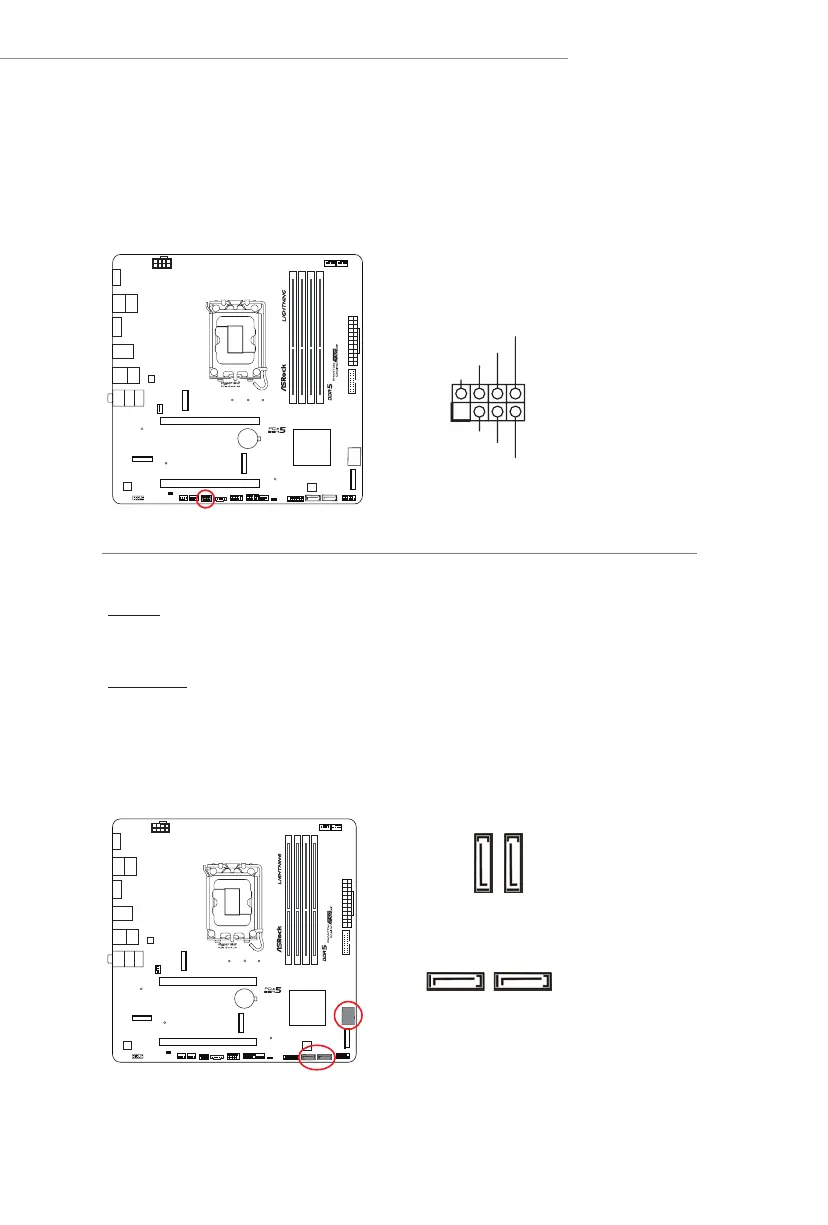

Chassis Intrusion and Speaker Header
(7-pin SPK_CI1) (see p.6, No. 19)
Please connect the chassis intrusion and the chassis speaker to this header.
B7 6 0M P G
Serial ATA3 Connectors
Ver tica l:
(SATA3_0) (see p.6, No. 11)
(SATA3_1) (see p.6, No. 12)
Right Angle:
(SATA3_2) (see p.6, No. 9)(Upper)
(SATA3_3) (see p.6, No. 8)(Lower)
ese four SATA3 connectors support SATA data cables for internal storage devices with
up to 6.0 Gb/s data transfer rate.
B7 6 0M P G
SPK_CI1
1
+5V
DUMMY
SIGNAL
GND
DUMMY
SPEAKER
DUMMY
SATA3_1 SATA3_0
SATA3_3
SATA3_2
