30

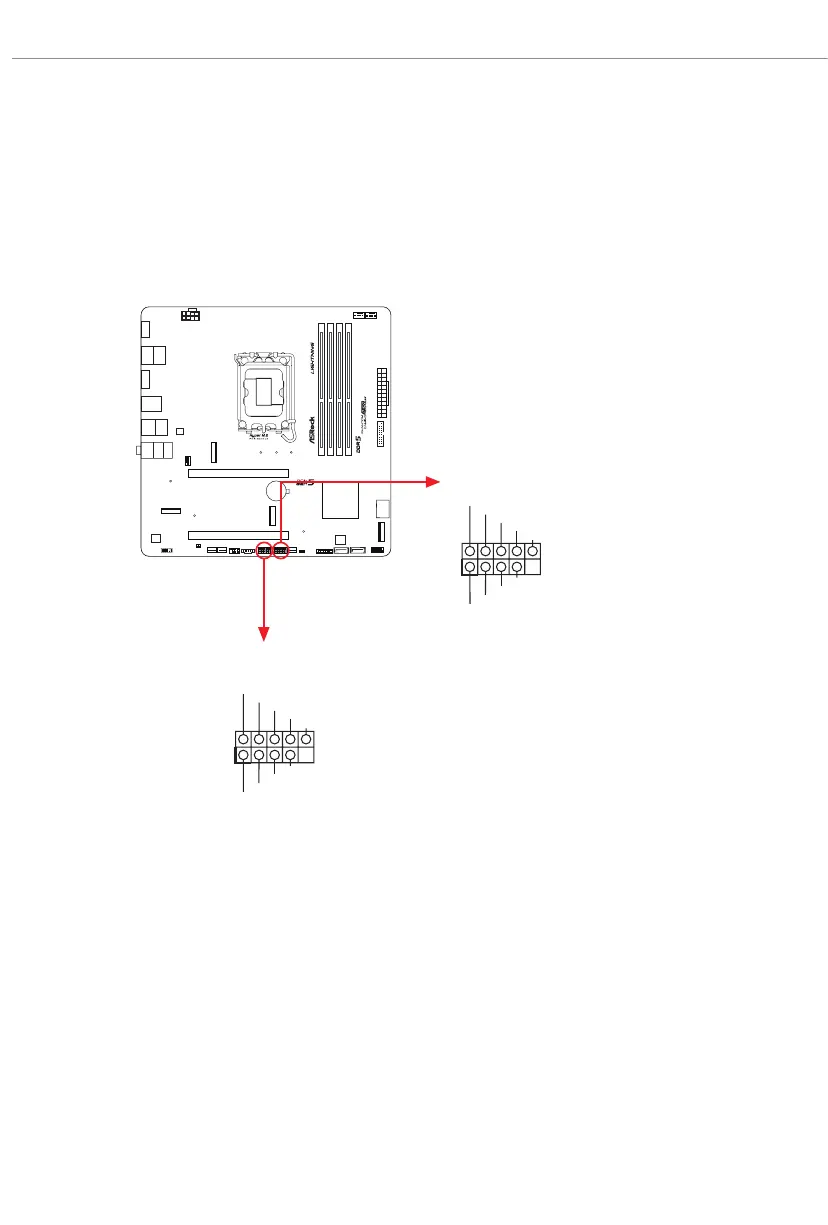

USB 2.0 Headers
(9-pin USB_3_4) (see p.6, No. 17)
(9-pin USB_5_6) (see p.6, No. 16)
ere are two headers on this motherboard. Each USB 2.0 header can support two
ports.
B7 6 0M P G
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
USB_3_4
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
USB_5_6
