B760M PG Lightning

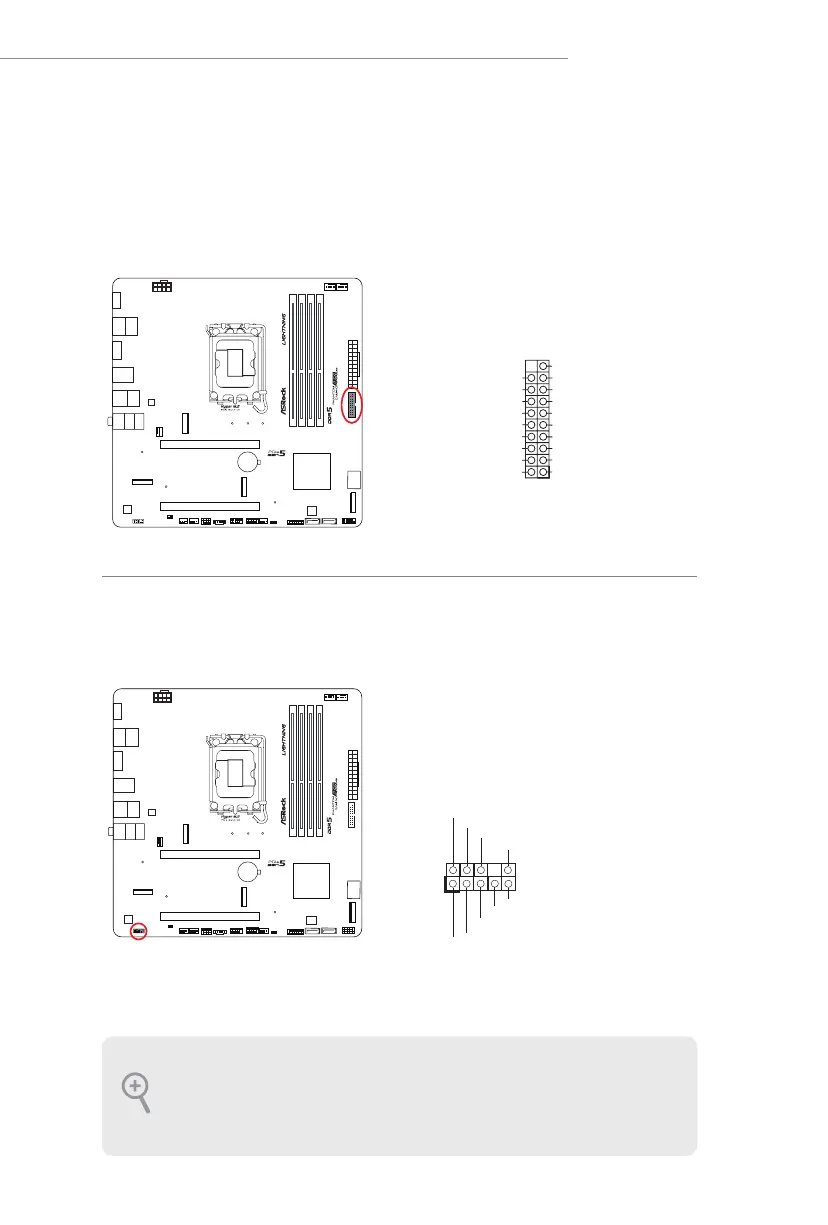

USB 3.2 Gen1 Header
(19-pin USB32_4_5) (see p.6, No. 7)
ere is one USB 3.2 Gen1 header on this motherboard. is USB 3.2 Gen1 header
can support two ports.
B7 6 0M P G
Front Panel Audio Header
(9-pin HD_AUDIO1) (see p.6, No. 23)
is header is for connecting audio devices to the front audio panel.
B7 6 0M P G
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
USB32_4_5
HD_AUDIO1
High Denition Audio supports Jack Sensing, but the panel wire on the chassis must sup-
port HDA to function correctly. Please follow the instructions in our manual and chassis
manual to install your system.
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
