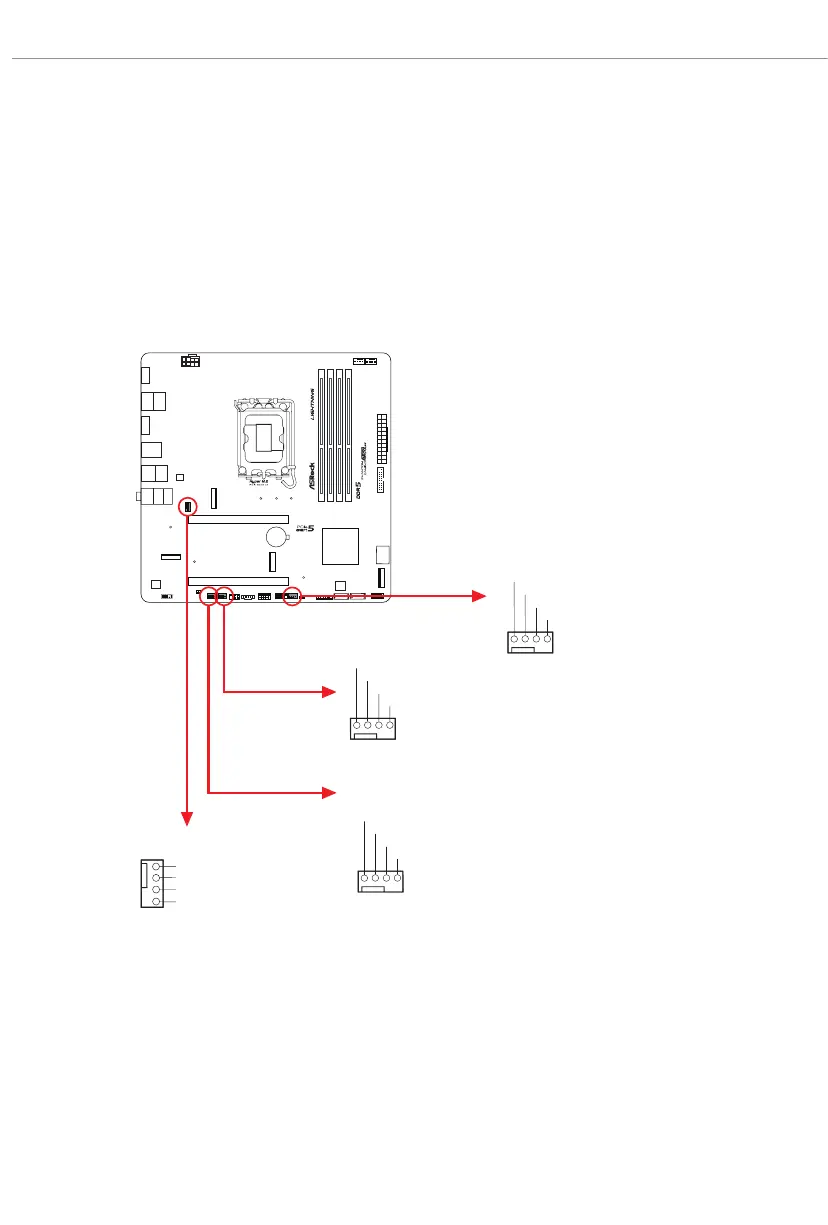

Chassis/Water Pump Fan Connectors
(4-pin CHA_FAN1/WP) (see p.6, No. 24)
(4-pin CHA_FAN2/WP) (see p.6, No. 20)
(4-pin CHA_FAN3/WP) (see p.6, No. 21)
(4-pin CHA_FAN4/WP) (see p.6, No. 15)
is motherboard provides four 4-Pin water cooling chassis fan connectors. If you
plan to connect a 3-Pin chassis water cooler fan, please connect it to Pin 1-3.
B7 6 0M P G
CHA_FAN1/WP
CHA_FAN3/WP
CHA_FAN2/WP
GND
CHA_FAN_SPEED
FAN_SPEED_CONTRO
L
FAN_VOLTAGE
1 2 3 4
CHA_FAN4/WP
GND
CHA_FAN_SPEED
FAN_SPEED_CONTRO
L
FAN_VOLTAGE
1 2 3 4
GND
CHA_FAN_SPEED
FAN_SPEED_CONTRO
L
FAN_VOLTAGE
1 2 3 4
GND
FAN_VOLTAGE
CHA_FAN_SPEED
FAN_SPEED_CONTR
OL
1
2
3
4
