B760M PG Riptide

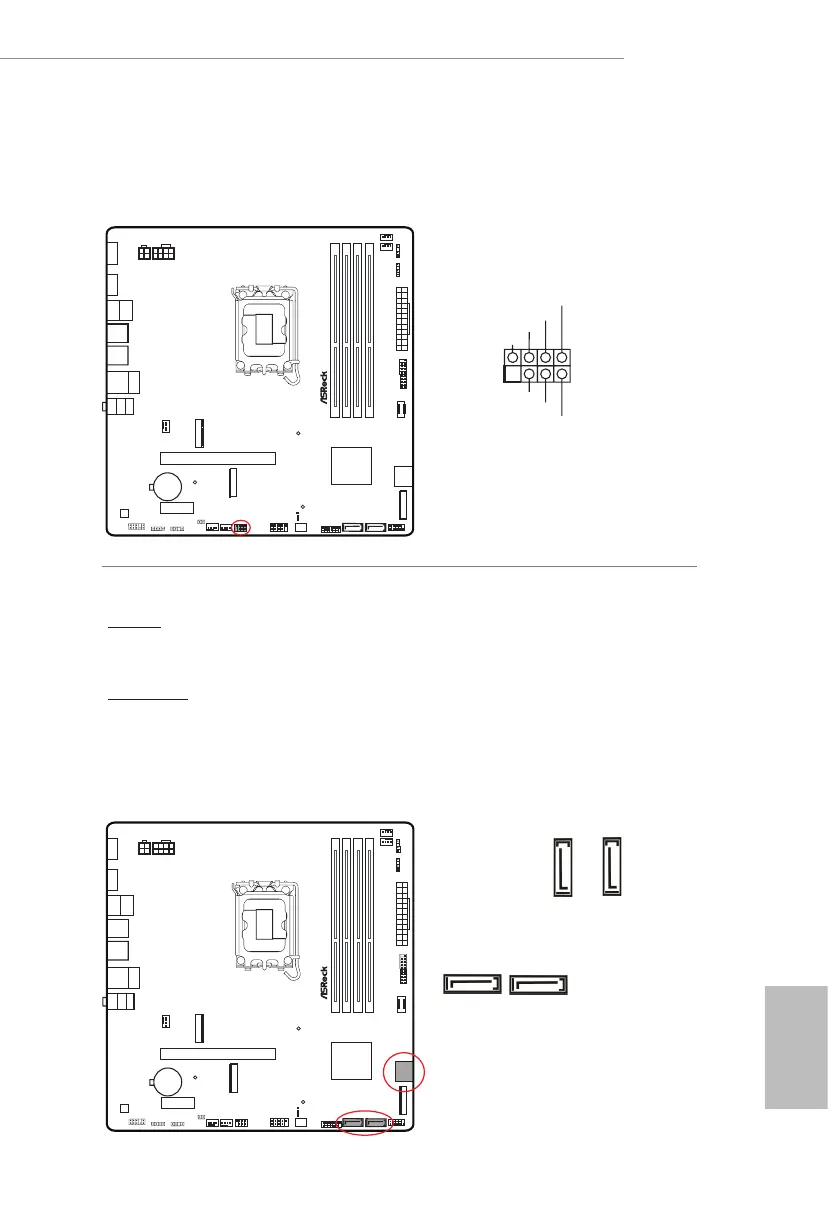

Chassis Intrusion and Speaker Header
(7-pin SPK_CI1) (see p.6, No. 19)
Please connect the chassis intrusion and the chassis speaker to this header.
Serial ATA3 Connectors
Vertical:
(SATA3_0) (see p.6, No. 15)
(SATA3_1) (see p.6, No. 14)
Right Angle:
(SATA3_2) (see p.6, No. 12) (Upper)
(SATA3_3) (see p.6, No. 12) (Lower)
ese four SATA3 connectors support SATA data cables for internal storage
devices with up to 6.0 Gb/s data transfer rate.
SPK_CI1
SATA3_1
SATA3_3
SATA3_0
SATA3_2
1
+5V
DUMMY
SIGNAL
GND
DUMMY
SPEAKER
DUMMY
