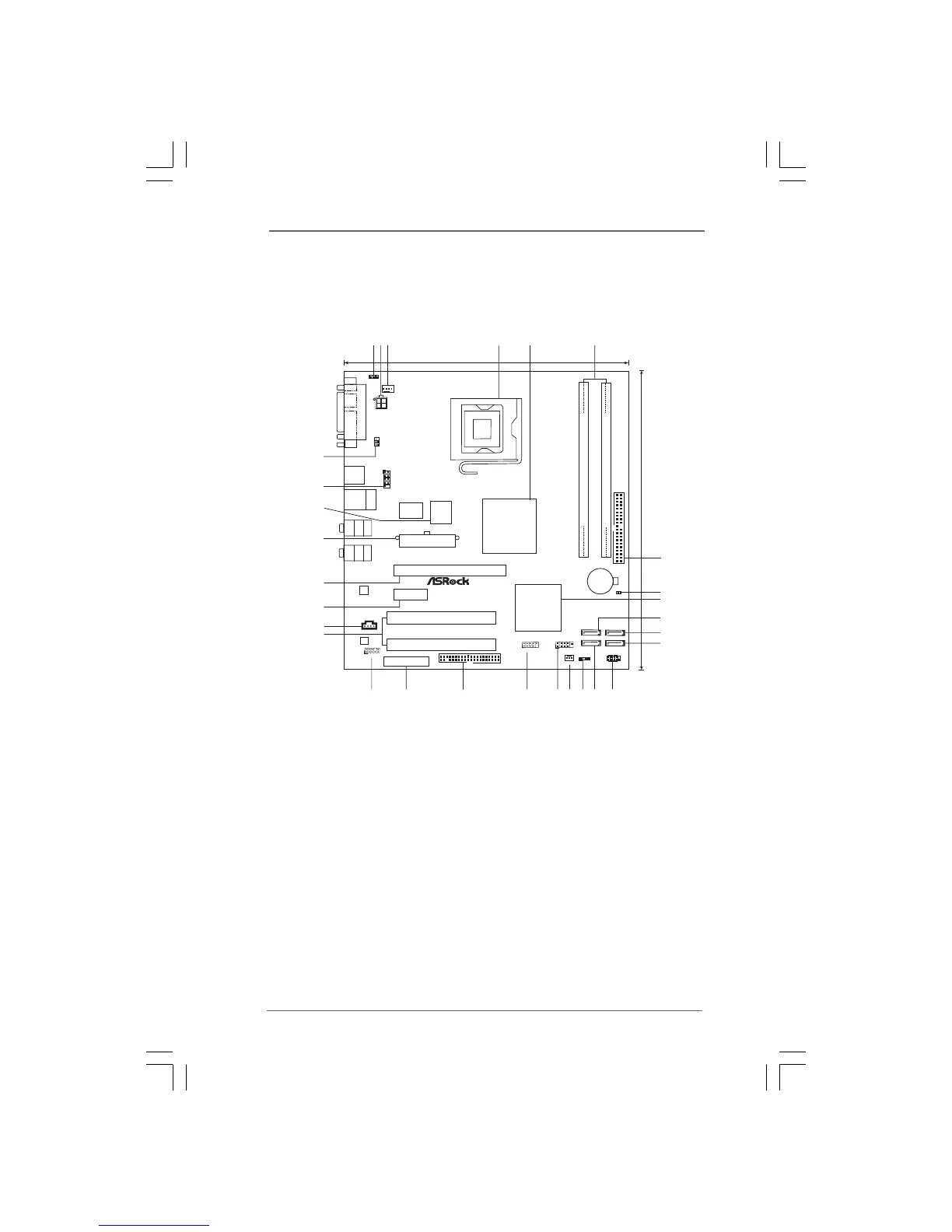

1.4 Motherboard Layout1.4 Motherboard Layout
1.4 Motherboard Layout1.4 Motherboard Layout
1.4 Motherboard Layout
1
PS2_USB_PWR1
ATXPWR1
ConRoe1333-D667
IDE1
7.1CH HD
USB2.0
CHA_FAN1
USB6_7
1
SPEAKER1
1
HD_AUDIO1
Intel
945GC A2
Chipset
IR1
1
CLRCMOS1
PANEL1
HDLED RESET
PLED PWRBTN
1
CMOS
Battery
USB4_5
1
4Mb
BIOS
CPU_FAN1
1
AUDIO
CODEC
22.9cm (9.0 in)
24.4cm (9.6 in)
ATX12V1
Top:
SIDE SPK
Center:
REAR SPK
Bottom:
CTR BASS
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
USB 2.0
T:USB0
B: USB1
Top:
RJ-45
USB 2.0
T: USB 2
B: USB3
PARALLEL PORT
VGA1
PS2
Mouse
PS2
Keyboard
Super
IO
Dual Channel
DDRII667
SATAII
FLOPPY1
1
2
4
5
7
6
8
9
10
12
1314
11
1516
17
18
19
22
23
24
25
26
28
27
3
20
21
29
FSB1333
Dual Core CPU
Presler
Conroe
RoHS
Intel
ICH7
FSB800
DDRII_1 (64/72 bit, 240-pin module)
FSB800
DDRII_2 (64/72 bit, 240-pin module)
SATAII_4
SATAII_3
SATAII_2
SATAII_1
PCI1
PCI2
PCIE1
PCIE2
HDMR1
CD1
LAN
PHY
PCI
EXPRESS
COM1
1
1 PS2_USB_PWR1 Jumper 16 Chassis Fan Connector (CHA_FAN1)
2 ATX 12V Connector (ATX12V1) 17 USB 2.0 Header (USB6_7, Blue)
3 CPU Fan Connector (CPU_FAN1) 18 USB 2.0 Header (USB4_5, Blue)
4 775-Pin CPU Socket 19 Floppy Connector (FLOPPY1)
5 North Bridge Controller 20 HDMR Slot (HDMR1)
6 2 x 240-pin DDRII DIMM Slots 21 Front Panel Audio Header (HD_AUDIO1)
(Dual Channel: DDRII_1, DDRII_2; Yellow) 22 PCI Slots (PCI1- 2)
7 IDE1 Connector (IDE1, Blue) 23 Internal Audio Connector: CD1 (Black)
8 Clear CMOS Jumper (CLRCMOS1) 24 PCI Express x1 Slot (PCIE2)
9 South Bridge Controller 25 PCI Express x16 Slot (PCIE1)
10 Third SATAII Connector (SATAII_3; Orange) 26 ATX Power Connector (ATXPWR1)
11 Fourth SATAII Connector (SATAII_4; Orange) 27 BIOS FWH Chip
12 Secondary SATAII Connector (SATAII_2; Red) 28 Serial Port Connector (COM1)
13 System Panel Header (PANEL1) 29 DeskExpress Hot Plug Detection Header
14 Primary SATAII Connector (SATAII_1; Red) (IR1)
15 Chassis Speaker Header (SPEAKER 1)
