BIOS SETUP UTILITY
IDE Configuration
Set [Compatible]
when Legacy OS
(MS-DOS, Win NT)
device is used.
Set [Enhanced]
when Native OS
(Win2000 / XP)
is used.
v02.54 (C) Copyright 1985-2005, American Megatrends, Inc.
Advanced
ATA/IDE Configuration
[Enhanced]
Select Screen
Select Item
+- Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
Select Screen
Select Item
+- Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
IDE1 Master
IDE1 Slave
SATAII 1
SATAII 2
SATAII 3
SATAII 4
[Hard Disk]
[Not Detected]
[Not Detected]
[Not Detected]
[ATAPI CDROM]
[Not Detected]
3.3.43.3.4
3.3.43.3.4
3.3.4
IDE ConfigurationIDE Configuration
IDE ConfigurationIDE Configuration

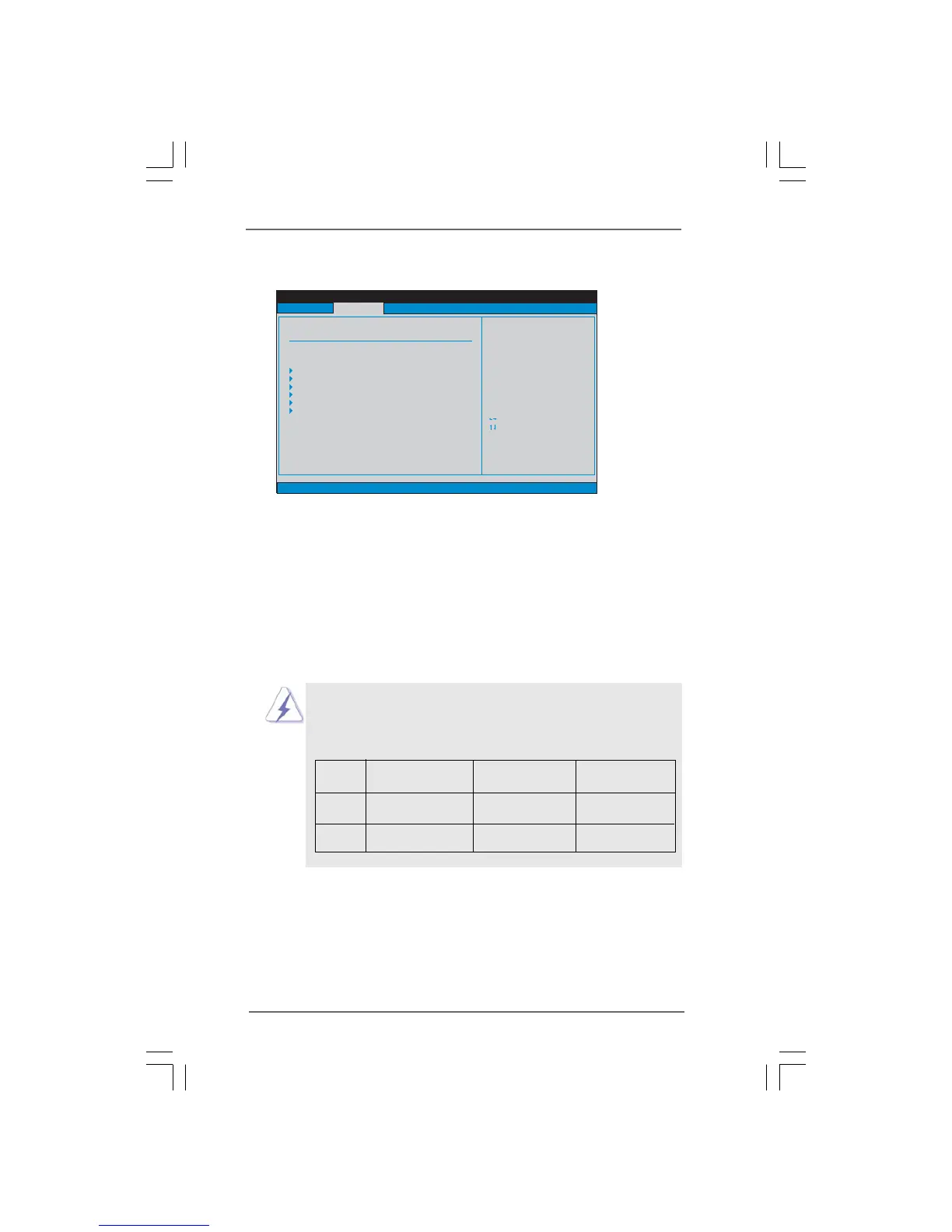

IDE Configuration
ATA/IDE Configuration
Please select [Compatible] when you install legacy OS (Windows NT). If
native OS (Windows 2000 / XP) is installed, please select [Enhanced].
When [Compatible] is selected
Combined Option
It allows you to select between [SATA 1, SATA 2, SATA 3, SATA 4], [SATA
1, SATA 3, IDE 1], and [IDE 1, SATA 2, SATA 4]. If it is set to [SATA 1, SATA
3, IDE 1], then SATAII_2, SATAII_4 will not work. Likewise, if it is set to [IDE
1, SATA 2, SATA 4], then SATAII_1, SATAII_3 will not work.
Because Intel
®
ICH7 south bridge only supports four IDE devices
under legacy OS (Windows NT), you have to choose [SATA 1, SATA 2,
SATA 3, SATA 4], [SATA 1, SATA 3, IDE 1], or [IDE 1, SATA 2, SATA 4]
when the installed device is used with legacy OS.
[SATA 1, SATA 2, [SATA 1, SATA 3, [IDE 1, SATA 2,
SATA 3, SATA 4] IDE 1] SATA 4]
Master SATAII 1, SATAII 2 SATAII 1 SATAII 2
Slave SATAII 3, SATAII 4 SATAII 3 SATAII 4
IDE Device Configuration
You may set the IDE configuration for the device that you specify. We will
use the “Primary IDE Master” as the example in the following instruction.
To Next Page
