ASROCK Fatal1ty 990FX Killer Quick Installation Guide

22
English

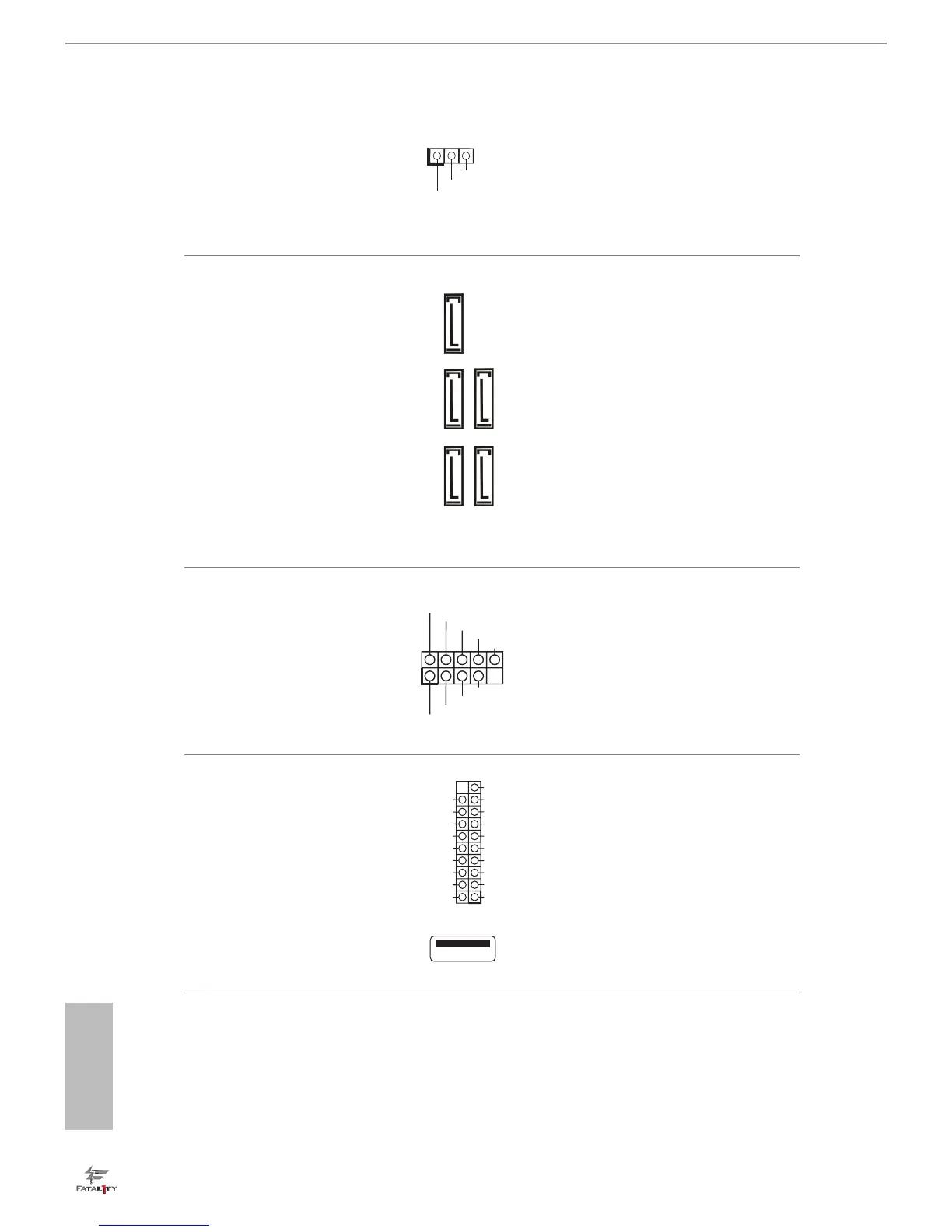

Power LED Header
(3-pin PLED1)
(see p.1, No. 18)
Please connect the chassis
power LED to this header
to indicate the system’s
power status.
Serial ATA3 Connectors
(SATA3_1:
see p.1, No. 17)
(SATA3_2:
see p.1, No. 16)
(SATA3_3:
see p.1, No. 14)
(SATA3_4:
see p.1, No. 15)
(SATA3_5:
see p.1, No. 12)
ese ve SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
USB 2.0 Headers
(9-pin USB6_7)
(see p.1, No. 9)
(9-pin USB8_9)
(see p.1, No. 8)
Besides six USB 2.0 ports
on the I/O panel, there
are two headers on this
motherboard. Each USB
2.0 header can support
two ports.
USB 3.0 Headers
(19-pin USB3_5_6)
(see p.1, No. 10)
(USB3_7)
(see p.1, No. 11)
Besides four USB 3.0 ports
on the I/O panel, there is
one header and one port
on this motherboard.
Each USB 3.0 header can
support two ports.
1
PLED+
PLED+
PLED-
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
SATA3_5SATA3_1 SATA3_3
SATA3_2 SATA3_4
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+

ASROCK Fatal1ty 990FX Killer Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1066, 1333, 1600, 2100, 2450 MHz
System bus rate	5.2 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
Processor thermal power (max)	140 W
Processor system buses supported	2600 MHz
USB 2.0 connectors	2
Number of COM connectors	1
Number of SATA connectors	5
Number of Parallel ATA connectors	0
RAID levels	0, 1, 0+1, 5, JBOD
Supported storage drive interfaces	SATA III
USB 2.0 ports quantity	6
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC1150
Cooling type	Passive
Certification	FCC, CE, WHQL, ErP, EuP
Component for	PC
Motherboard chipset	AMD 990FX
PC health monitoring	FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard southbridge	AMD SB950
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
On-board graphics card	No
Parallel processing technology support	3-Way CrossFireX, Quad-GPU CrossFireX, Quad-GPU SLI
PCI Express x16 (Gen 2.x) slots	3
BIOS type	UEFI AMI
ACPI version	1.1
BIOS memory size	64 Mbit
Trial software	Start8
Cables included	SATA
Bundled software	Google Chrome, XSplit, Killer Network Manager

Weight and Dimensions

Width	- mm
