ASROCK Fatal1ty 990FX Killer Quick Installation Guide

Fatal1ty 990FX Killer Series
23
English

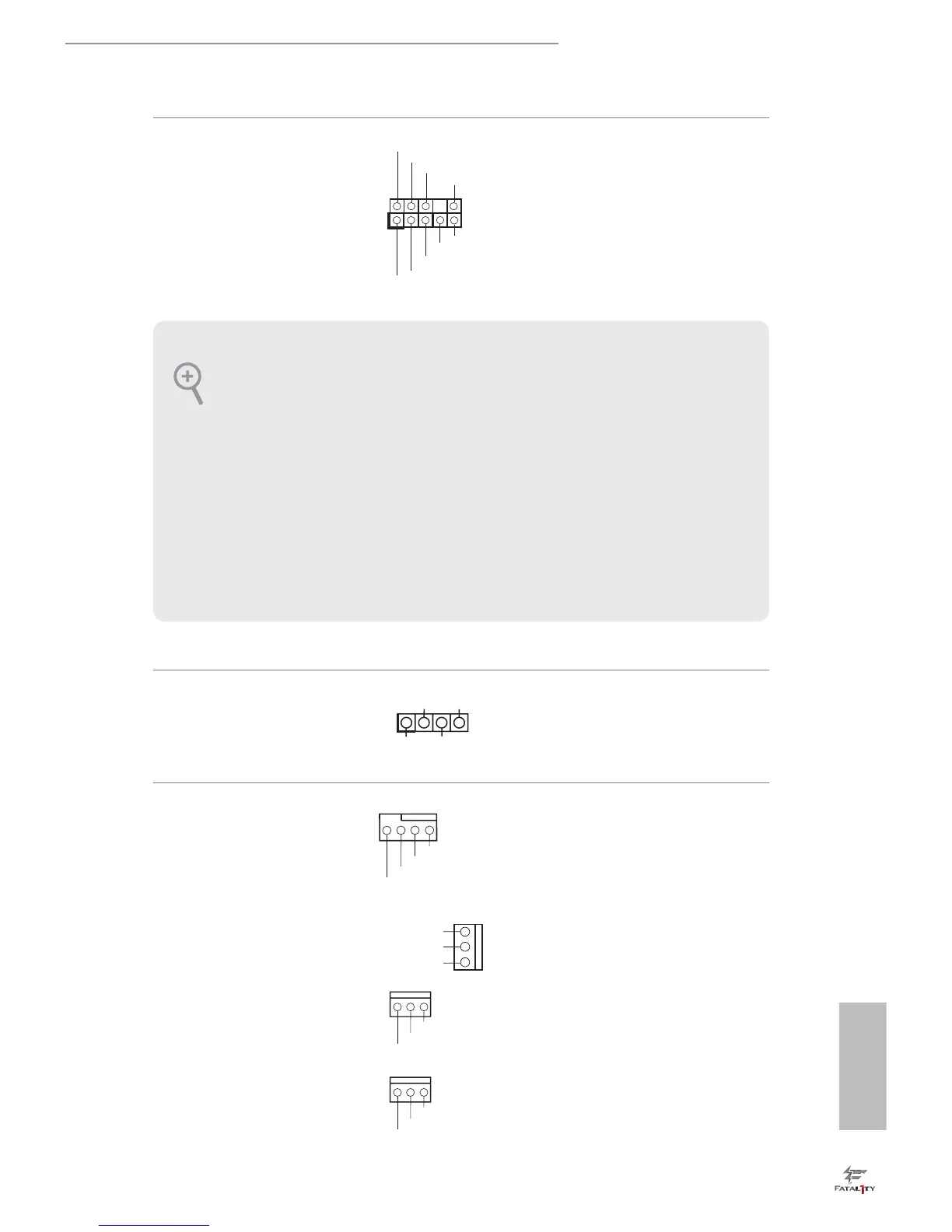

Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1, No. 27)
is header is for
connecting audio devices
to the front audio panel.
Chassis Speaker Header
(4-pin SPEAKER1)
(see p.1, No. 19)
Please connect the chassis
speaker to this header.
Chassis and Power Fan
Connectors
(4-pin CHA_FAN1)
(see p.1, No. 29)
(3-pin CHA_FAN2)
(see p.1, No. 1)
(3-pin CHA_FAN3)
(see p.1, No. 22)
(3-pin PWR_FAN1)
(see p.1, No. 28)
Please connect fan cables
to the fan connectors and
match the black wire to
the ground pin.
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
1. High Denition Audio supports Jack Sensing, but the panel wire on the chassis must
support HDA to function correctly. Please follow the instructions in our manual and
chassis manual to install your system.
2. If you use an AC’97 audio panel, please install it to the front panel audio header by
the steps below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don’t need to
connect them for the AC’97 audio panel.
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel
and adjust “Recording Volume”.
1
+5V
DUMMY
DUMMY
SPEAKER
GND
+12V
FAN_SPEED
FAN_SPEED
FAN_SPEED_CONTROL
+12V
GND
GND
+12V
FAN_SPEED
GND
+
12V
FAN_SPEED

ASROCK Fatal1ty 990FX Killer Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1066, 1333, 1600, 2100, 2450 MHz
System bus rate	5.2 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
Processor thermal power (max)	140 W
Processor system buses supported	2600 MHz
USB 2.0 connectors	2
Number of COM connectors	1
Number of SATA connectors	5
Number of Parallel ATA connectors	0
RAID levels	0, 1, 0+1, 5, JBOD
Supported storage drive interfaces	SATA III
USB 2.0 ports quantity	6
Ethernet interface type	Gigabit Ethernet
Audio chip	Realtek ALC1150
Cooling type	Passive
Certification	FCC, CE, WHQL, ErP, EuP
Component for	PC
Motherboard chipset	AMD 990FX
PC health monitoring	FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard southbridge	AMD SB950
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
On-board graphics card	No
Parallel processing technology support	3-Way CrossFireX, Quad-GPU CrossFireX, Quad-GPU SLI
PCI Express x16 (Gen 2.x) slots	3
BIOS type	UEFI AMI
ACPI version	1.1
BIOS memory size	64 Mbit
Trial software	Start8
Cables included	SATA
Bundled software	Google Chrome, XSplit, Killer Network Manager

Weight and Dimensions

Width	- mm
