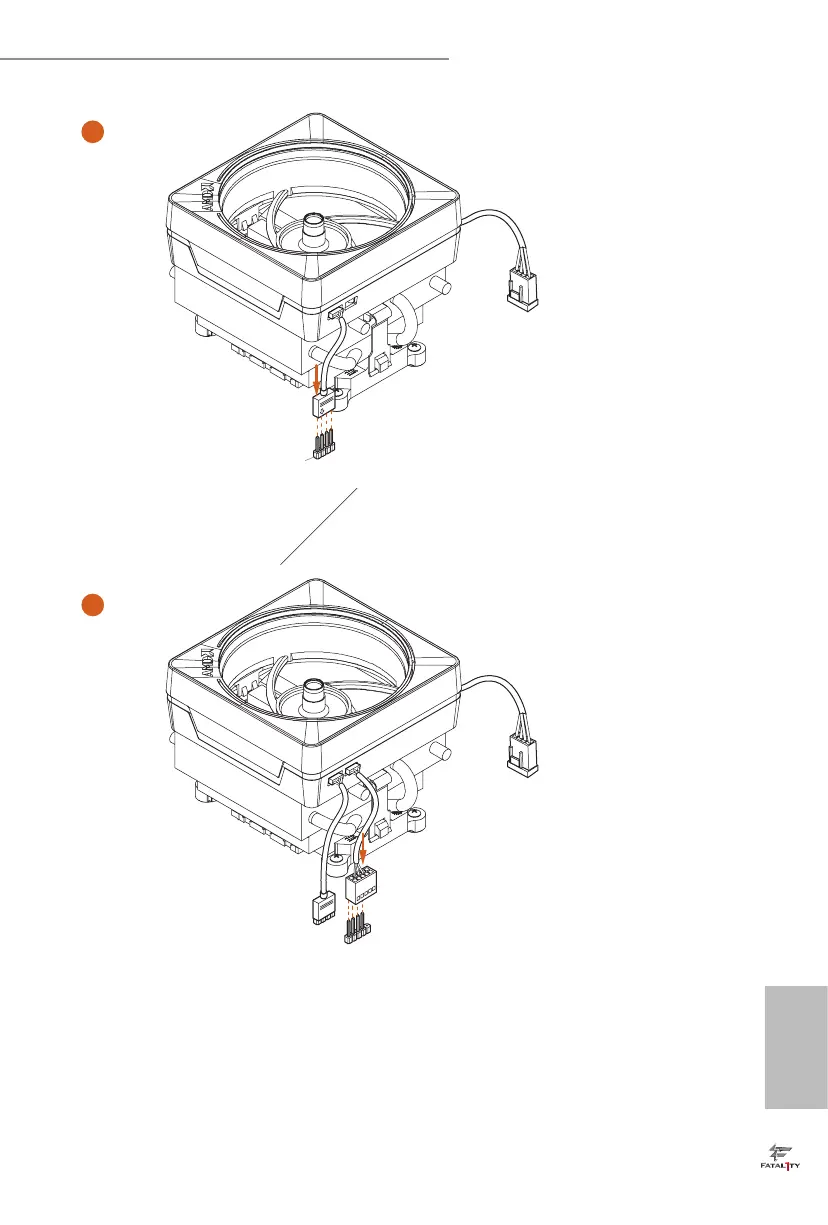

Please note that only one cable should be used at a time in this step.
If you select AMD_FAN_LED1, please install ASRock utility "ASRock RGB LED".
If you select USB connector, please install AMD utility "SR3 Settings Soware".
*e diagram shown here are for reference only. Please refer to page 31 for the orientation of AMD Fan
LED Header (AMD_FAN_LED1) and page 29 for the orientation of AMD LED Fan USB Header (USB_5).
7
6
C
P
U
_
FA
N
1
AM
D
_
FA
N
_
L
E
D
1
C
P
U
_
FA
N
1
AM
D
_
FA
N
_
L
E
D
1
U
S
B
_
5
or
+12V

ASROCK Fatal1ty AB350 Gaming-ITX/ac Series Specifications

General

Form Factor	Mini-ITX
Chipset	AMD B350
CPU Socket	AM4
Maximum Memory	32GB
PCIe Slots	1 x PCIe 3.0 x16
Audio	7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
RAID Support	RAID 0, 1, 10
HDMI	1 x HDMI
DisplayPort	1 x DisplayPort
Memory Slots	2 x DIMM
Memory Speed	DDR4 3200+(OC)
Storage Interface	4 x SATA3, 1 x Ultra M.2
Network	Gigabit LAN 10/100/1000 Mb/s
Bluetooth	Bluetooth 4.2
USB Ports	2 x USB 2.0, 6 x USB 3.1 Gen1
