ASROCK Fatal1ty AB350 Gaming-ITX/ac Series User Manual

27
English
Fatal1ty AB350 Gaming-ITX/ac Series
2.5 Jumpers Setup

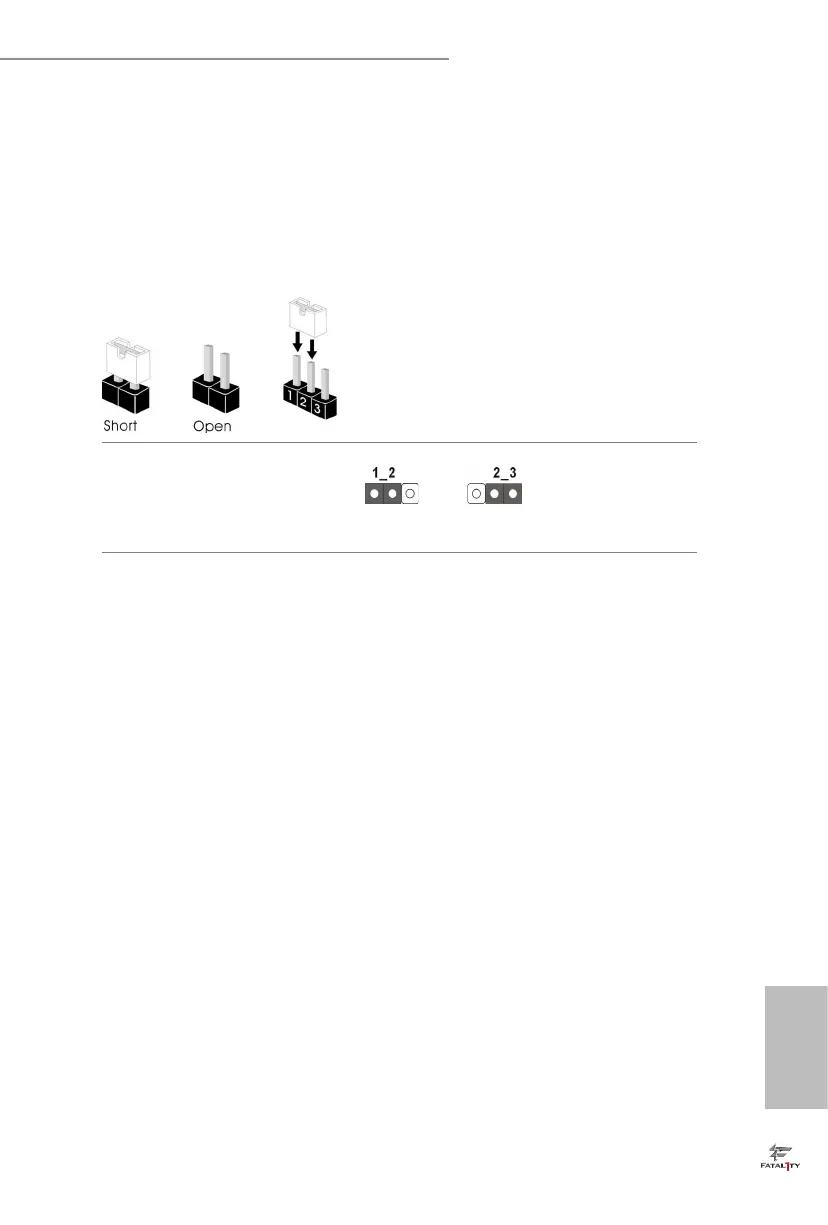

e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper
is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”
when a jumper cap is placed on these 2 pins.
Clear CMOS Jumper
(CLRMOS1)
(see p.1, No. 16)
CLRMOS1 allows you to clear the data in CMOS. To clear and reset the system
parameters to default setup, please turn o the computer and unplug the power
cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to
short pin2 and pin3 on CLRMOS1 for 5 seconds. However, please do not clear the
CMOS right aer you update the BIOS. If you need to clear the CMOS when you
just nish updating the BIOS, you must boot up the system rst, and then shut it
down before you do the clear-CMOS action. Please be noted that the password,
date, time, and user default prole will be cleared only if the CMOS battery is
removed.
Clear CMOSDefault

ASROCK Fatal1ty AB350 Gaming-ITX/ac Series Specifications

General

Form Factor	Mini-ITX
Chipset	AMD B350
CPU Socket	AM4
Maximum Memory	32GB
PCIe Slots	1 x PCIe 3.0 x16
Audio	7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
RAID Support	RAID 0, 1, 10
HDMI	1 x HDMI
DisplayPort	1 x DisplayPort
Memory Slots	2 x DIMM
Memory Speed	DDR4 3200+(OC)
Storage Interface	4 x SATA3, 1 x Ultra M.2
Network	Gigabit LAN 10/100/1000 Mb/s
Bluetooth	Bluetooth 4.2
USB Ports	2 x USB 2.0, 6 x USB 3.1 Gen1
