ASROCK Fatal1ty AB350 Gaming-ITX/ac Series User Manual

31
English
Fatal1ty AB350 Gaming-ITX/ac Series

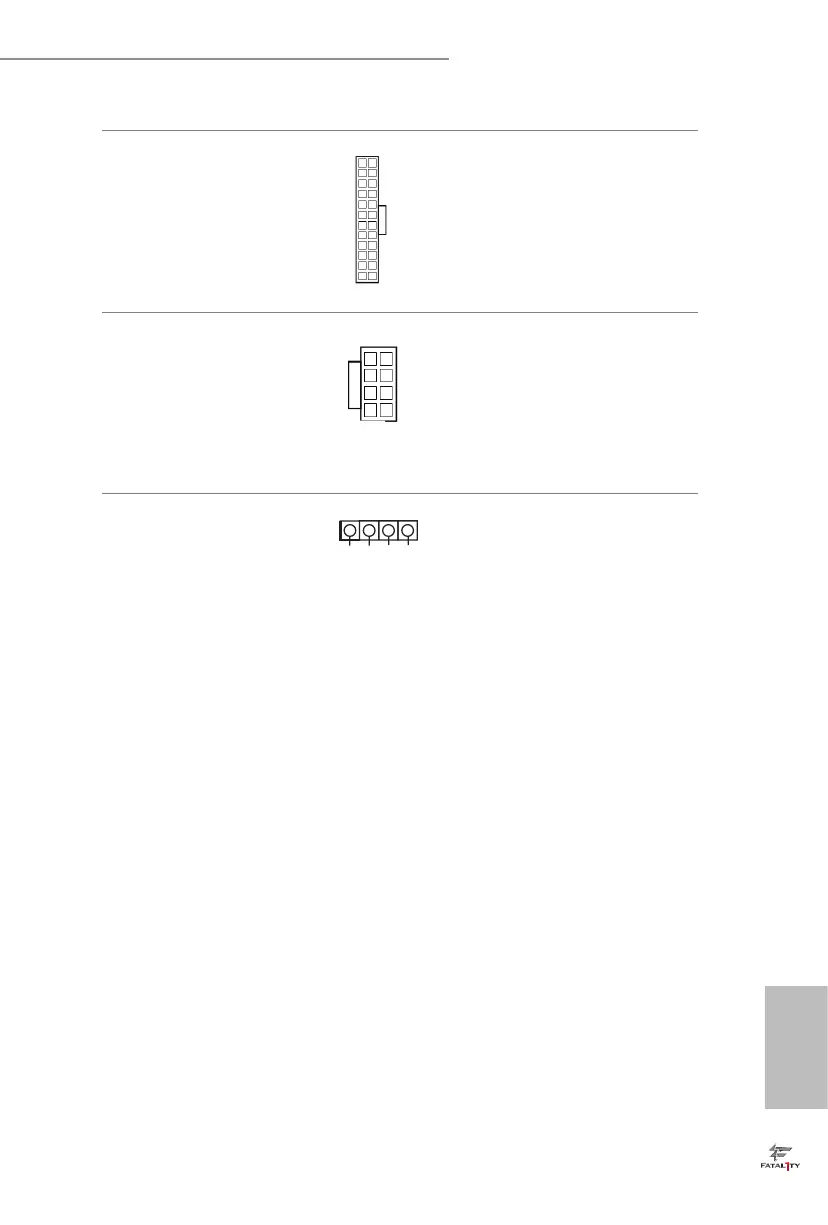

ATX Power Connector
(24-pin ATXPWR1)
(see p.1, No. 7)
is motherboard pro-
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.
ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.1, No. 1)
is motherboard
provides a 8-pin ATX 12V
power connector. To use a
4-pin ATX power supply,
please plug it along Pin 1
and Pin 5.
AMD FAN LED Header
(4-pin AMD_FAN_
LED1)
(see p.1, No. 3)
AMD FAN LED Header is used
to connect RGB LED
extension cable that comes with
AMD heatsink. e cable
connection allows users to choose
from various LED lighting
eects.
Caution: Never install the FAN
LED cable in the wrong orienta-
tion; otherwise, the cable may
be damaged.
12
1
24
13
12V G R B
1
5
8
1
4

ASROCK Fatal1ty AB350 Gaming-ITX/ac Series Specifications

General

Form Factor	Mini-ITX
Chipset	AMD B350
CPU Socket	AM4
Maximum Memory	32GB
PCIe Slots	1 x PCIe 3.0 x16
Audio	7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
RAID Support	RAID 0, 1, 10
HDMI	1 x HDMI
DisplayPort	1 x DisplayPort
Memory Slots	2 x DIMM
Memory Speed	DDR4 3200+(OC)
Storage Interface	4 x SATA3, 1 x Ultra M.2
Network	Gigabit LAN 10/100/1000 Mb/s
Bluetooth	Bluetooth 4.2
USB Ports	2 x USB 2.0, 6 x USB 3.1 Gen1
