ASROCK Fatal1ty AB350 Gaming-ITX/ac Series User Manual

English
4

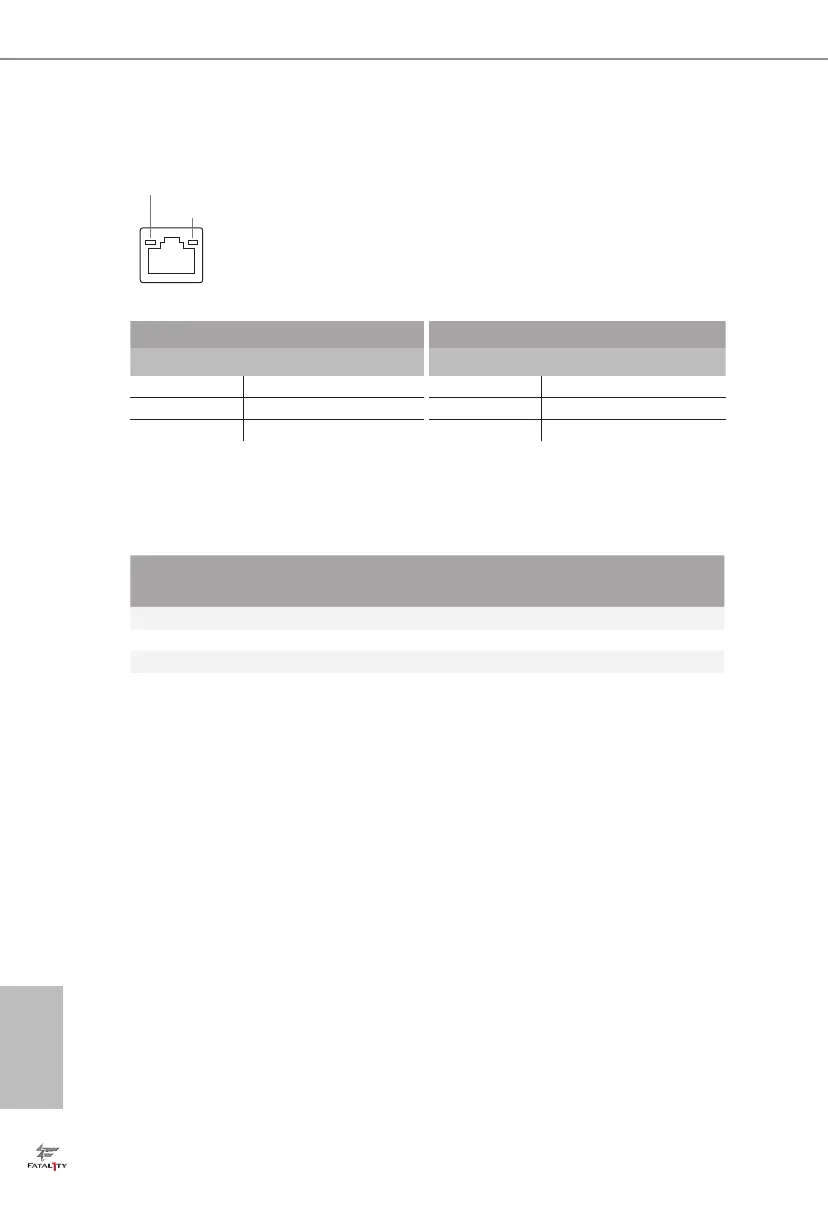

* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See the table below
for connection details in accordance with the type of speaker you use.
Audio Output
Channels
Front Speaker
(No. 8)
Rear Speaker
(No. 6)
Central / Bass
(No. 5)
Line In
(No. 7)
2 V -- -- --
4 V V -- --
6 V V V --
8 V V V V
ACT/LINK LED
SPEED LED
LAN Port

ASROCK Fatal1ty AB350 Gaming-ITX/ac Series Specifications

General

Form Factor	Mini-ITX
Chipset	AMD B350
CPU Socket	AM4
Maximum Memory	32GB
PCIe Slots	1 x PCIe 3.0 x16
Audio	7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
RAID Support	RAID 0, 1, 10
HDMI	1 x HDMI
DisplayPort	1 x DisplayPort
Memory Slots	2 x DIMM
Memory Speed	DDR4 3200+(OC)
Storage Interface	4 x SATA3, 1 x Ultra M.2
Network	Gigabit LAN 10/100/1000 Mb/s
Bluetooth	Bluetooth 4.2
USB Ports	2 x USB 2.0, 6 x USB 3.1 Gen1
