ASROCK Fatal1ty B360 Gaming K4 Series User Manual

English
1
Fatal1ty B360 Gaming K4 Series

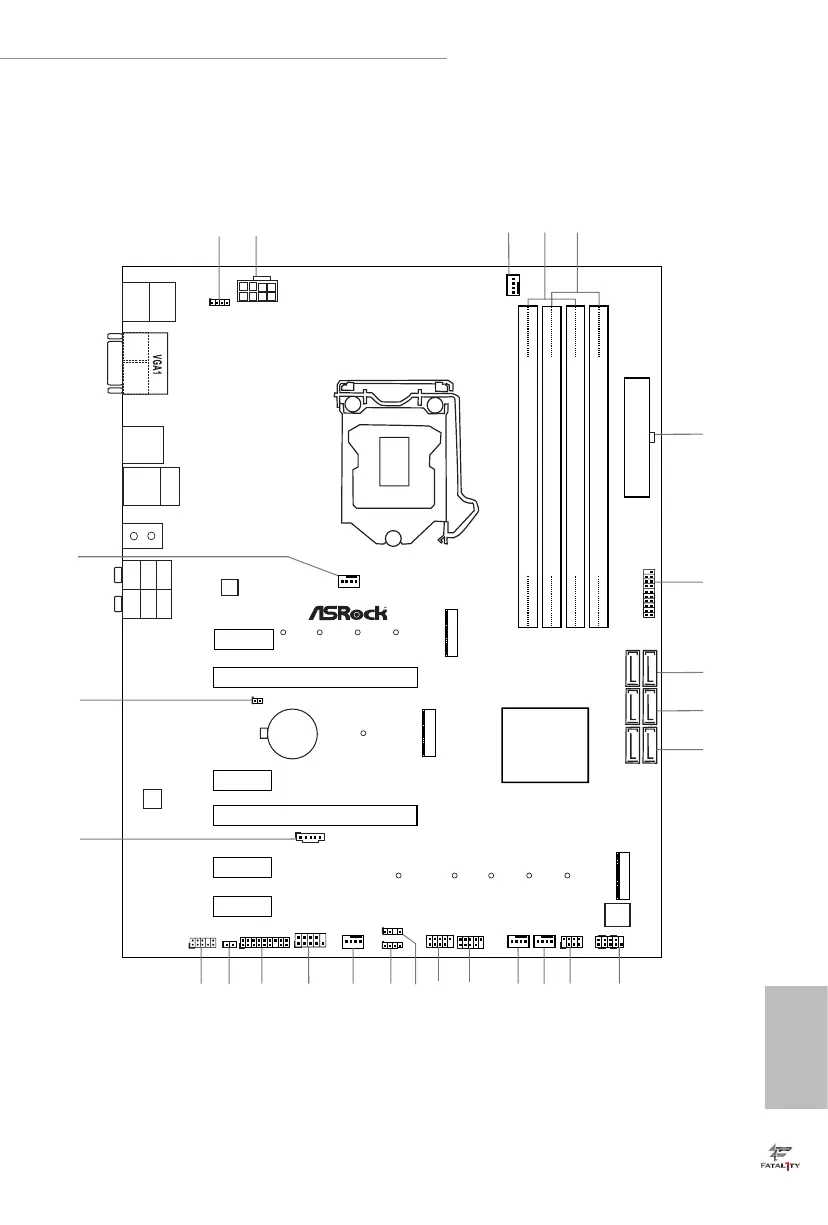

Motherboard Layout
Intel
B360
DDR4_A2 (64 bit, 288-pin module)
DDR4_A1 (64 bit, 288-pin module)
DDR4_B2 (64 bit, 288-pin module)
DDR4_B1 (64 bit, 288-pin module)
ATX 12V1
PCIE2
Top:
RJ-45
Top:
Central/Bass
Cen ter:
REA R SPK
Top:
LIN E IN
Cen ter:
FRO NT
Bot tom:
Opt ical
SPD IF
Bot tom:
MIC I N
PCIE4
HDLED RESET
PLED PWRBTN
PANEL1
1
1
SPK_PLED1
COM1
1
1
HD_AUDIO1
B360 Gaming K4
SATA_ 2_3
SATA_ 0_1
PCIE1
RoHS
6
8
9
10
USB_5_6
1
16
USB_3_4
1
15
26
24
SATA_ 4_5
2
5
4
23
11
PS2
Keyb oar d
/Mou se
CMOS
Battery
PCIE3
M2_2
M2_1
20 1213
CPU_FAN1
18
1
TPMS1
PCIE5
M2_3
CT1
Ultra M.2
PCIe Gen3 x4
FATAL TY1
CHA_FAN3/
WP
CPU_FAN2/
WP
3
1
21
CLRMOS1
1
22
LAN
AUDIO
CODEC
Ultra M.2
PCIe Gen3 x4
USB 3.1 Gen1
T: USB1
B: USB2
USB 3.1 Gen2
T: USB31_TA_1
B: USB31_TC_1
1
BIOS
ROM
14
1
CI1
T B1
1
25
USB 2. 0
T: USB1
B: USB2
DISPLAY1
HDMI1
RGB_LED1
1
ADDR_LED1
1
1719
7
USB 3_3_4
1
PCIE6
CHA_FAN2/
WP
CHA_FAN1/
WP
RGB_LED2
ATXPWR1

ASROCK Fatal1ty B360 Gaming K4 Series Specifications

General

Chipset	Intel B360
CPU Socket	LGA 1151
Maximum Memory	64 GB
SATA 6Gb/s Ports	6
M.2 Slots	2
Form Factor	ATX
RAID Support	RAID 0, 1, 5, 10
Memory Slots	4
Memory Speed	DDR4 2666/2400/2133 MHz
PCIe 3.0 x16 Slots	2
PCIe 3.0 x1 Slots	3
USB 3.1 Gen1 Ports	6
USB 3.1 Gen2 Ports	2
USB 2.0 Ports	6
Audio	Realtek ALC892
LAN	Intel I219V
