ASROCK Fatal1ty FM2A88X Plus Killer User Manual

4
PB
English
* It is recommended to install the USB Keyboard/Mouse cable to USB 2.0 ports (USB_1_2
and USB_3_4) instead of USB 3.0 ports.

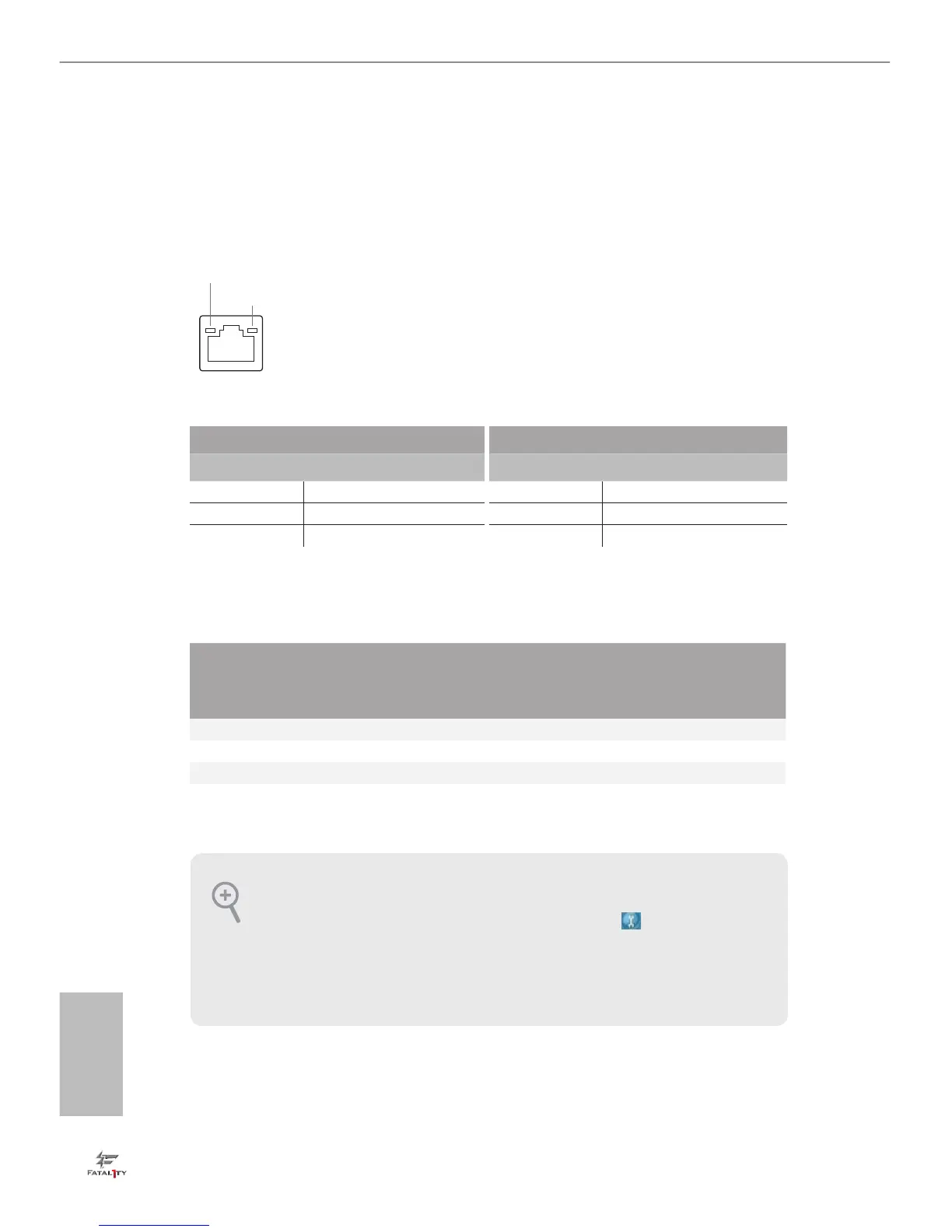

** There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indica-
tions.
Activity / Link LED Speed LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
*** If you use a 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See
the table below for connection details in accordance with the type of speaker you use.
Audio Output
Channels
Front
Speaker
(No. 9)
Rear Speaker
(No. 7)
Central / Bass
(No. 6)
Line In or
Side Speaker
(No. 8)
2 V -- -- --
4 V V -- --
6 V V V --
8 V V V V
ACT/LINK LED
SPEED LED
LAN Port
To enable Multi-Streaming, you need to connect a front panel audio cable to
the front panel audio header. After restarting your computer, you will nd the
“Mixer” tool on your system. Please select “Mixer ToolBox” , click “Enable
playback multi-streaming”, and click “ok”. Choose “2CH”, “4CH”, “6CH”, or
“8CH” and then you are allowed to select “Realtek HDA Primary output” to
use the Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek
HDA Audio 2nd output” to use the front panel audio.

ASROCK Fatal1ty FM2A88X Plus Killer Specifications

General

Socket	FM2+
Chipset	AMD A88X
Max Memory	64GB
PCI Express 3.0 x16	1
PCI Express 2.0 x16	1
PCI Express x1	2
PCI Slots	2
SATA 6Gb/s	8
Audio Chipset	Realtek ALC1150
Audio Channels	7.1
Max. LAN Speed	10/100/1000Mbps
Form Factor	ATX
Memory Support	DDR3 2400+(OC)/2133/1866/1600/1333
SATA RAID	0, 1, 5, 10
LAN Chipset	Qualcomm Atheros Killer E2200
Video Ports	HDMI, DVI-D, D-Sub
USB 2.0 Ports	8 (4 front, 4 rear)
Memory Slots	4 x DIMM
USB 3.0 Ports	6 (2 front, 4 rear)
