ASROCK Fatal1ty FM2A88X Plus Killer User Manual

2
3
English
Fatal1ty FM2A88X+ Killer Series

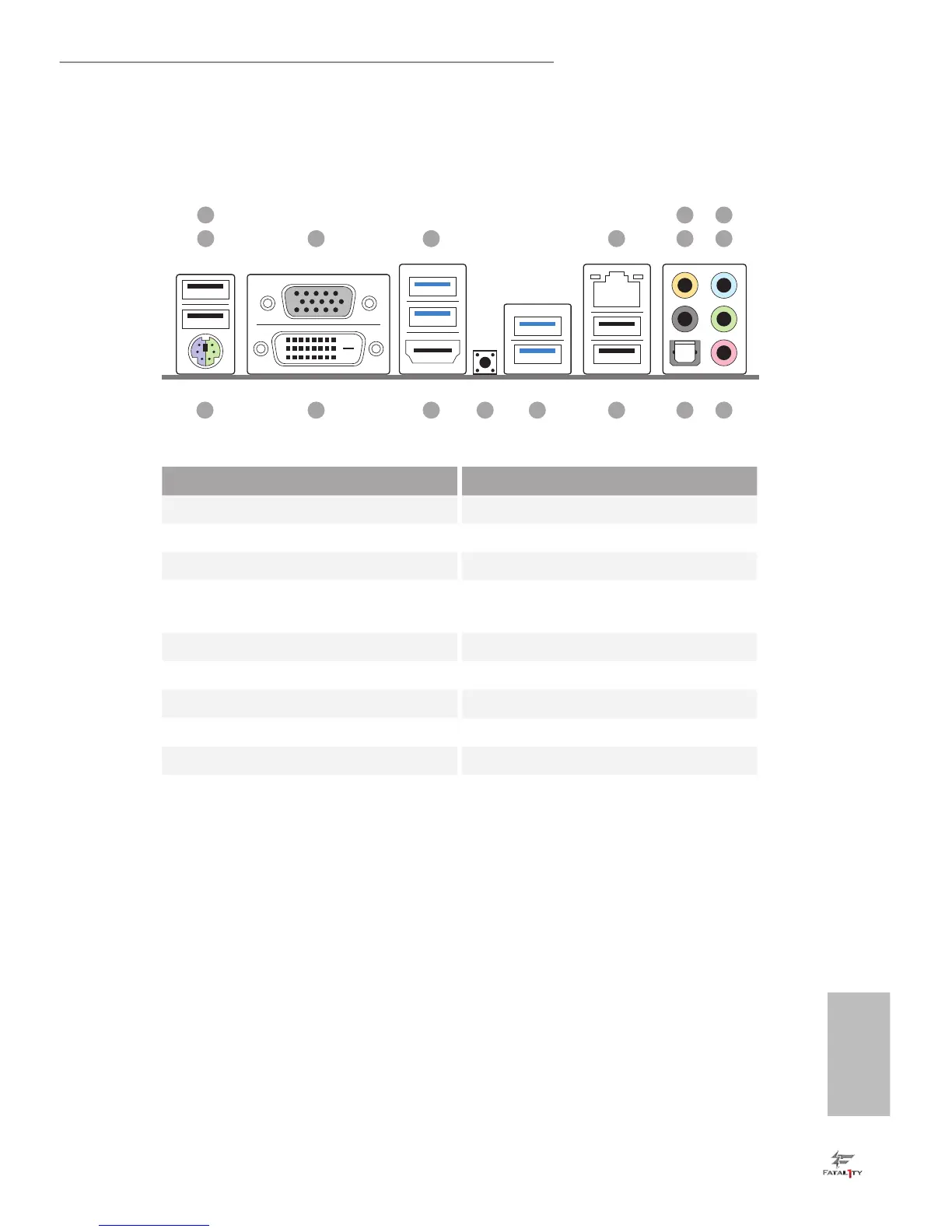

I/O Panel
No. Description No. Description
1 Fatal1ty Mouse Port (USB_1)* 10 Microphone (Pink)
2 USB 2.0 Port (USB_2)* 11 Optical SPDIF Out Port
3 D-Sub Port 12 USB 2.0 Ports (USB_3_4)
4
USB 3.0 Ports (USB3_1_2)
(AMD A88X (Bolton-D4))
13
USB 3.0 Ports (USB3_3_4)
(ASMedia ASM1042A)
5 LAN RJ-45 Port** 14 Clear CMOS Button
6 Central / Bass (Orange) 15 HDMI Port
7 Rear Speaker (Black) 16 DVI-D Port
8 Line In (Light Blue) 17 PS/2 Mouse/Keyboard Port
9 Front Speaker (Lime)***
1011121314151617
3 4 75
6
2
1
9
8

ASROCK Fatal1ty FM2A88X Plus Killer Specifications

General

Socket	FM2+
Chipset	AMD A88X
Max Memory	64GB
PCI Express 3.0 x16	1
PCI Express 2.0 x16	1
PCI Express x1	2
PCI Slots	2
SATA 6Gb/s	8
Audio Chipset	Realtek ALC1150
Audio Channels	7.1
Max. LAN Speed	10/100/1000Mbps
Form Factor	ATX
Memory Support	DDR3 2400+(OC)/2133/1866/1600/1333
SATA RAID	0, 1, 5, 10
LAN Chipset	Qualcomm Atheros Killer E2200
Video Ports	HDMI, DVI-D, D-Sub
USB 2.0 Ports	8 (4 front, 4 rear)
Memory Slots	4 x DIMM
USB 3.0 Ports	6 (2 front, 4 rear)
