ASROCK FATAL1TY P67 PERFORMANCE - ANNEXE 955 User Manual

14
Fatal1ty P67 Performance Series Motherboard

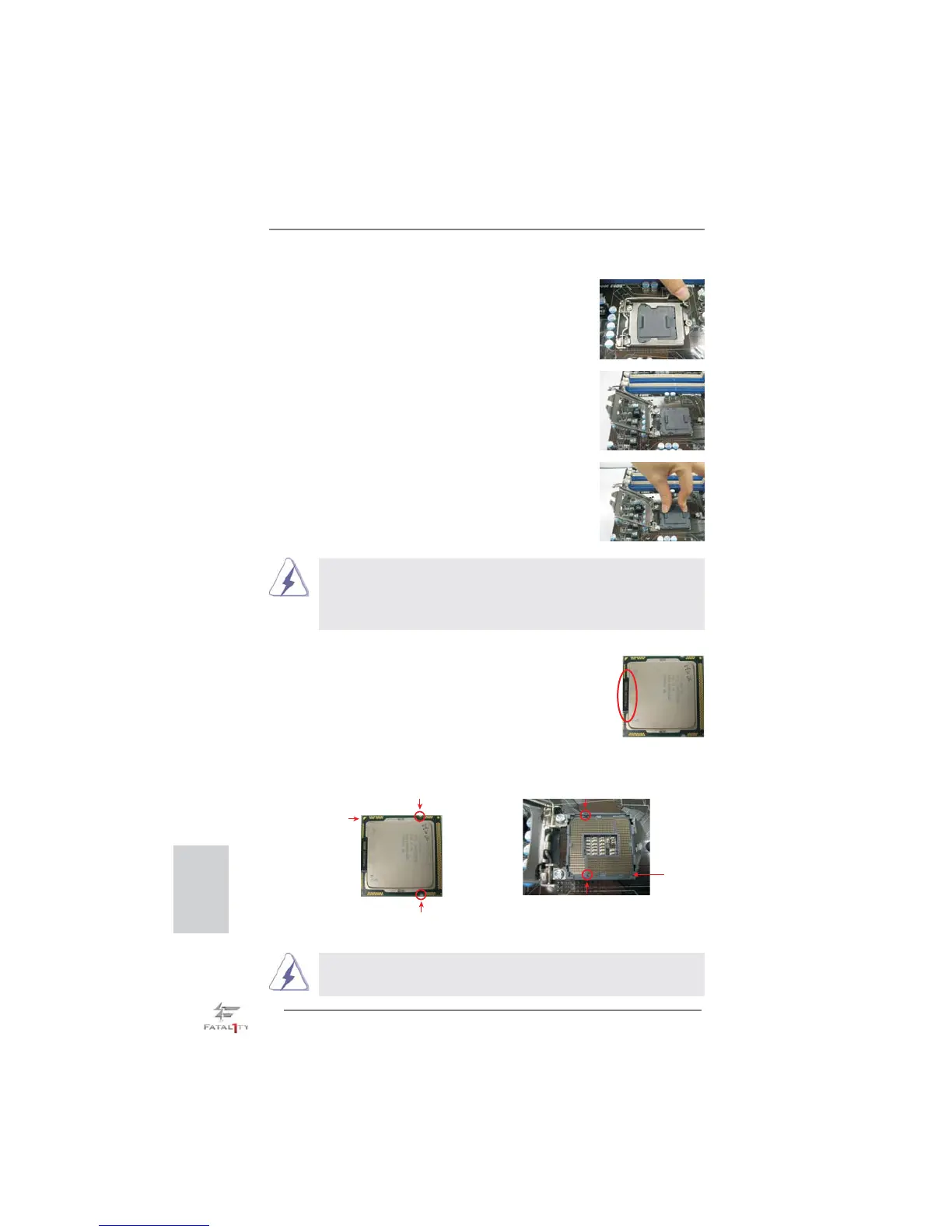

Step 1. Open the socket:
Step 1-1. Disengaging the lever by depressing
down and out on the hook to clear
retention tab.
Step 1-2. Rotate the load lever to fully open po-
sition at approximately 135 degrees.
Step 1-3. Rotate the load plate to fully open po-
sition at approximately 100 degrees.
Step 2. Remove PnP Cap (Pick and Place Cap).
1. It is recommended to use the cap tab to handle and avoid kicking
off the PnP cap.
2. This cap must be placed if returning the motherboard for after
service.
Step 3. Insert the 1155-Pin CPU:
Step 3-1. Hold the CPU by the edges where
are marked with black lines.
Step 3-2. Orient the CPU with IHS (Integrated
Heat Sink) up. Locate Pin1 and the
two orientation key notches.
For proper inserting, please ensure to match the two orientation key
notches of the CPU with the two alignment keys of the socket.
English
black line
Pin1
alignment key
alignment key
Pin1
1155-Pin CPU
1155-Pin Socket
orientation key notch
orientation key notch

ASROCK FATAL1TY P67 PERFORMANCE - ANNEXE 955 Specifications

General

CPU Socket Type	LGA 1155
Chipset	Intel P67
Maximum Memory Supported	32GB
PCI Express 2.0 x1	2
SATA 3Gb/s	4
LAN	Gigabit LAN
Form Factor	ATX
Memory Slots	4
Memory Standard	DDR3
SATA 6Gb/s	2
USB 2.0 Ports	8
USB 3.0 Ports	2
