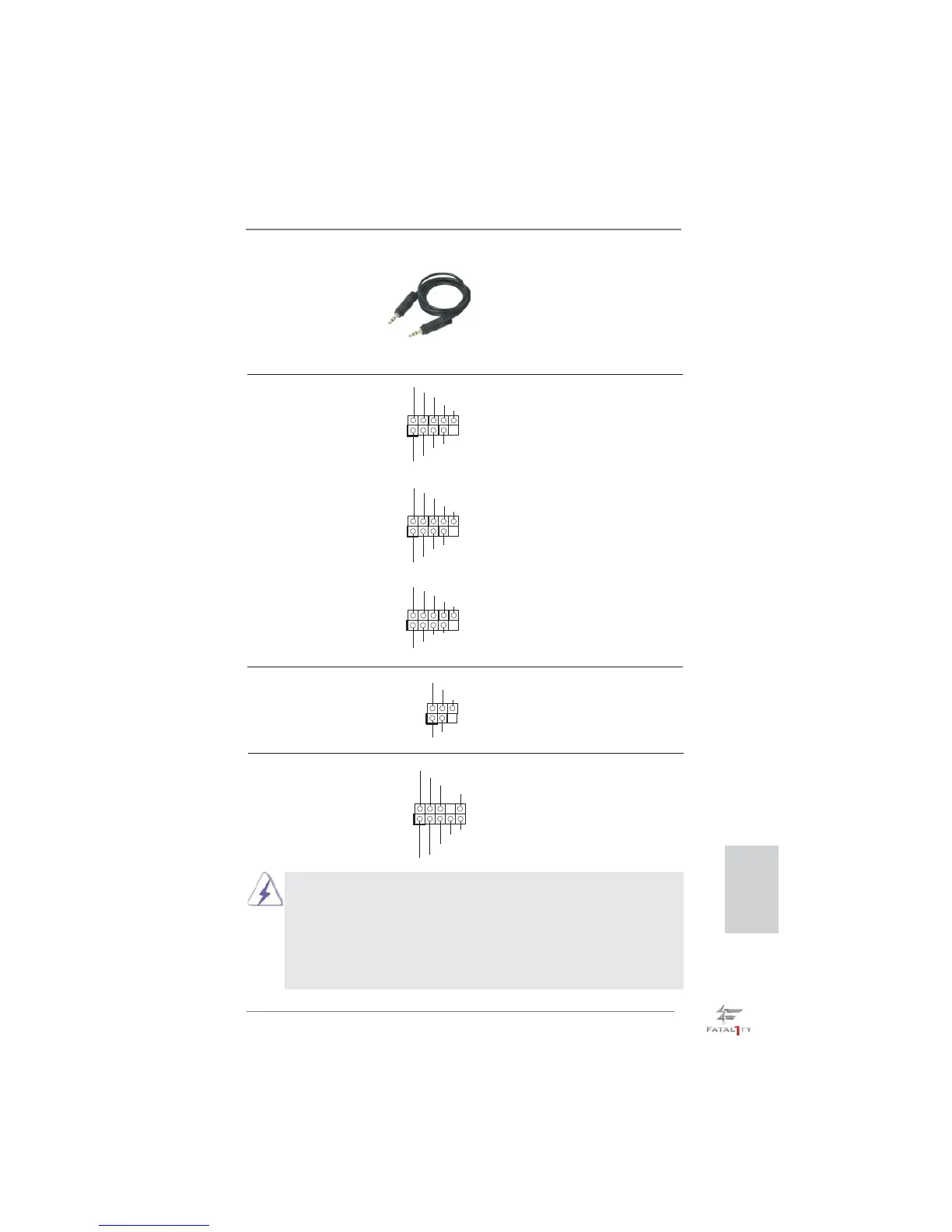

Fatal1ty P67 Performance Series Motherboard
21
English
3.5mm Audio Cable Either end of the 3.5mm audio
(Optional)
cable can be connected to the
portable audio devices, such
as MP3 player and mobile
phone or the Line-in port of
your PC.
USB 2.0 Headers Besides six default USB 2.0
(9-pin USB8_9)
ports on the I/O panel, there
(see p.4 No. 27)
are three USB 2.0 headers on
this motherboard. Each
USB 2.0 header can support
two USB 2.0 ports.
(9-pin USB10_11)
(see p.4 No. 26)
(9-pin USB12_13)
(see p.4 No. 25)
1
DUMMY
GND
P+13
P-13
USB_PWR
USB_PWR
GND
P+12
P-12
1
USB_PWR
P-8
GND
DUMMY
USB_PWR
P+8
GND
P-9
P+9
1
USB_P WR
P-10
GND
DUMMY
USB_P WR
P+10
GND
P-11
P+11
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
Front Panel Audio Header This is an interface for front
(9-pin HD_AUDIO1)
panel audio cable that allows
(see p.4 No. 32)
convenient connection and
control of audio devices.
Infrared Module Header This header supports an
(5-pin IR1)
optional wireless transmitting
(see p.4 No. 29)
and receiving infrared module.
1
IRTX
+5VSB
DUMMY
IRRX
GND
1. High Defi nition Audio supports Jack Sensing, but the panel wire on
the chassis must support HDA to function correctly. Please follow the
instruction in our manual and chassis manual to install your system.
2. If you use AC’97 audio panel, please install it to the front panel audio
header as below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
To Next Page
