3.3.1 Realtek
®
Wake-On-WAN
Realtek
®
Wake-On-WAN allows you to wake up and remote control your home
computer from sleep or shutdown state.
Before conguring this feature, verify the followings on your host computer:

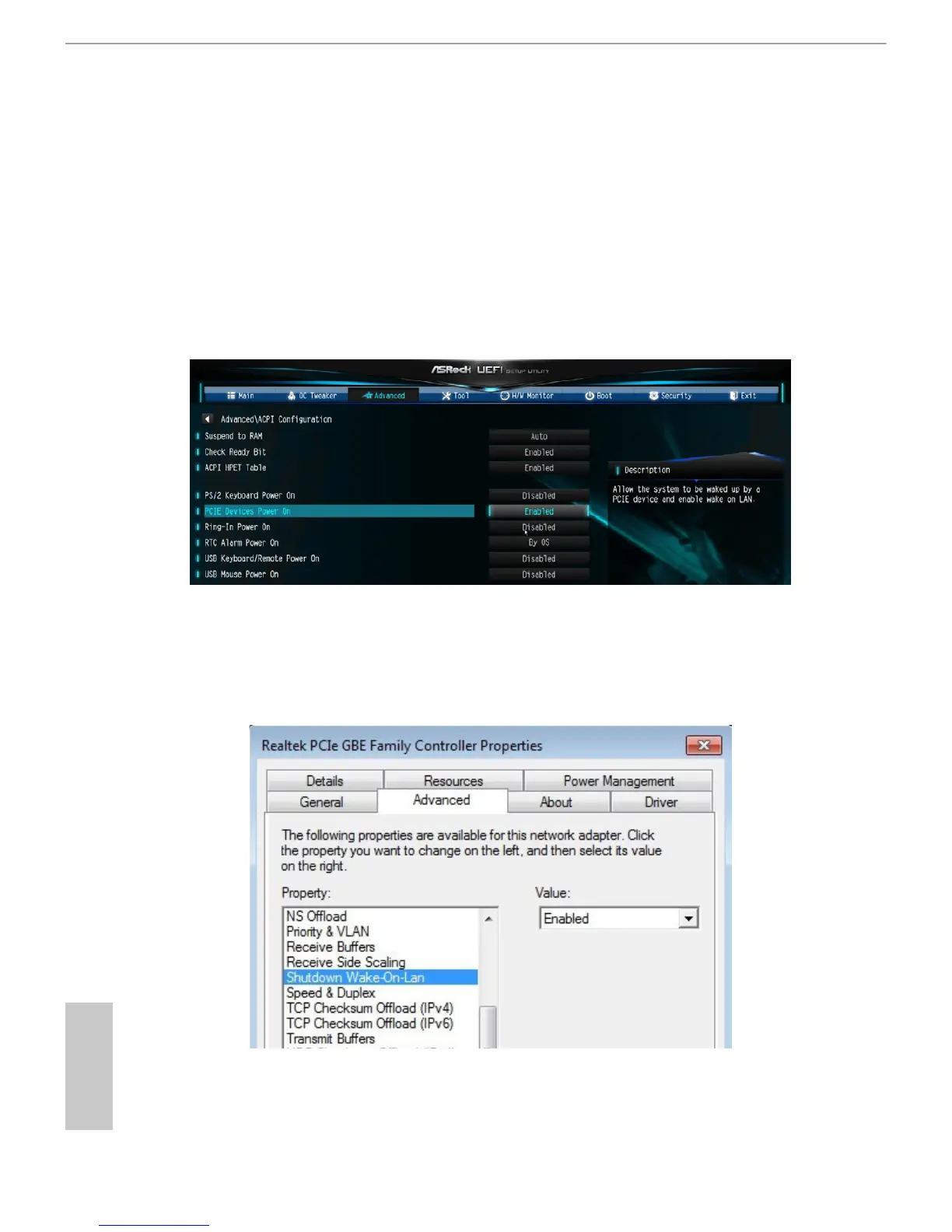

• Make sure that the "PCIE Devices Power On" is enabled in UEFI
SETUP UTILITY > Advanced > ACPI Conguration.
• Make sure that the "Shutdown Wake-On-Lan" is enabled in Device
Manager > Network Adapters > Realtek PCIe GBE Family Controller >
Advanced.
*The UEFI screen is for reference only. The actual screen may differ by model.
*The screen is for reference only. The actual screen may differ on different
computers.
