ASROCK FM2A88M-HD+ R3.0 User Manual

16
17
English
FM2A88M-HD+ R3.0

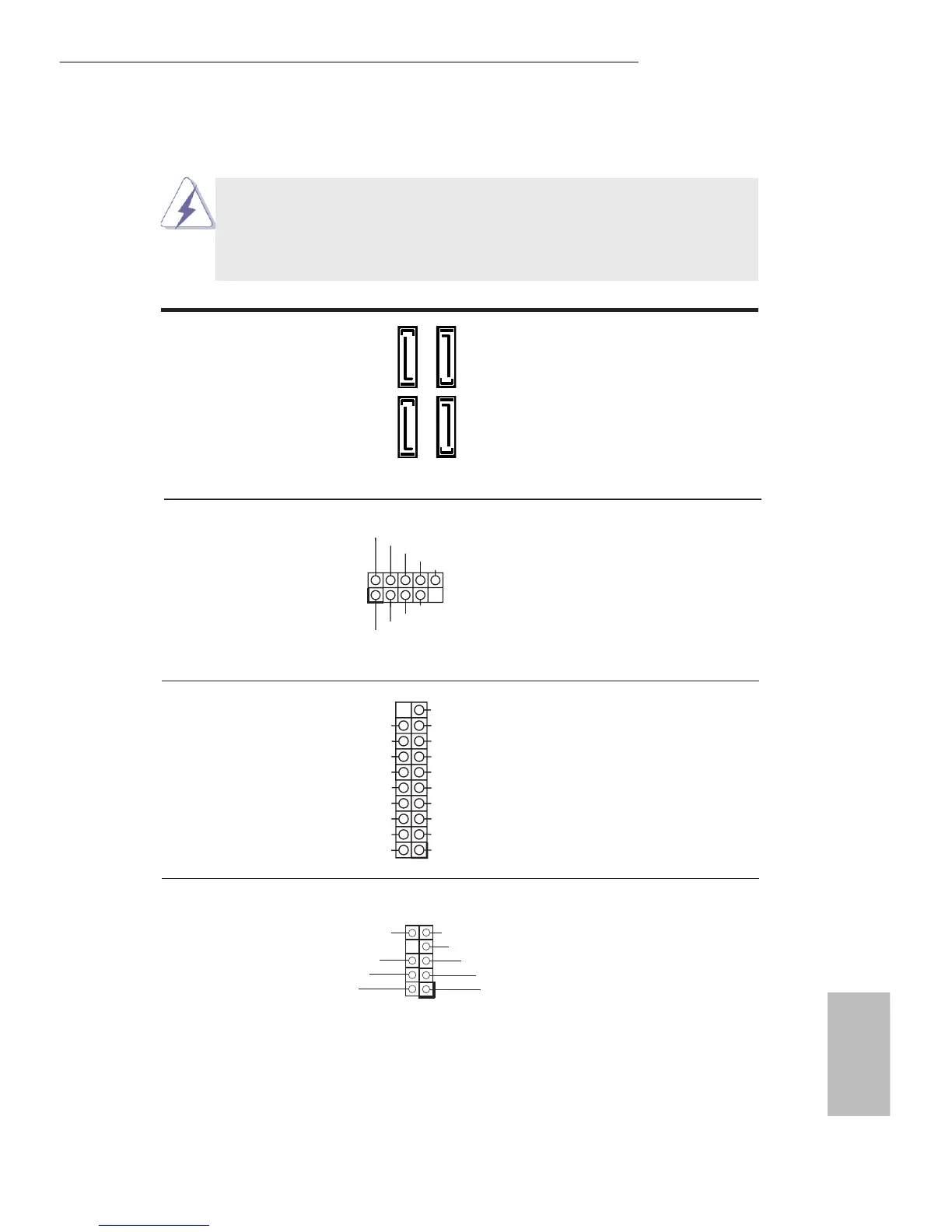

2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
USB 2.0 Headers Besides four default USB 2.0
(9-pin USB_7_8)
ports on the I/O panel, there
(see p.1 No. 14)
are two USB 2.0 headers on
(9-pin USB_9_10)
this motherboard. Each USB 2.0
(see p.1 No. 13)
header can support two USB
2.0 ports.
Serial ATA3 Connectors These four Serial ATA3
(SATA_1: see p.1, No. 10)
(SATA3) connectors support
(SATA_2: see p.1, No. 7)
SATA data cables for internal
(SATA_3: see p.1, No. 9)
storage devices. The current
(SATA_4: see p.1, No. 8)
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
USB 3.0 Header Besides two default USB 3.0
(19-pin USB_11_12)
ports on the I/O panel, there is
(see p.1 No. 6)
one USB 3.0 header on this
motherboard. This USB 3.0
header can support two USB 3.0
ports.
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
SATA_2 SATA_4
SATA_1 SATA_3
Front Panel Audio Header This is an interface for the front
(9-pin HD_AUDIO1)
panel audio cable that allows
(see p.1 No. 20)
convenient connection and
control of audio devices.
J_SENSE
OUT2_L
1
MIC_RED
OUT_RET
OUT2_R
MIC2_R
MIC2_L
GND
PRESENCE#
