4
English

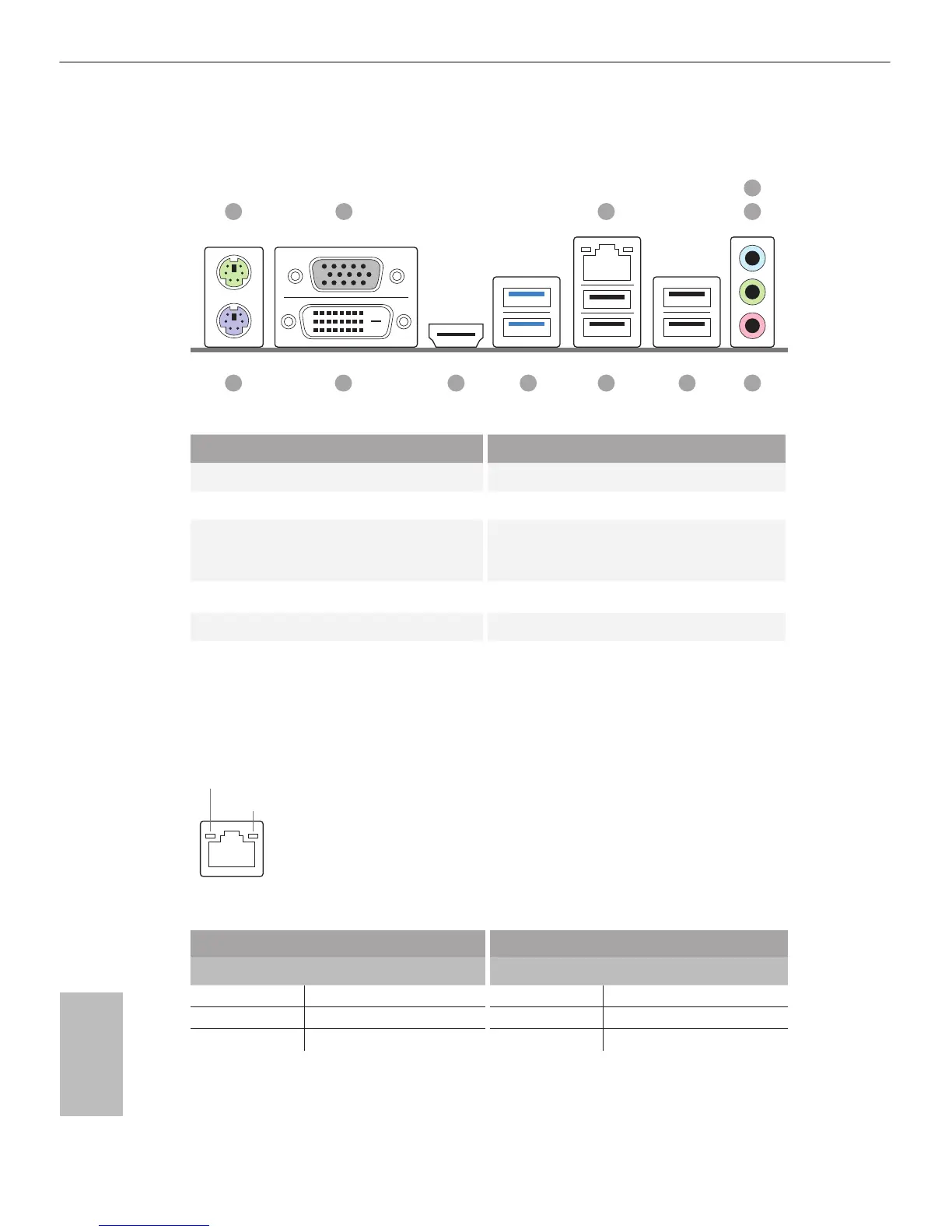

I/O Panel
No. Description No. Description
1 PS/2 Mouse Port 7 USB 2.0 Ports (USB4_5)**
2 D-Sub Port 8 USB 2.0 Ports (USB23)**
3 LAN RJ-45 Port* 9
USB 3.0 Ports (USB_01)
(AMD A88X (Bolton-D4))
4 Line In (Light Blue) 10 HDMI Port
5 Front Speaker (Lime) 11 DVI-D Port
6 Microphone (Pink) 12 PS/2 Keyboard Port
* There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indica-
tions.
Activity / Link LED Speed LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
** It is recommended to install the USB Keyboard/Mouse cable to USB 2.0 ports (USB23 or
USB4_5) instead of USB 3.0 ports.
ACT/LINK LED
SPEED LED
LAN Port
1 2 5
6
3
8 79101112
4
To Next Page
