ASROCK G31M-VS2 - V1.1 User Manual

1010
1010
10

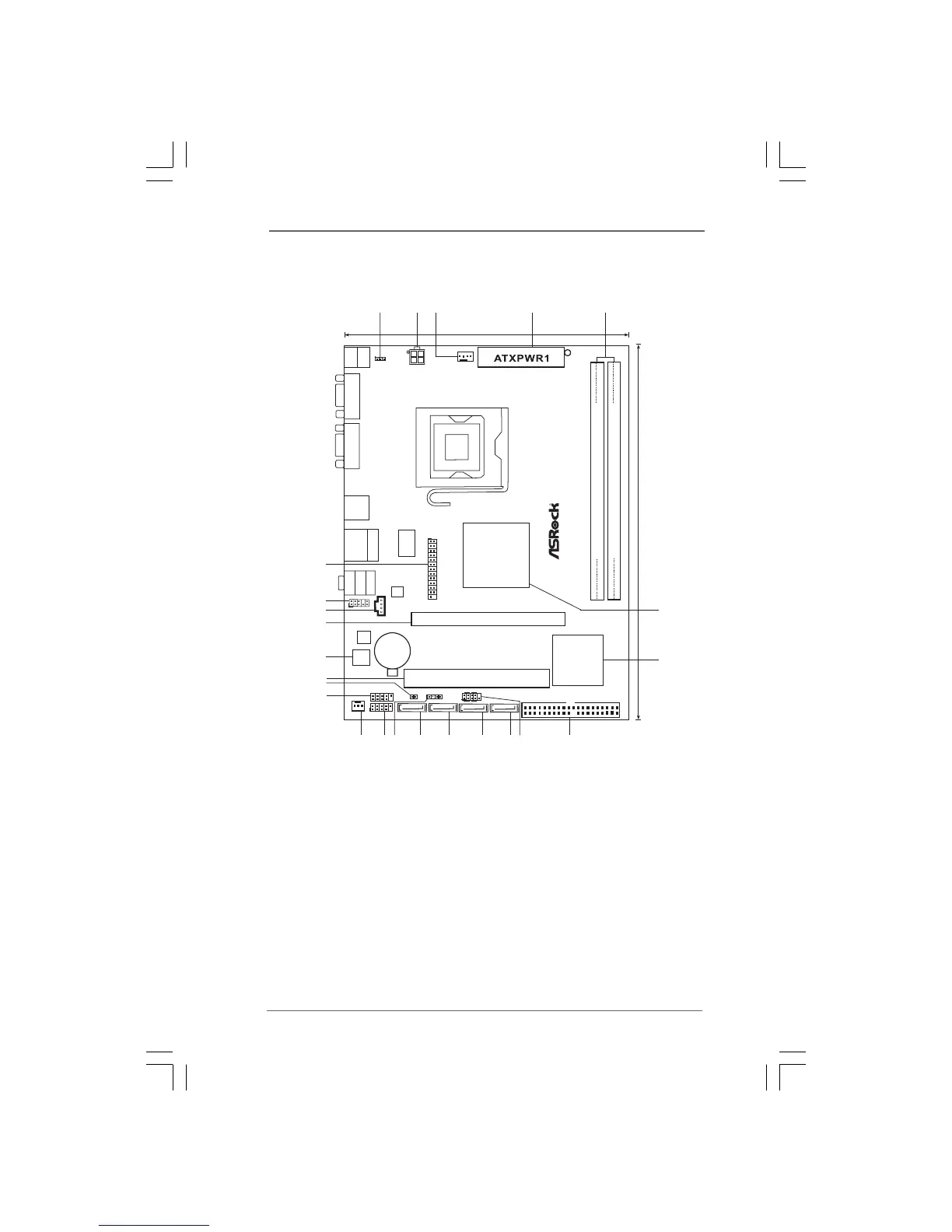

1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout
1 PS2_USB_PWR1 Jumper 14 Chassis Speaker Header (SPEAKER 1, White)
2 ATX 12V Connector (ATX12V2) 15 USB 2.0 Header (USB4_5, Blue)
3 CPU Fan Connector (CPU_FAN1) 16 Chassis Fan Connector (CHA_FAN1)
4 ATX Power Connector (ATXPWR1) 17 USB 2.0 Header (USB6_7, Blue)
5 2 x 240-pin DDR2 DIMM Slots 18 Clear CMOS Jumper (CLRCMOS1)
(Dual Channel: DDRII_1, DDRII_2; Yellow) 19 PCI Slot (PCI1)
6 North Bridge Controller 20 BIOS SPI Chip
7 South Bridge Controller 21 PCI Express x16 Slot (PCIE1)
8 IDE1 Connector (IDE1, Blue) 22 Internal Audio Connector: CD1 (Black)
9 System Panel Header (PANEL1, White) 23 Front Panel Audio Header
10 Primary SATAII Connector (SATAII_1; Blue) (HD_AUDIO1, White)
11 Secondary SATAII Connector (SATAII_2; Blue) 24 Print Port Header (LPT1, White)
12 Third SATAII Connector (SATAII_3; Blue)
13 Third SATAII Connector (SATAII_4; Blue)
1
PS2_USB_PWR1
IDE1
CHA_FAN1
SPEAKER1
1
HD_AUDIO1
Intel
G31
Chipset
CLRCMOS1
PANEL1
HDLED RESET
PLED PWRBTN
1
4Mb
BIOS
1
AUDIO
CODEC
17.0cm (6.7 in)
22.6cm (8.9 in)
ATX 12V2
Super
IO
1
24
5
7
6
8
9
10
12
13
14
11
15
16
17
18
19
3
20
21
Intel
ICH7
FSB800
DDRII_1 (64 bit, 240-pin module)
FSB800
DDRII_2 (64 bit, 240-pin module)
SATAII_2
SATAII_1
PCIE1
CD1
LAN
PHY
USB 2.0
T: USB2
B: USB3
USB 2.0
T: U SB0
B: USB1
Top:
RJ-45
PS2
Mouse
PS2
Keyboard
VGA1
Top:
Line In
Center:
Line Out
Bottom:
Mic In
CPU_FAN1
1
USB6_7
PCI1
1
USB4_5
G31M-VS2
FSB1333
DDR2 800
Dual Channel
RoHS
CMOS
Battery
1
LPT1
22
COM1
SATAII_4
SATAII_3
EuP Ready
23
24

ASROCK G31M-VS2 - V1.1 Specifications

General

Form Factor	Micro ATX
Chipset	Intel G31
CPU Socket	LGA 775
Maximum Memory	8GB
Storage Interface	4 x SATA 3Gb/s
Video Outputs	1 x VGA
Memory Slots	2 x DIMM
Memory Standard	DDR2 800/667 MHz
Expansion Slots	2 x PCI
Audio	Realtek ALC662 5.1-channel HD Audio
LAN	10/100 Ethernet
