ASRock G41C-GS / G41C-S Motherboard
1.4 Onboard Headers and Connectors1.4 Onboard Headers and Connectors
1.4 Onboard Headers and Connectors1.4 Onboard Headers and Connectors

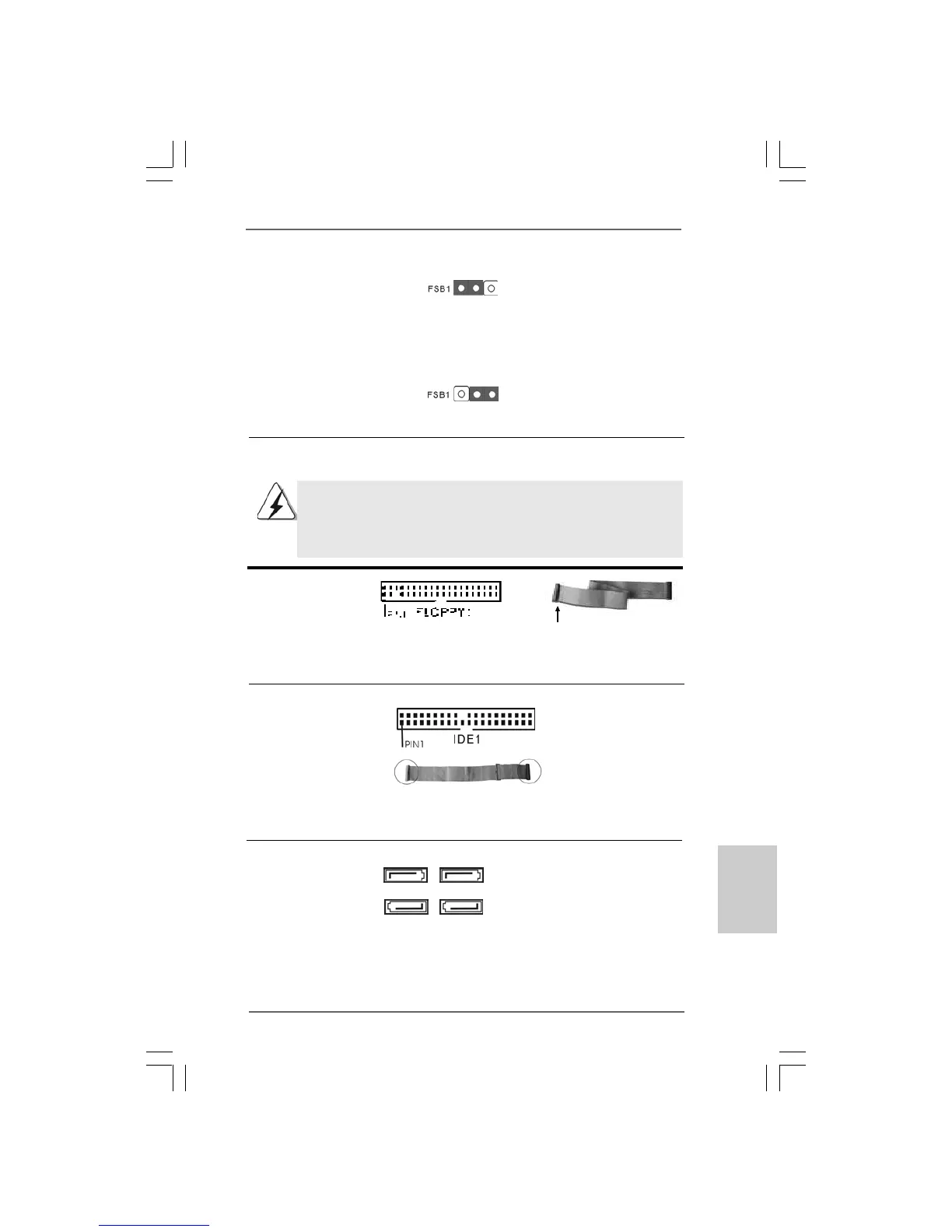

1.4 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Floppy Connector
(33-pin FLOPPY1)
(see p.2 No. 21)
Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the
connector.
Primary IDE connector (Blue)
(39-pin IDE1, see p.2 No. 11)
Note: Please refer to the instruction of your IDE device vendor for the details.
Serial ATAII Connectors These four Serial ATAII (SATAII)
(SATAII_1: see p.2, No. 16) connectors support SATAII
(SATAII_2: see p.2, No. 15) or SATA hard disk for internal
(SATAII_3: see p.2, No. 12) storage devices. The current
(SATAII_4: see p.2, No. 13) SATAII interface allows up to
3.0 Gb/s data transfer rate.
connect the black end
to the IDE devices
connect the blue end
to the motherboard
80-conductor ATA 66/100 cable
FSB1 Jumper
(FSB1, 3-pin jumper, see p.2 No. 25)
If you adopt FSB1333-CPU and DDR3 1333 memory module on this motherboard, you
need to adjust the jumper. Please short pin2, pin3 for FSB1 jumper. Otherwise, the
CPU and memory module may not work properly on this motherboard. Please refer to
below jumper setting.
Default
SATAII_2 SATAII_4
SATAII_1 SATAII_3
the red-striped side to Pin1
EnglishEnglish
EnglishEnglish
English
