1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout
1
PS2_USB_PWR1
IDE1
CHA_FAN1
SPEAKER1
1
HD_AUDIO1
Intel
G41
Chipset
CLRCMOS1
PANEL1
HDLED RESET
PLED PWRBTN
1
CMOS
Battery
8Mb
BIOS
1
AUDIO
CODEC
19.3cm (7.6 in)
24.4cm (9.6 in)
ATX12V1
Super
IO
FLOPPY1
1
2
4 5
7
6
8
9
10
12
13
14
11
15
16
17
18
19
22
23
24
25
26
27
3
20
21
Intel
ICH7
FSB800
DDR3_A1 (64 bit, 240-pin module)
FSB800
DDR3_B1 (64 bit, 240-pin module)
SATAII_3
SATAII_1
SATAII_4
SATAII_2
PCIE1
LAN
PHY
USB 2.0
T: U SB 2
B: USB3
USB 2.0
T: U SB 0
B: USB1
Top:
RJ-45
COM1
PS2
Mouse
PS2
Keyboard
VGA1
Top:
Line In
Center:
Line Out
Bottom:
Mic In
CPU_FAN1
1
USB6_7
PCIE2
PCI1
PCI2
1
USB4_5
1
LPT1
FSB1
1
1
1
FSB2
FSB3
G41M-S3
FSB1333
DDR3 1333
Dual Channel
DX10
RoHS
EuP Ready

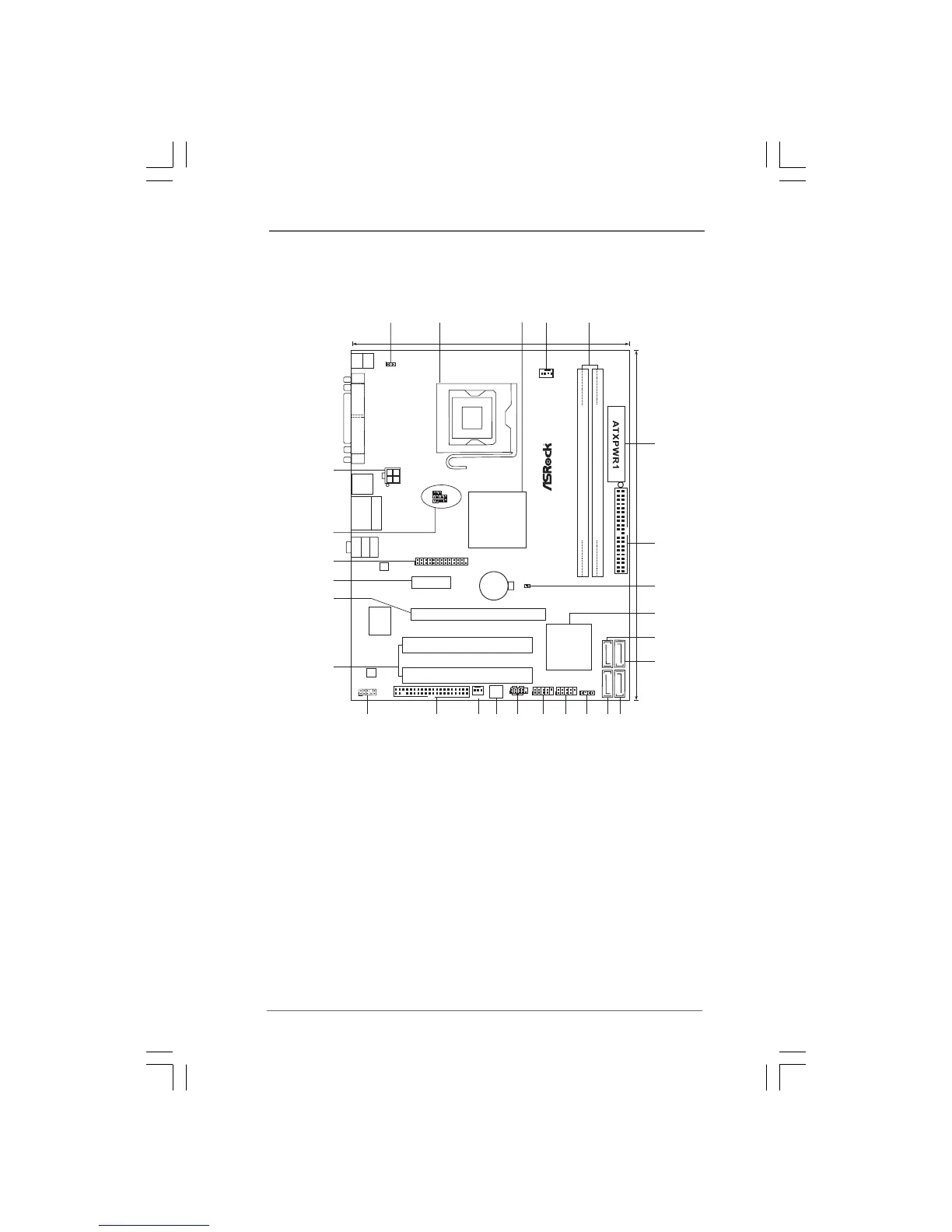

1 PS2_USB_PWR1 Jumper 15 USB 2.0 Header (USB6_7, Blue)
2 775-Pin CPU Socket 16 USB 2.0 Header (USB4_5, Blue)
3 North Bridge Controller 17 System Panel Header (PANEL1, Orange)
4 CPU Fan Connector (CPU_FAN1) 18 BIOS SPI Chip
5 2 x 240-pin DDR3 DIMM Slots 19 Chassis Fan Connector (CHA_FAN1)
(Dual Channel: DDR3_A1, DDR3_B1; Blue) 20 Floppy Connector (FLOPPY1)
6 ATX Power Connector (ATXPWR1) 21 Front Panel Audio Header
7 IDE1 Connector (IDE1, Blue) (HD_AUDIO1, Lime)
8 Clear CMOS Jumper (CLRCMOS1) 22 PCI Slots (PCI1- 2)
9 South Bridge Controller 23 PCI Express x16 Slot (PCIE2)
10 Third SATAII Connector (SATAII_3; Orange) 24 PCI Express x1 Slot (PCIE1)
11 Fourth SATAII Connector (SATAII_4; Orange) 25 Print Port Header (LPT1, Purple)
12 Secondary SATAII Connector (SATAII_2; Red) 26 FSB1 / FSB2 / FSB3 Jumper
13 Primary SATAII Connector (SATAII_1; Red) 27 ATX 12V Connector (ATX12V1)
14 Chassis Speaker Header (SPEAKER 1, Purple)
