ASROCK H110TM-ITX User Manual

18
19
English

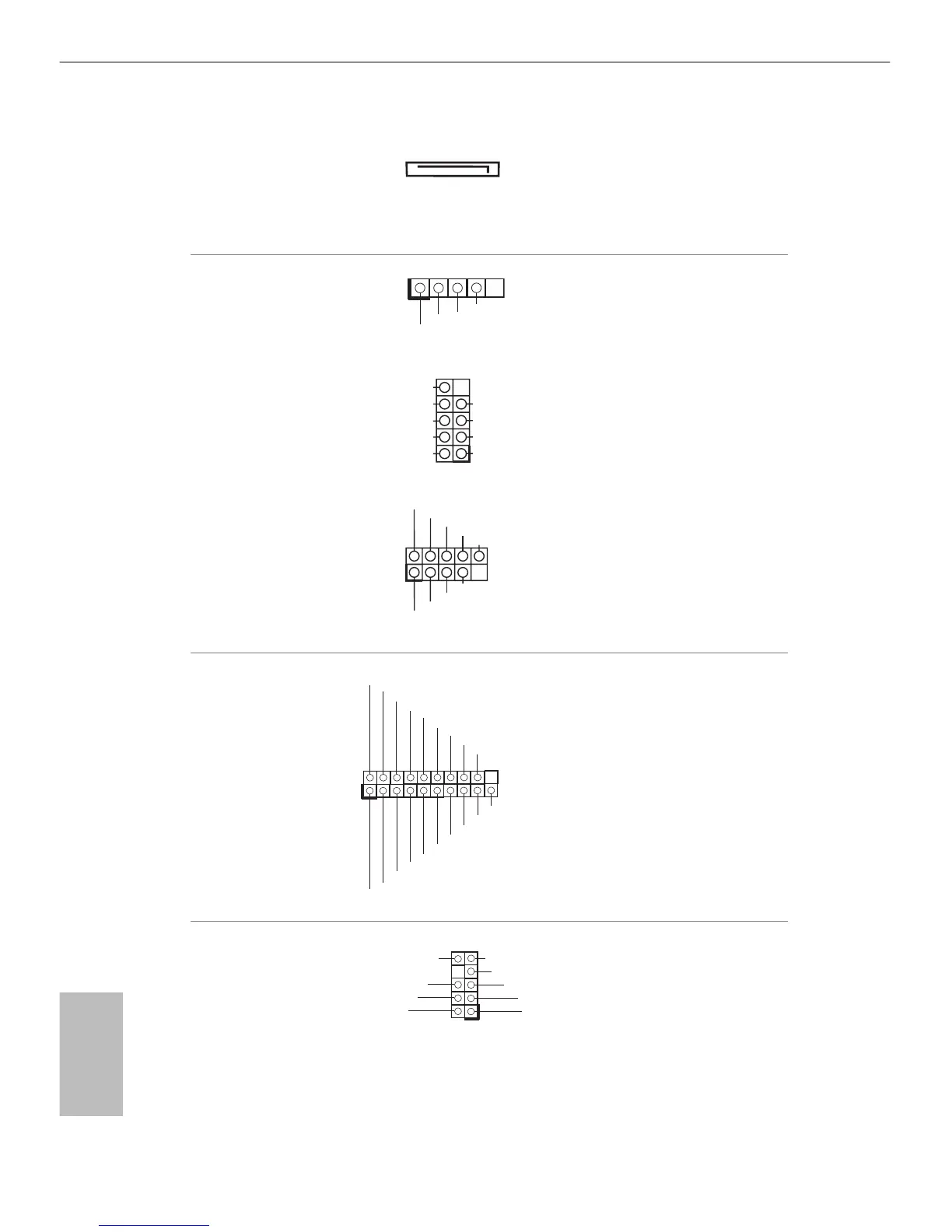

SATA Power Connector
(SATA_POW1)
(see p.1, No. 9)
Please connect a SATA
power cable.
USB 2.0 Headers
(5-pin USB6)
(see p.1, No. 3)
(9-pin USB2_3)
(see p.1, No. 20)
(9-pin USB4_5)
(see p.1, No. 4)
Besides two USB 2.0 ports
on the I/O panel, there
are three headers on this
motherboard.
USB 3.0 Header
(19-pin USB3_4_5)
(see p.1, No. 5)
Besides two USB 3.0 ports
on the I/O panel, there
is one header on this
motherboard. is USB
3.0 header can support
two ports.
* USB3_4_5 is shared
with USB4_5.
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1, No. 24)
is header is for
connecting audio devices
to the front audio panel.
DUMMY
GNDGND
P+
P-
P+
P-
USB_PWR
USB_PWR
1
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
1
ID
IntA_P_D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
Vbus
IntA_P_D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
IntA_P_SSRX-
Vbus
IntA_P_SSRX-
J_SENSE
OUT2_L
1
MIC_RED
OUT_RET
OUT2_R
MIC2_R
MIC2_L
GND
PRESENCE#
1
USB_PWR
P-
P+
GND
