20
ASRock H61M-ITX Motherboard

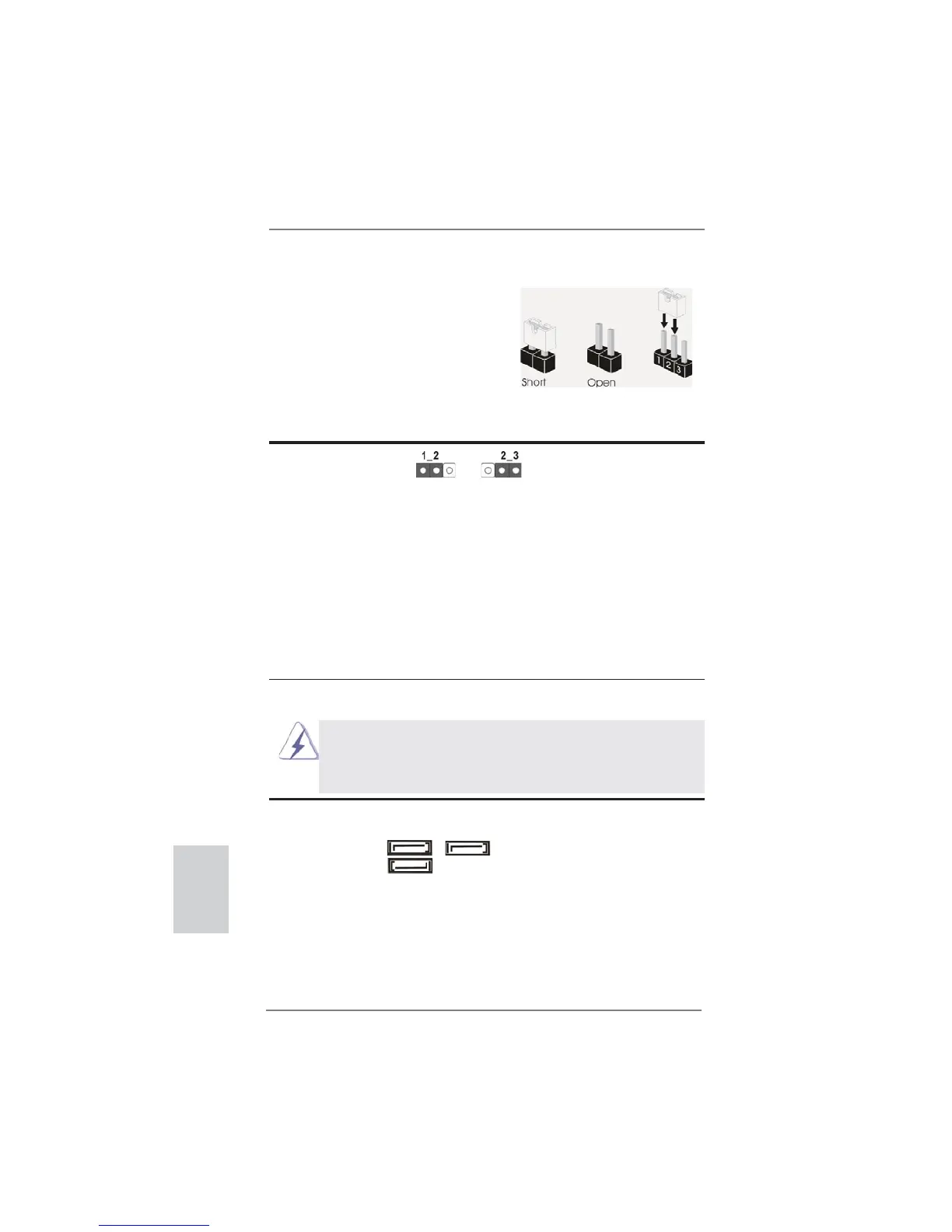

2.7 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Jumper Setting Description
Clear CMOS Jumper
(CLRCMOS1)
(see p.2, No. 5)
Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn off the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just fi nish updating the BIOS, you must boot up
the system fi rst, and then shut it down before you do the clear-CMOS action.
Please be noted that the password, date, time and user default profi le will be
cleared only if the CMOS battery is removed.
Clear CMOSDefault
English
2.8 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATAII Connectors These three Serial ATAII
(SATA_0 (PORT 0):
(SATAII) connectors support
see p.2, No. 3)
SATA data cables for internal
(SATA_1 (PORT 1):
storage devices. The current
see p.2, No. 2)
SATAII interface allows up to
(SATA_2 (PORT 4):
3.0 Gb/s data transfer rate.
see p.2, No. 4)
SATA_1 (PORT 1)
SATA_0 (PORT 0) SATA_2 (PORT 4)
To Next Page
