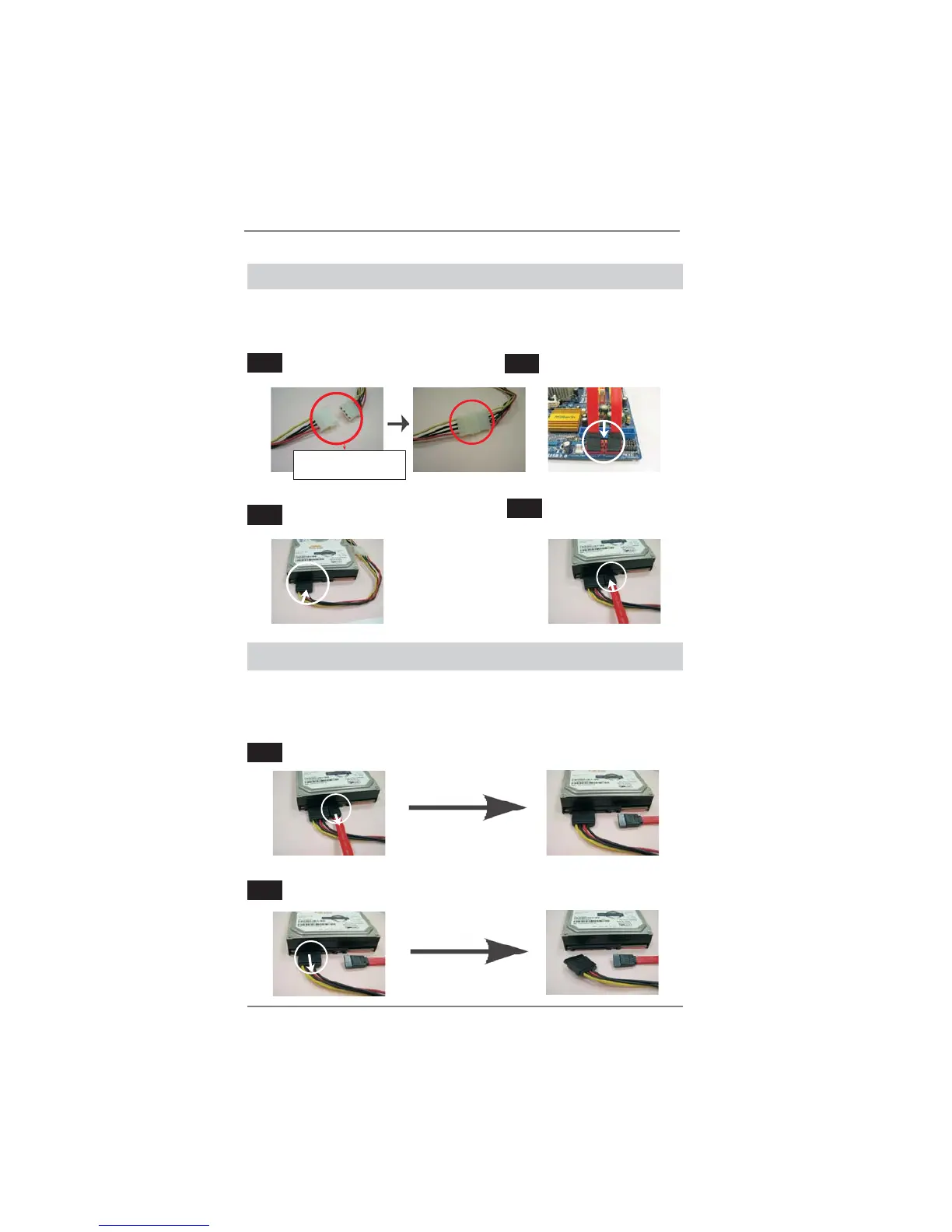

How to Hot Plug a SATA / SATAII HDD:

Points of attention, before you process the Hot Plug:

Please do follow below instruction sequence to process the Hot Plug, improper

procedure will cause the SATA / SATAII HDD damage and data loss.

Connect SATA data cable to

the motherboard’s SATAII connector.

Connect SATA 15-pin power cable connector

(Black) end to SATA / SATAII HDD.

Connect SATA data cable to

the SATA / SATAII HDD.

How to Hot Unplug a SATA / SATAII HDD:

Points of attention, before you process the Hot Unplug:

Please do follow below instruction sequence to process the Hot Unplug, improper

procedure will cause the SATA / SATAII HDD damage and data loss.

Please connect SATA power cable 1x4-pin end

(White) to the power supply 1x4-pin cable.

Step 1

Step 2

Step 3

Step 4

Step 2

SATA power cable 1x4-pin

power connector (White)

Unplug SATA data cable from SATA / SATAII HDD side.

Step 1

Unplug SATA 15-pin power cable connector (Black) from SATA / SATAII HDD side.
