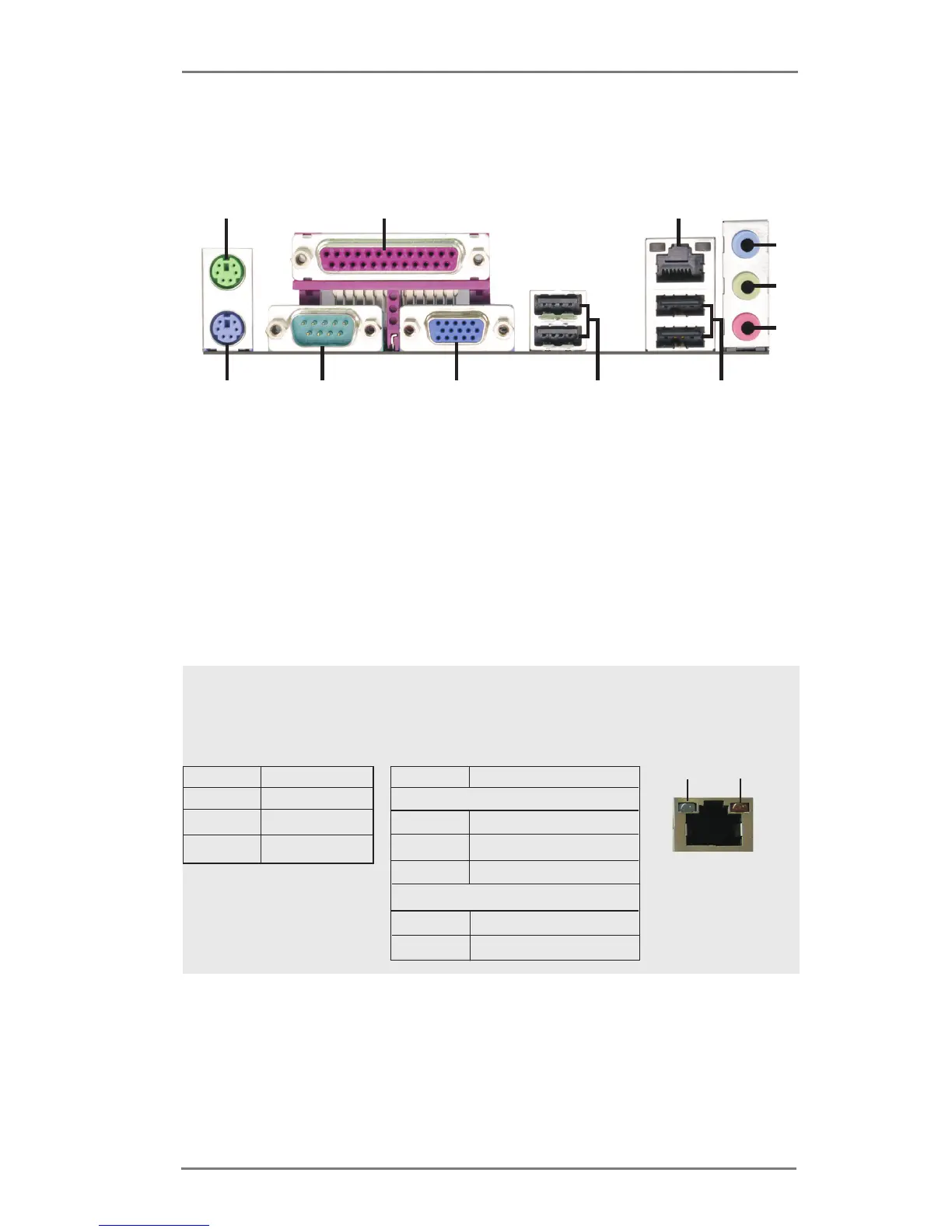

1.4 I/O Panel
1 PS/2 Mouse Port (Green) 7 USB 2.0 Ports (USB23)
2 Parallel Port (LPT1)* 8 USB 2.0 Ports (USB01)
3 LAN RJ-45 Port 9 D-Sub Port (VGA1)
4 Line In (Light Blue) 10 Serial Port (COM1)*
5 Front Speaker (Lime) 11 PS/2 Keyboard Port (Purple)
6 Microphone (Pink)
* The parallel port (LPT1) and serial port (COM1) on the I/O panel are for H61M-PS4 only.
6
9
1
2*
4
3
5
10*11 8
7
There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link H61M-PS4 / H61M-VG4:
Blinking Data Activity Off 10Mbps connection
On Link Orange 100Mbps connection
Green 1Gbps connection
H61M-VS4:
Off 10Mbps connection
On 100Mbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
