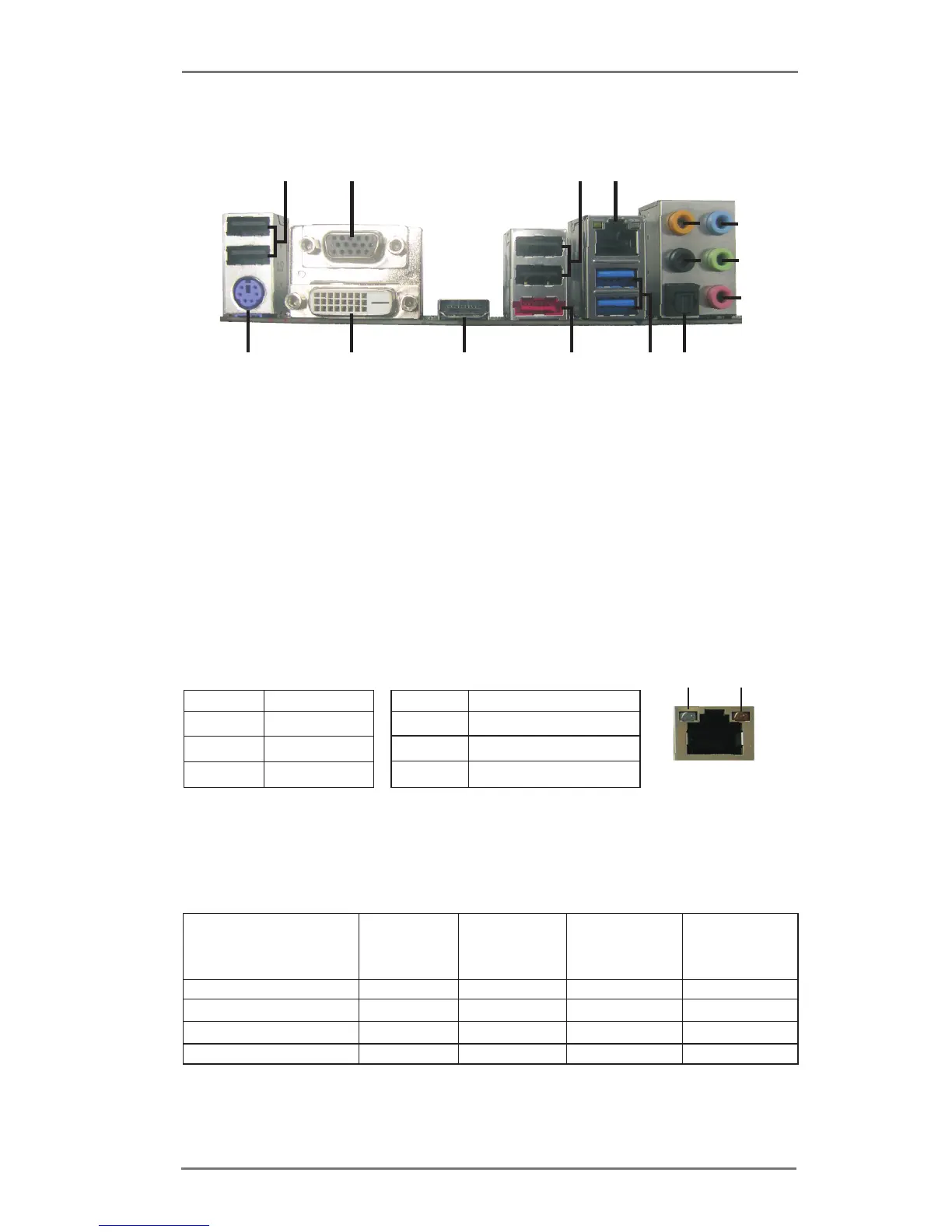

1.4 I/O Panel
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
1 USB 2.0 Ports (USB01)
2 D-Sub Port (VGA1)
3 USB 2.0 Ports (USB23)
* 4 LAN RJ-45 Port
5 Central / Bass (Orange)
6 Rear Speaker (Black)
7 Line In (Light Blue)
** 8 Front Speaker (Lime)
ACT/LINK
LED
SPEED
LED
LAN Port
**
If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.
See the table below for connection details in accordance with the type of speaker you use.
TABLE for Audio Output Connection
Audio Output Channels Front Speaker Rear Speaker Central / Bass Line in
(No. 8) (No. 6) (No. 5) (No. 7)
2 V -- -- --
4 V V -- --
6 V V V --
8 V V V V
1
2
3
4
5
10
6
7
8
9
11
13
12
14
15
9 Microphone (Pink)
10 Optical SPDIF Out Port
11 USB 3.0 Ports (USB3_12)
12 eSATA2 Connector
13 HDMI Port (HDMI1)
14 DVI-D Port (DVI1)
15 PS/2 Keyboard Port (Purple)
