ASROCK H97M-ITX/ac User Manual

H97M-ITX/ac
67
English

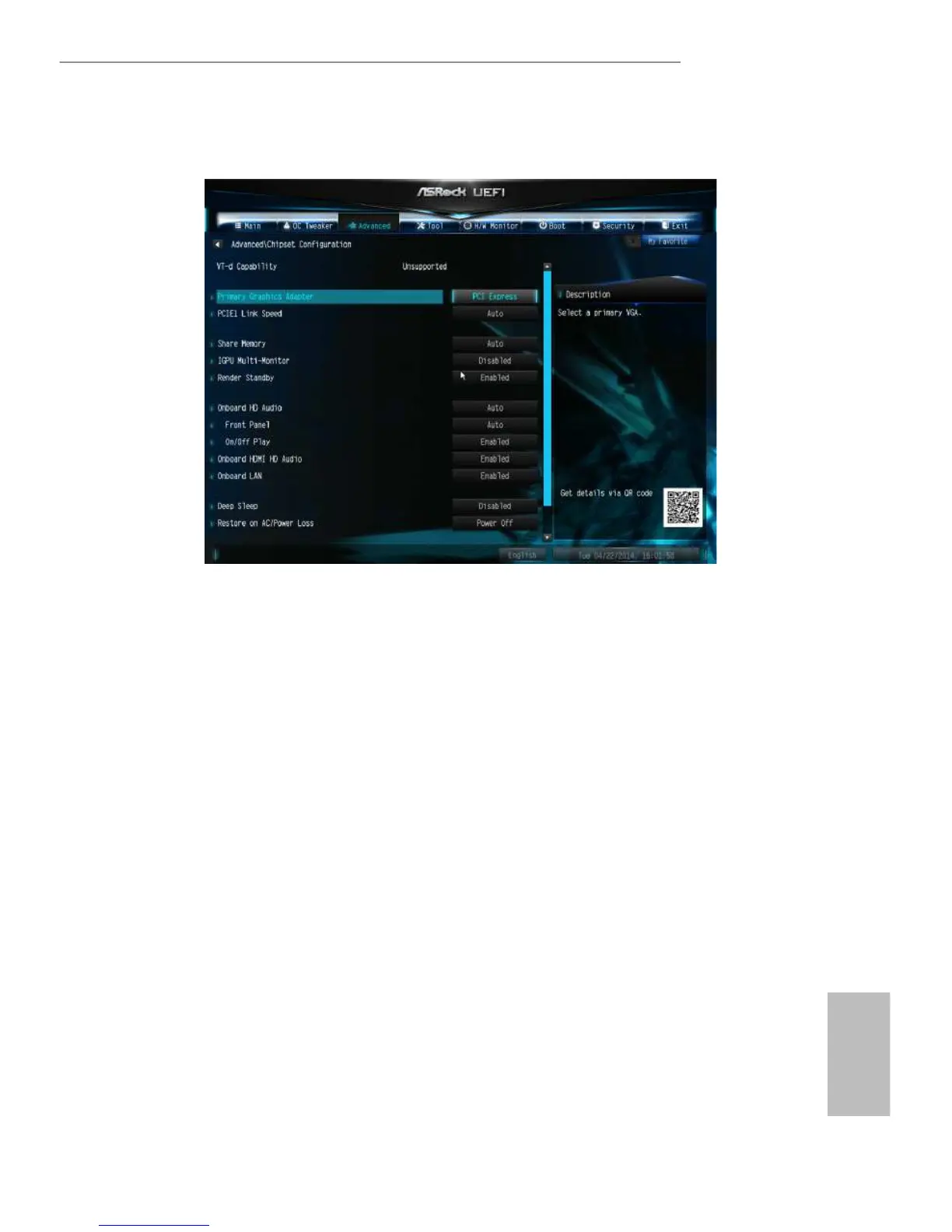

4.4.2 Chipset Conguration
Primary Graphics Adapter
Select a primary VGA.
PCIE1 Link Speed
Select the link speed for PCIE1.
Share Memory
Congure the size of memory that is allocated to the integrated graphics processor
when the system boots up.
IGPU Multi-Monitor
Select disable to disable the integrated graphics when an external graphics card is
installed. Select enable to keep the integrated graphics enabled at all times.
Render Standby
Power down the render unit when the GPU is idle for lower power consumption.
Onboard HD Audio
Enable/disable onboard HD audio. Set to Auto to enable onboard HD audio and
automatically disable it when a sound card is installed.

ASROCK H97M-ITX/ac Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	1
Number of SATA III connectors	5
Number of Parallel ATA connectors	-
Supported storage drive interfaces	SATA III
Headphone outputs	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
LAN controller	Atheros AR8171
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Audio chip	Realtek ALC892
Certification	FCC, CE, WHQL, ErP/EuP ready
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H97
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Maximum resolution	1920 x 1200 pixels
Maximum graphics card memory	1792 MB
BIOS type	UEFI AMI
ACPI version	1.1
BIOS memory size	64 Mbit
Cables included	SATA
