ASROCK H97M-ITX/ac User Manual

86
English

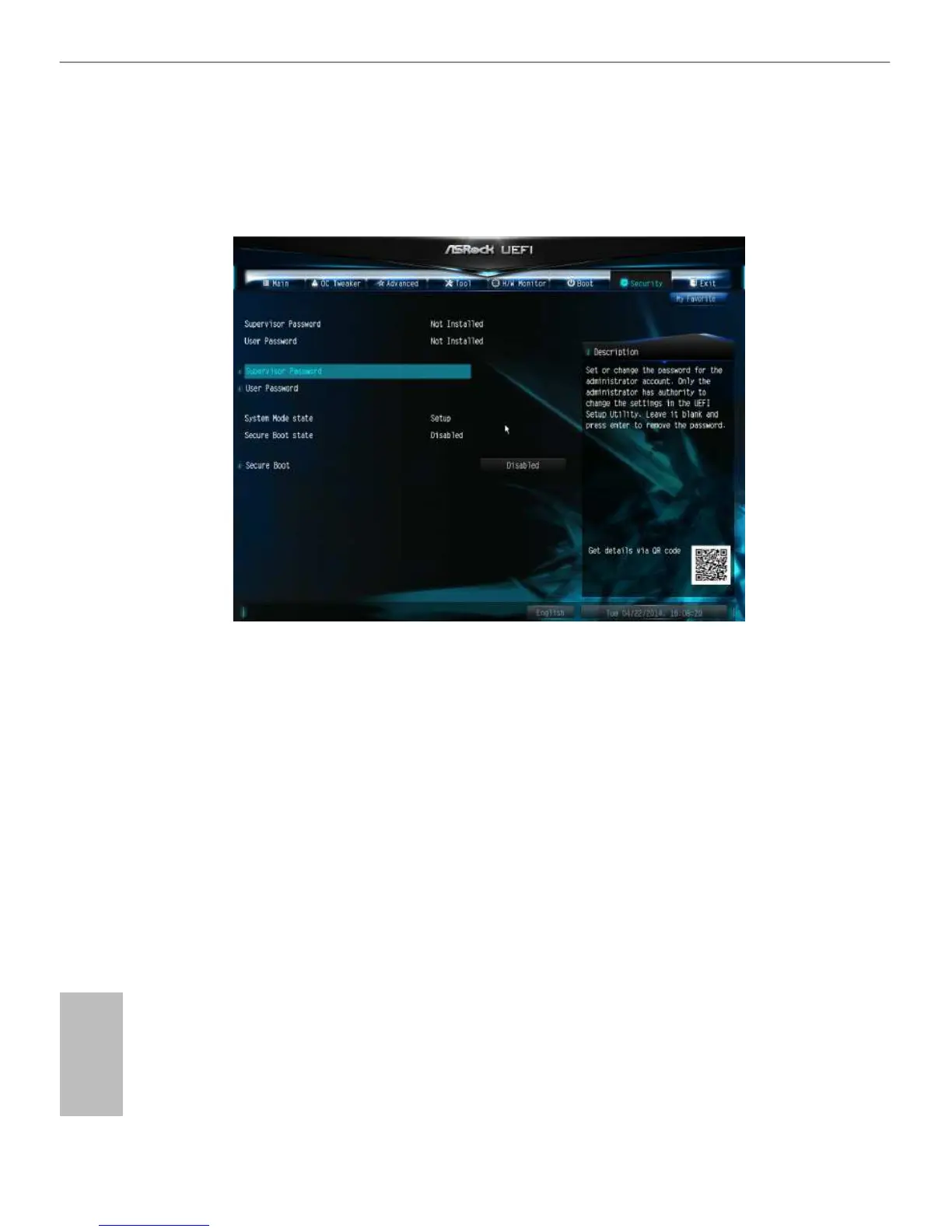

4.8 Security Screen
In this section you may set or change the supervisor/user password for the system.
You may also clear the user password.
Supervisor Password
Set or change the password for the administrator account. Only the administrator
has authority to change the settings in the UEFI Setup Utility. Leave it blank and
press enter to remove the password.
User Password
Set or change the password for the user account. Users are unable to change the
settings in the UEFI Setup Utility. Leave it blank and press enter to remove the
password.
Secure Boot
Enable to support Windows 8.1 / 8 Secure Boot.

ASROCK H97M-ITX/ac Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	1
Number of SATA III connectors	5
Number of Parallel ATA connectors	-
Supported storage drive interfaces	SATA III
Headphone outputs	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
LAN controller	Atheros AR8171
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Audio chip	Realtek ALC892
Certification	FCC, CE, WHQL, ErP/EuP ready
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H97
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Maximum resolution	1920 x 1200 pixels
Maximum graphics card memory	1792 MB
BIOS type	UEFI AMI
ACPI version	1.1
BIOS memory size	64 Mbit
Cables included	SATA
