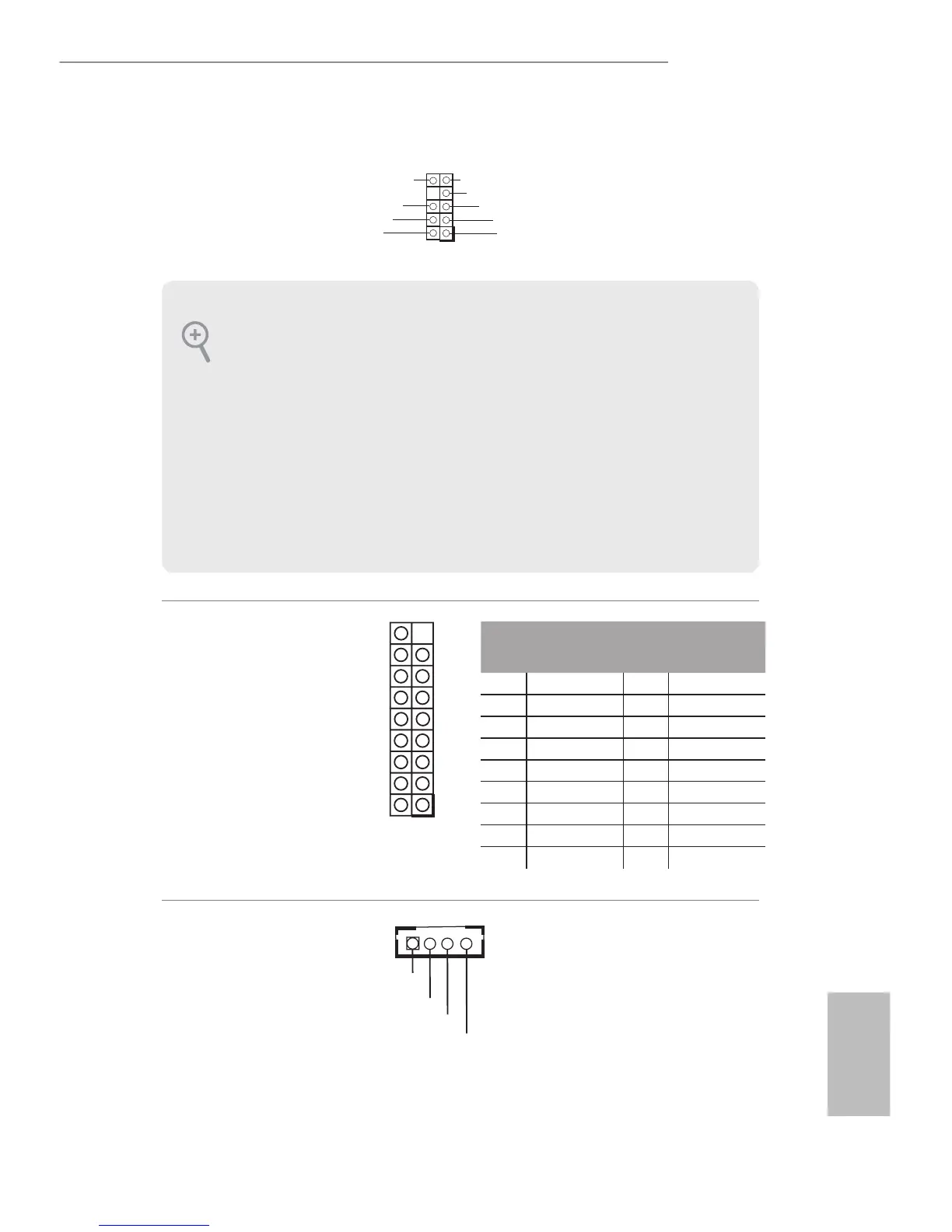

Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1, No. 25)
is header is for
connecting audio devices
to the front audio panel.
Analog Surround
Audio Header
(17-pin HD_AUDIO2)
(see p.1, No. 28)
3W Audio AMP Output
Wafer Header
(4-pin SPEAKER1)
(see p.1, No. 27)
Please connect the chassis
speaker to this header.
12
PIN
Signal
Name
PIN
Signal
Name
18 SENSE 17 KEY
16 LFE 15 A_GND
14 A_GND 13 Center
12 Surr_Rear_R 11 A_GND
10 A_GND 9 Surr_Rear_L
8 Surr_Side_R 7 A_GND
6 A_GND 5 Surr_Side_L
4 Front_R 3 A_GND
2 A_GND 1 Front_L
Front_L+
Front_R-
Front_R+
Front_L-
1
1. High Denition Audio supports Jack Sensing, but the panel wire on the chassis
must support HDA to function correctly. Please follow the instructions in our
manual and chassis manual to install your system.
2. If you use an AC’97 audio panel, please install it to the front panel audio header by
the steps below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don’t need to
connect them for the AC’97 audio panel.
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel
and adjust “Recording Volume”.
J_SENS E
OUT2_L
1
MIC_RET
PRESENCE#
GN D
OUT2_R
MIC2_R
MIC2_L
OUT_RET
