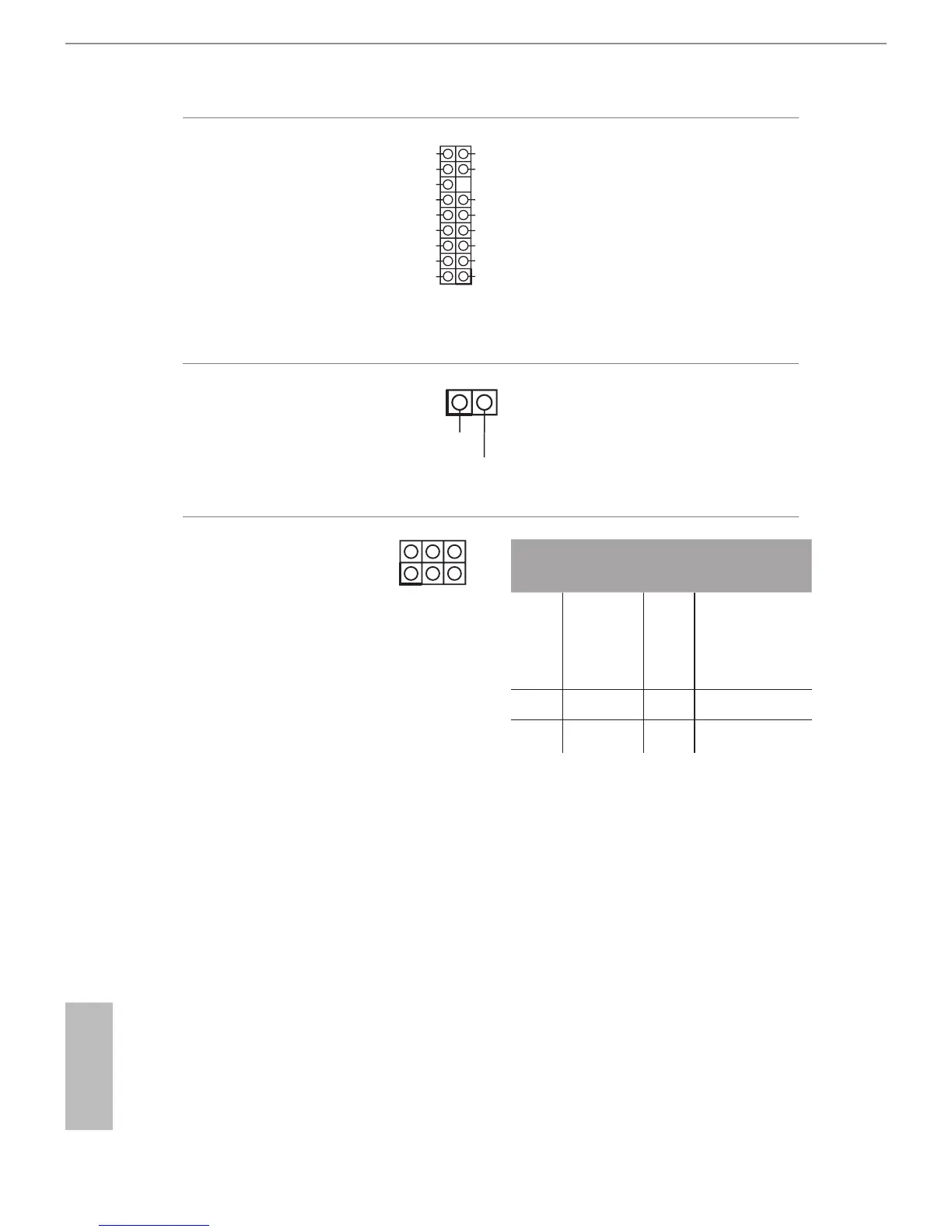

TPM Header
(17-pin TPMS1)
(see p.5, No. 19)
is connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
Monitor Switch Header
(2-pin MONITOR_
SWITCH1)
(see p.5, No. 5)
1
PWRDN
GND
is header can be used to
connect a switch that turns on/
o the LVDS panel display’s
backlight.
Digital Input / Output Pin
Header
(10-pin JGPIO1)
(see p.5, No. 23)
1
1
LFRAME#_L
CK_33M_TPM
TPM_RST#
LAD3_L
+3V
LAD0_L
+3VSB
GNDF_CLKRUN#
SERIRQ#
S_PWRDWN#
GND
LAD1_L
LAD2_L
SMB_DATA_MAIN
SMB_CLK_MAIN
GND
PIN
Signal
Name
PIN Signal Name
6 GND 5
JGPIOPWR
(use JGPIO_
PWR1 to
congure)
4 GPIO4 3 GPIO3
2 GPIO2 1 GPIO1
