J3710-ITX
J3160-ITX

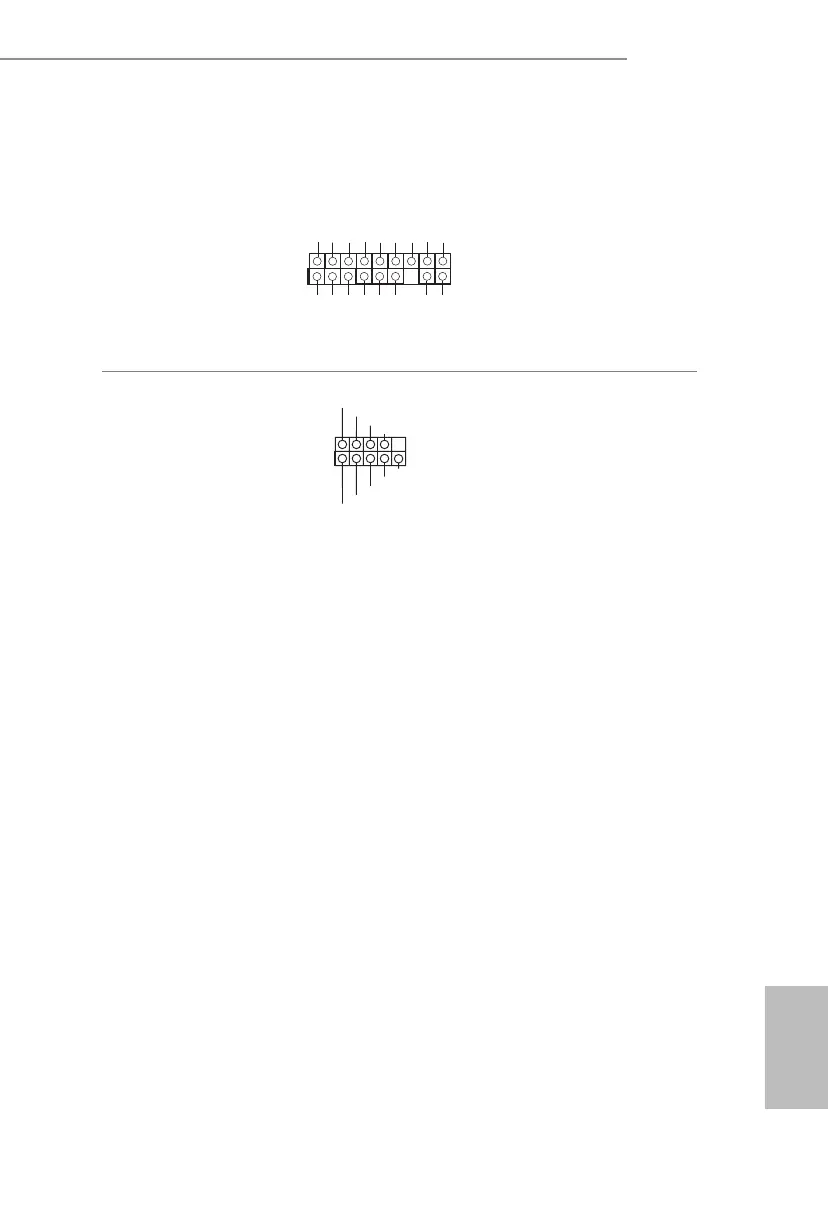

TPM Header
(17-pin TPMS1)
(see p.1, No. 16)
is connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
Serial Port Header
(9-pin COM1)
(see p.1, No. 13)
is COM1 header
supports a serial port
module.
1
GND
SMB _DATA_MAIN
LAD2
LAD1
GND
S_P WRDWN#
SER IRQ #
GND
PCI CLK
PCI RST#
LAD3
+3V
LAD0
+3VS B
GND
FRA M E
SMB _CLK_MAIN
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1
