ASROCK J3710-ITX - Page 5

English
3
J3710-ITX
J3160-ITX

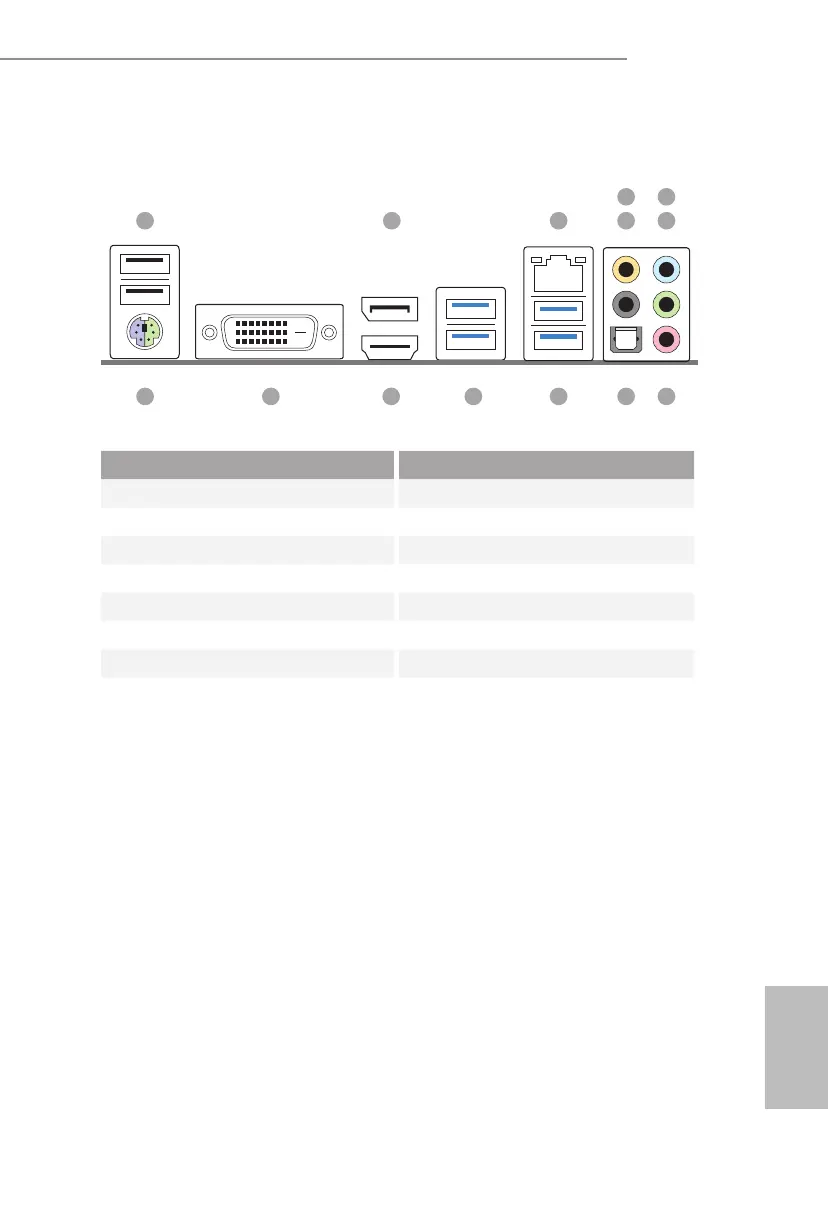

I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB12) 8 Microphone (Pink)
2 DisplayPort 1.1a 9 Optical SPDIF Out Port
3 LAN RJ-45 Port* 10 USB 3.0 Ports (USB3_12)
4 Central / Bass (Orange) 11 USB 3.0 Ports (USB3_56)
5 Rear Speaker (Black) 12 HDMI Port
6 Line In (Light Blue) 13 DVI-D Port
7 Front Speaker (Lime)** 14 PS/2 Mouse/Keyboard Port
1
14 8910111213
2 3 5
4
7
6
