ASROCK N3150TM-ITX User Manual

109
Türkçe
N3150TM-ITX
1

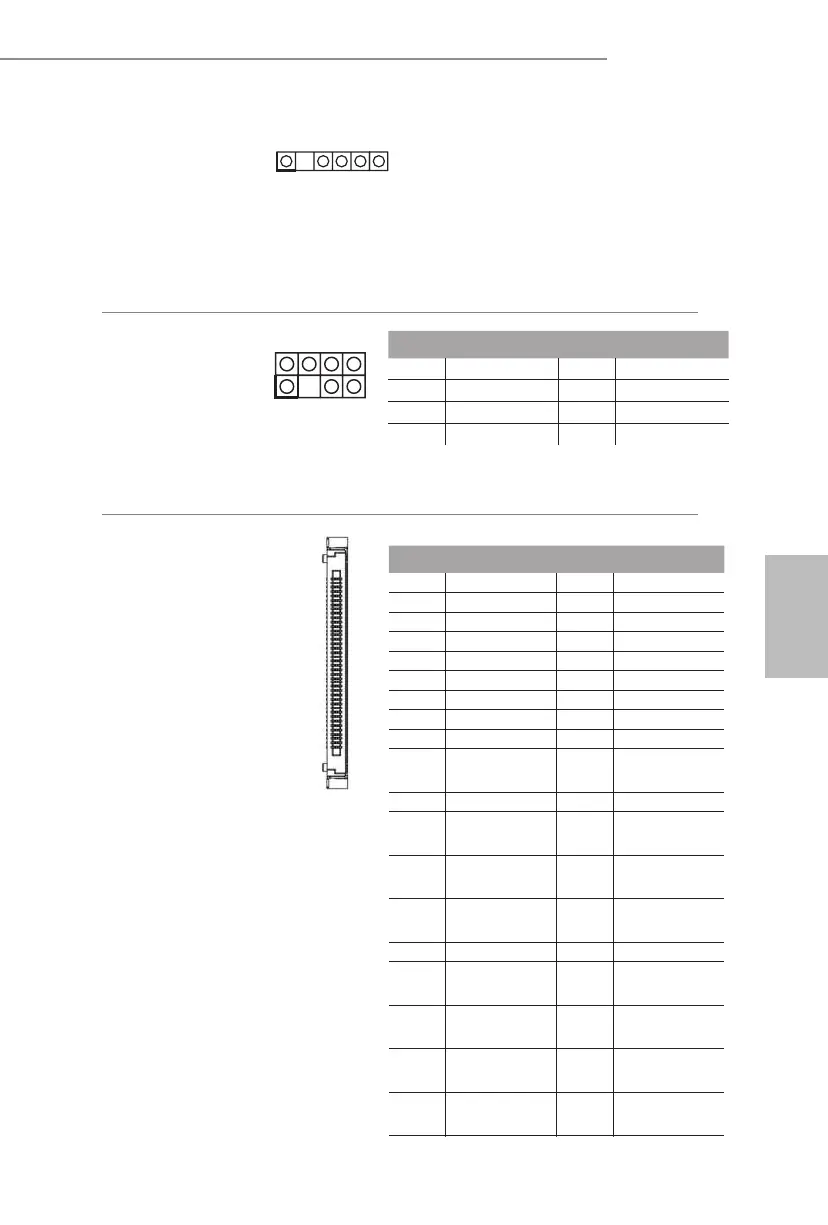

Dijital MIC Kafası
(5 pimli DMIC1)
(bkz. sf.1, No. 26)
1: +5V
2: Pim yok
3: SPDIF_OUT/DMIC_CLK
4: GND
5: DMIC_DATA
6: +3,3V
Ev Sineması PC
Kafa
(7 pimli HTPC1)
(bkz. sf.1, No. 24)
LVDS Panel Bağlayıcı
(40 pimli LVDS1)
(bkz. sf.1, No. 15)
PIN Sinyal Adı PIN Sinyal Adı
1 ODD_Lane3_P 21 NC
2 ODD_Lane3_N 22 EDID_3.3V
3 ODD_Lane2_P 23 LCD_GND
4 ODD_Lane2_N 24 LCD_GND
5 ODD_Lane1_P 25 LCD_GND
6 ODD_Lane1_N 26 ODD_CLK_P
7 ODD_Lane0_P 27 ODD_CLK_N
8 ODD_Lane0_N 28 BKLT_GND
9 EVEN_Lane3_P 29 BKLT_GND
10
EVEN_Lane3_
N
30 BKLT_GND
11 EVEN_Lane2_P 31 EDID_CLK
12
EVEN_Lane2_
N
32 BKLT_ENABLE
13 EVEN_Lane1_P 33
BKLT_PWM_
DIM
14
EVEN_Lane1_
N
34 EVEN_CLK_P
15 EVEN_Lane0_P 35 EVEN_CLK_N
16
EVEN_Lane0_
N
36
BKLT_PWR
(12V/19V)
17 EDID_GND 37
BKLT_PWR
(12V/19V)
18
LCD_VCC
(3,3V/5V)
38
BKLT_PWR
(12V/19V)
19
LCD_VCC
(3,3V/5V)
39 NC
20
LCD_VCC
(3,3V/5V)
40 EDID_DATA
PIN Sinyal Adı PIN Sinyal Adı
8 HDMI CEC 7 #Güç_Düğmesi
6 SMB_DATA 5 3,3V Bekleme
4 SMB_CLK 3 Pim yok
2 GND 1 Kayıt LED'i
1
40
2 8
