12

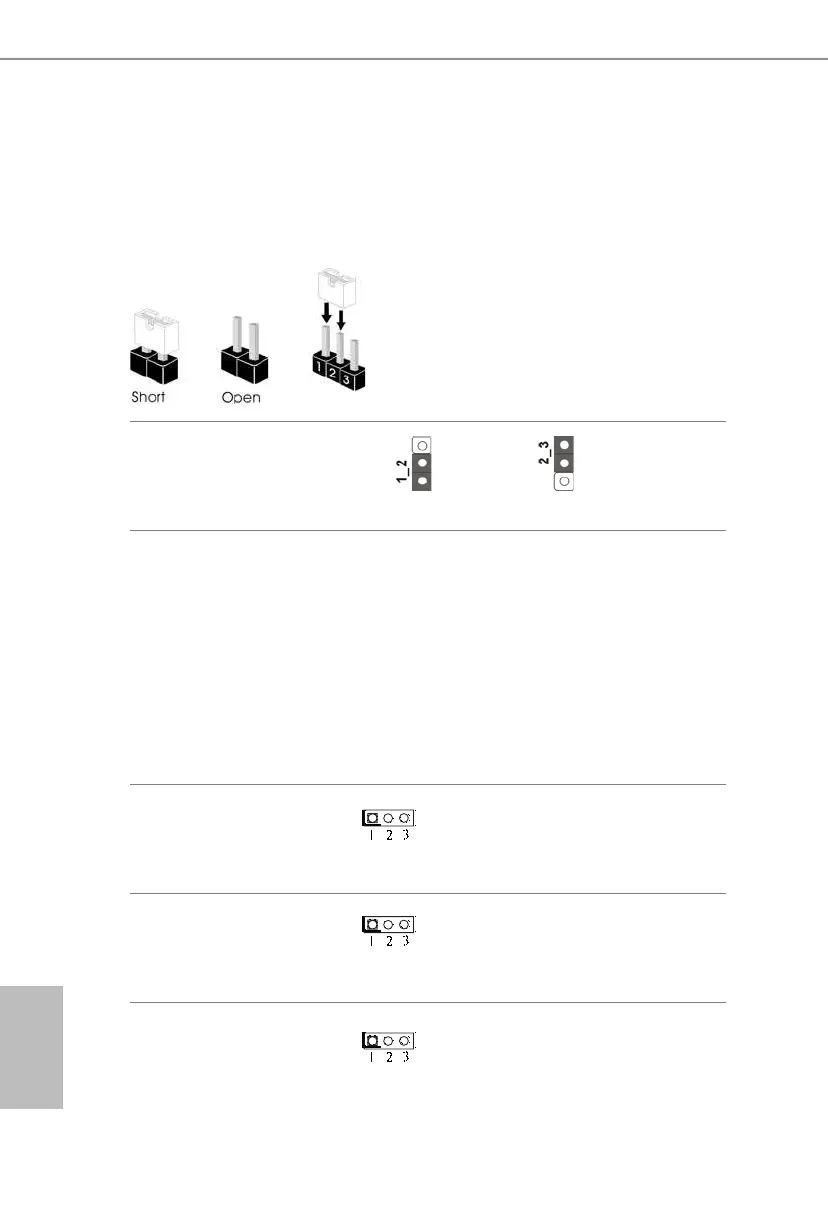

2.3 Jumpers Setup
e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper
is “Open”. e illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”
when a jumper cap is placed on these 2 pins.
Clear CMOS Jumper
(CLRCMOS1)
(see p.1, No. 20)
CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the system
parameters to default setup, please turn o the computer and unplug the power
cord from the power supply. Aer waiting for 15 seconds, use a jumper cap to
short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear
the CMOS right aer you update the BIOS. If you need to clear the CMOS when
you just nish updating the BIOS, you must boot up the system rst, and then shut
it down before you do the clear-CMOS action. Please be noted that the password,
date, time, and user default prole will be cleared only if the CMOS battery is
removed.
Backlight Power Jumper
(3-pin BKT_PWR1)
(see p.1, No. 12)
1-2 : +12V
2-3 : +19V
Panel Power Jumper
(3-pin PNL_PWR1)
(see p.1, No. 14)
1-2 : +3V
2-3 : +5V
Digital Input / Output
Power Selection Jumper
(see p.1, No. 22)
1-2 : +12V
2-3 : +5V
Clear CMOS
Default
To Next Page
