ASROCK N68-VS3 FX Quick Installation Guide

22
22
2
ASRock N68-VGS3 FX / N68-VS3 FX Motherboard
EnglishEnglish
EnglishEnglish
English

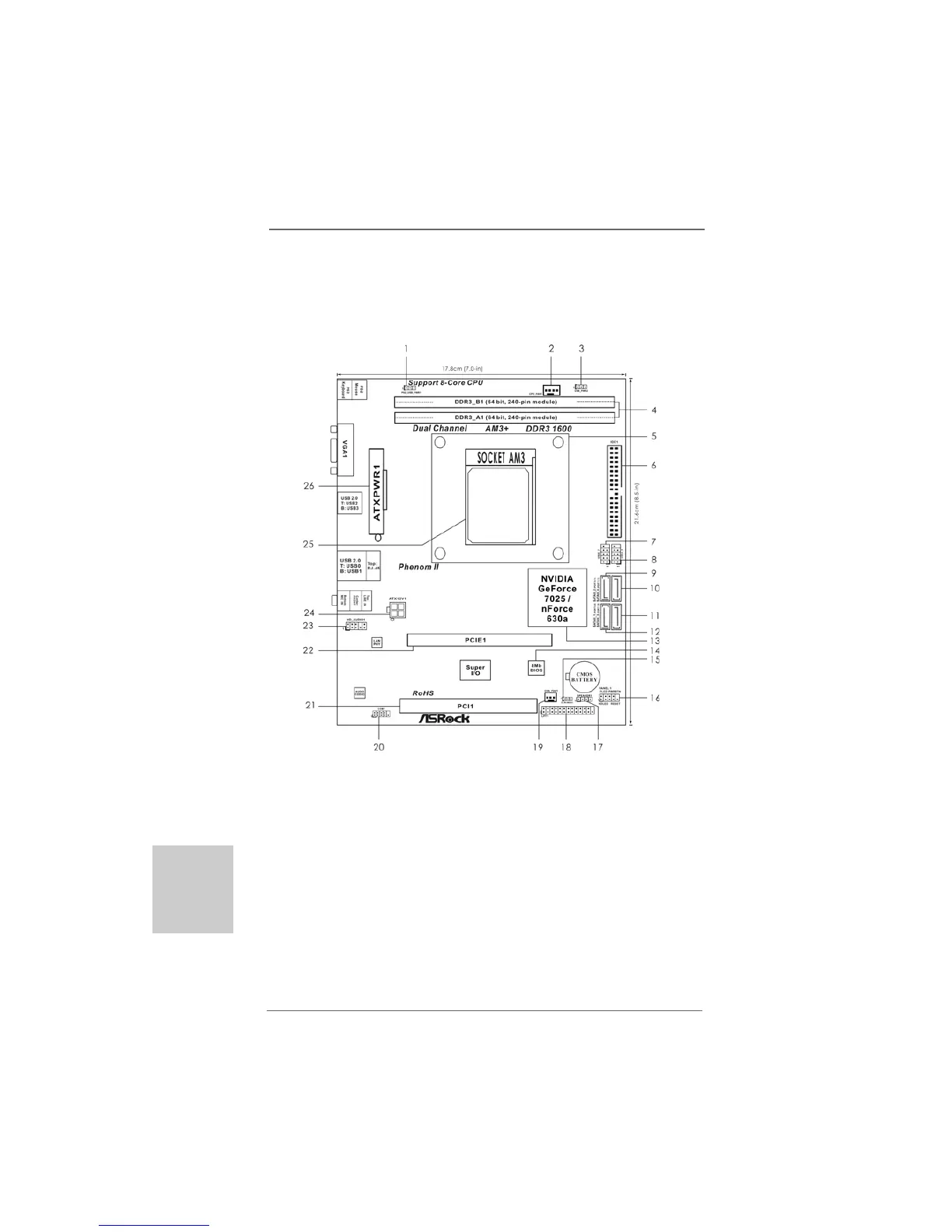

Motherboard LayoutMotherboard Layout
Motherboard LayoutMotherboard Layout
Motherboard Layout
(N68-(N68-
(N68-(N68-
(N68-
VGS3 FX / N68-VGS3 FX / N68-
VGS3 FX / N68-VGS3 FX / N68-
VGS3 FX / N68-
VS3 FX)VS3 FX)
VS3 FX)VS3 FX)
VS3 FX)
1 PS2_USB_PWR1 Jumper 15 Clear CMOS Jumper (CLRCMOS1)
2 CPU Fan Connector (CPU_FAN1) 16 System Panel Header (PANEL1, White)
3 USB_PWR2 Jumper 17 Chassis Speaker Header
4 2 x 240-pin DDR3 DIMM Slots (SPEAKER 1, White)
(Dual Channel: DDR3_A1, DDR3_B1; Blue) 18 Print Port Header (LPT1, White)
5 CPU Heatsink Retention Module 19 Chassis Fan Connector (CHA_FAN1)
6 Primary IDE Connector (IDE1, Blue) 20 Serial Port Connector (COM1)
7 USB 2.0 Header (USB6_7, Blue) 21 PCI Slot (PCI1)
8 USB 2.0 Header (USB4_5, Blue) 22 PCI Express x16 Slot (PCIE1)
9 SATAII Connector (SATAII_2 (PORT 0.1)) 23 Front Panel Audio Header
10 SATAII Connector (SATAII_4 (PORT 1.1)) (HD_AUDIO1, Lime)
11 SATAII Connector (SATAII_3 (PORT 1.0)) 24 ATX 12V Power Connector (ATX12V1)
12 SATAII Connector (SATAII_1 (PORT 0.0)) 25 AM3 CPU Socket
13 NVIDIA GeForce 7025 / nForce 630a 26 ATX Power Connector (ATXPWR1)
14 SPI Flash Memory (4Mb)

ASROCK N68-VS3 FX Specifications

General

CPU Socket	AM3+
Chipset	NVIDIA GeForce 7025 / nForce 630a
Memory Slots	2 x DDR3 DIMM
Maximum Memory	16GB
Expansion Slots	1 x PCI Express x16, 1 x PCI Express x1, 1 x PCI
Storage Interface	4 x SATA 3Gb/s
USB Ports	8 x USB 2.0 (4 rear, 4 via headers)
Form Factor	Micro ATX
Audio Chipset	VIA VT1705
LAN Chipset	Realtek RTL8201EL
Max. LAN Speed	10/100 Mbps
PS/2 Ports	1 x PS/2 keyboard, 1 x PS/2 mouse
Video Outputs	1 x VGA
