ASROCK P67 Pro User Manual

12

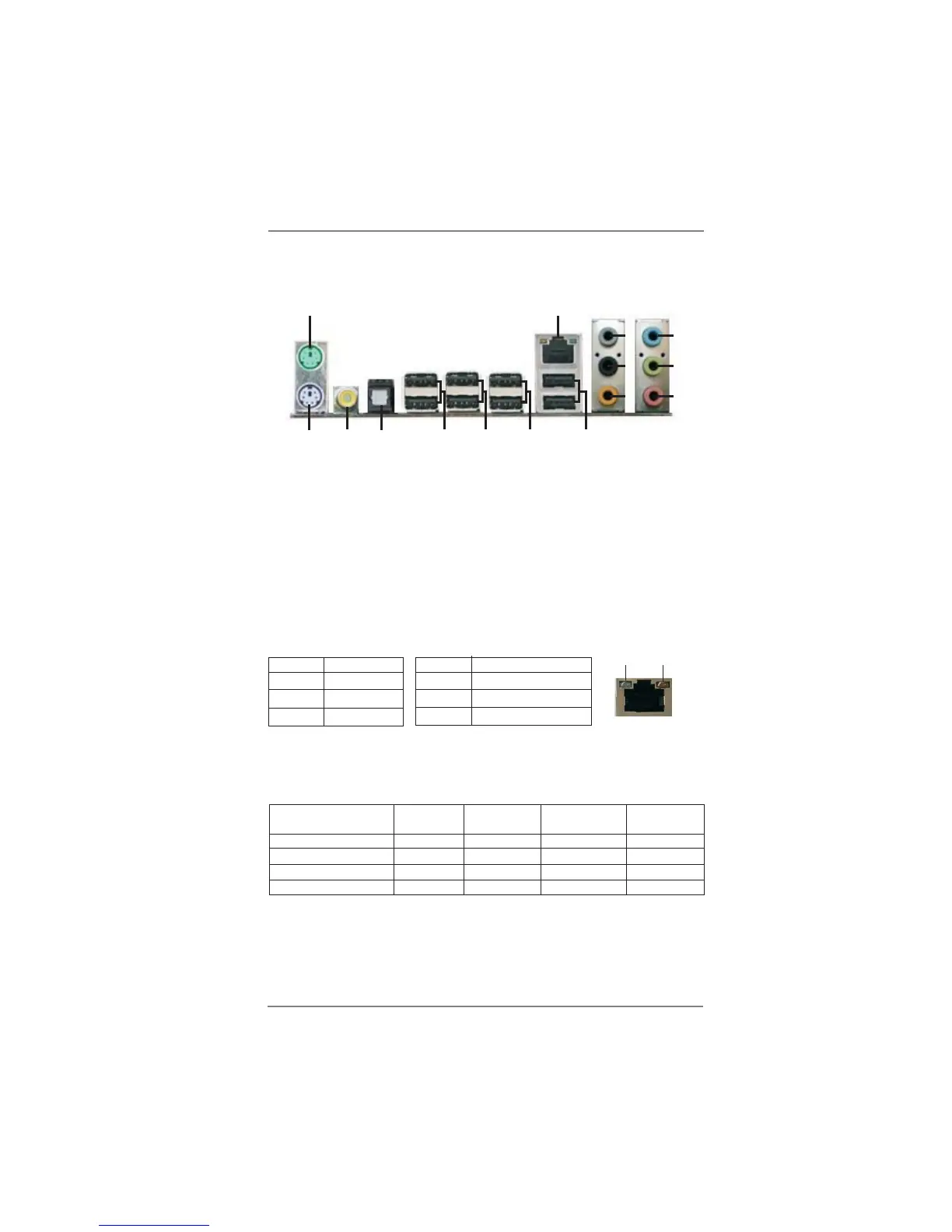

1.4 I/O Panel
**
If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.
See the table below for connection details in accordance with the type of speaker you use.
TABLE for Audio Output Connection
Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker
(No. 7) (No. 4) (No. 5) (No. 3)
2 V -- -- --
4 V V -- --
6 V V V --
8 V V V V
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Link Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK
LED
SPEED
LED
LAN Port
1 PS/2 Mouse Port (Green) 9 USB 2.0 Ports (USB01)
* 2 LAN RJ-45 Port 10 USB 2.0 Ports (USB67)
3 Side Speaker (Gray) 11 USB 2.0 Ports (USB45)
4 Rear Speaker (Black) 12 USB 2.0 Ports (USB23)
5 Central / Bass (Orange) 13 Optical SPDIF Out Port
6 Line In (Light Blue) 14 Coaxial SPDIF Out Port
** 7 Front Speaker (Lime) 15 PS/2 Keyboard Port (Purple)
8 Microphone (Pink)
1
2
4
3
5
6
7
8
9
10
11
12
13
14
15

ASROCK P67 Pro Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Number of memory slots	4
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2133 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
USB 2.0 connectors	3
Number of COM connectors	1
Number of SATA connectors	6
Number of SATA III connectors	2
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	8
Certification	FCC, CE, WHQL
Component for	PC
Motherboard chipset	Intel® P67
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows 7/Vista/XP
On-board graphics card	No
Parallel processing technology support	Not supported
PCI Express slots version	2.0
RAID levels	0, 1, 5, 10
LAN controller	Realtek RTL8111E
Networking features	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1

Weight and Dimensions

Depth	203 mm
Width	305 mm
