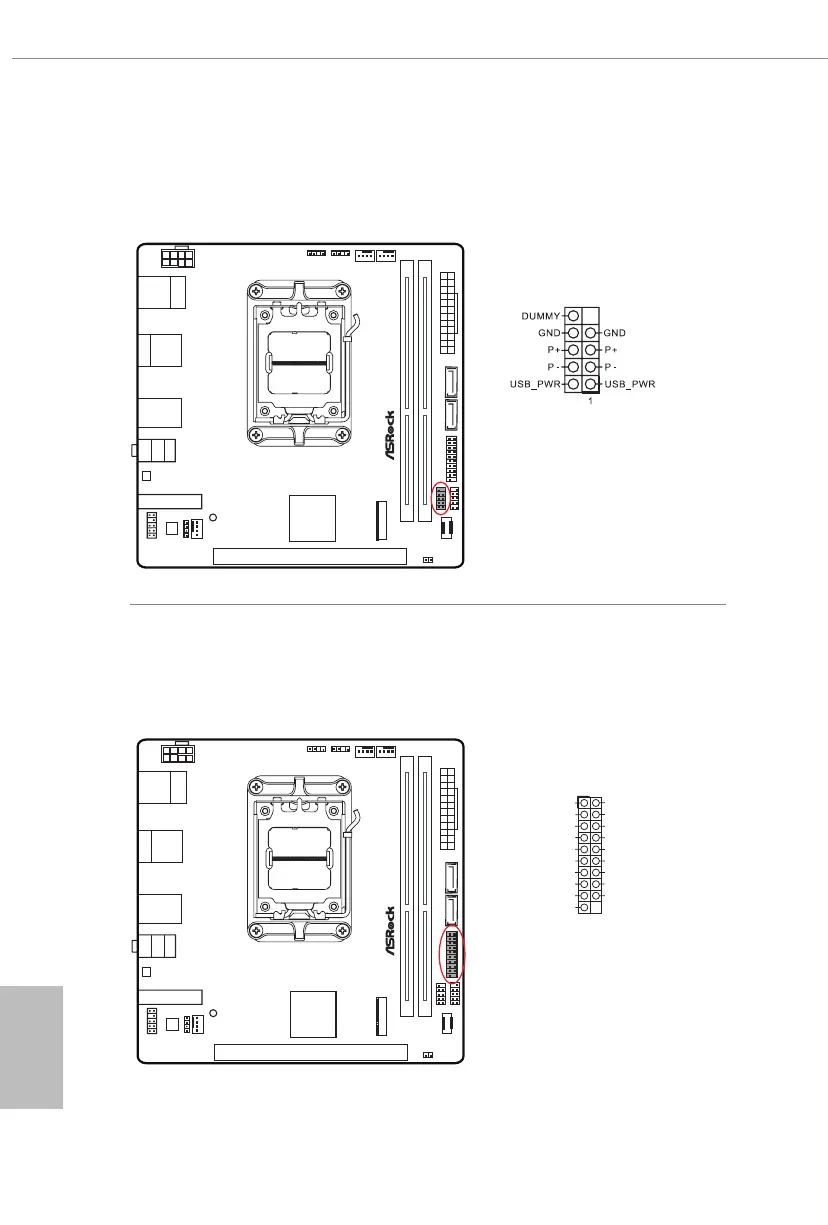

USB 2.0 Header
(9-pin USB_5_6) (see p.6, No. 12)
ere is one header on this motherboard. is USB 2.0 header can support two
ports.
USB 3.2 Gen1 Header
(19-pin USB32_4_5) (see p.6, No. 10)
ere is one header on this motherboard. is USB 3.2 Gen1 header can support
two ports.
USB32_4_5
1
IntA_P B_ D+
Dummy
IntA_P B_ D-
GND
IntA_P B_ SS TX+
GND
IntA_P B_ SS TX-
IntA_P B_ SS RX+
IntA_P B_ SS RX-
Vbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
USB_5_6

ASROCK PHANTOM GAMING B650E PG-ITX WiFi Specifications

General

Chipset	AMD B650E
Form Factor	Mini-ITX
Memory Slots	2 x DIMM
Max Memory	64GB
PCIe Slots	1 x PCIe 5.0 x16
Bluetooth	Bluetooth 5.2
Ethernet	2.5 Gigabit LAN
CPU Socket Type	AM5
Memory Speed	DDR5 6400+(OC)
Storage Interface	4 x SATA3
Wireless	Wi-Fi 6E
USB Ports	1 x USB 3.2 Gen2x2 Type-C
Video Outputs	1 x HDMI, 1 x DisplayPort
