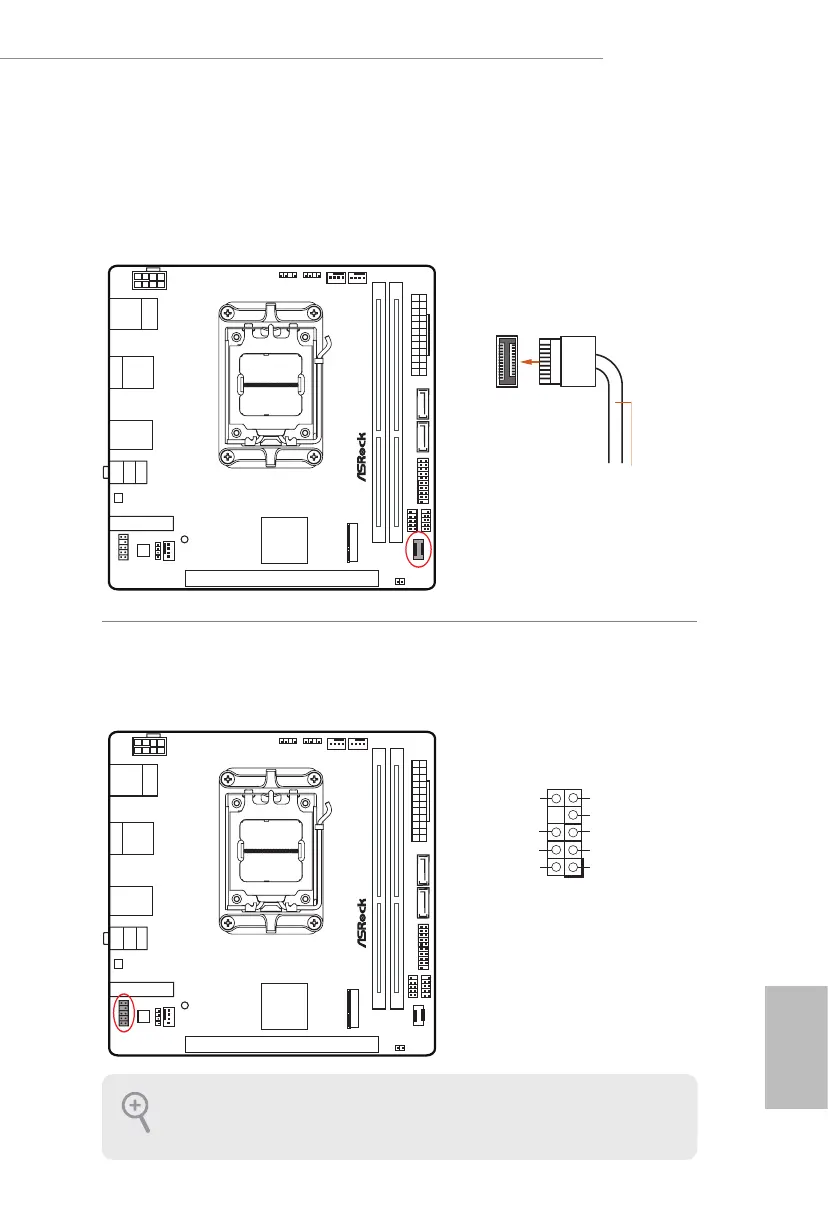

Front Panel Type C USB 3.2 Gen2x2 Header
(20-pin USB32_TC2) (see p.6, No. 13)
ere is one Front Panel Type C USB 3.2 Gen2x2 Header on this motherboard.
is header is used for connecting a USB 3.2 Gen2x2 module for additional USB 3.2
Gen2x2 ports.
Front Panel Audio Header
(9-pin HD_AUDIO1) (see p.6, No. 17)
is header is for connecting audio devices to the front audio panel.
USB32_TC2
USB Type-C Cable
HD_AUDIO1
J_SENS E
OUT2_L
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
1
High Denition Audio supports Jack Sensing, but the panel wire on the chassis must
support HDA to function correctly. Please follow the instructions in our manual and
chassis manual to install your system.

ASROCK PHANTOM GAMING B650E PG-ITX WiFi Specifications

General

Chipset	AMD B650E
Form Factor	Mini-ITX
Memory Slots	2 x DIMM
Max Memory	64GB
PCIe Slots	1 x PCIe 5.0 x16
Bluetooth	Bluetooth 5.2
Ethernet	2.5 Gigabit LAN
CPU Socket Type	AM5
Memory Speed	DDR5 6400+(OC)
Storage Interface	4 x SATA3
Wireless	Wi-Fi 6E
USB Ports	1 x USB 3.2 Gen2x2 Type-C
Video Outputs	1 x HDMI, 1 x DisplayPort
