ASROCK PHANTOM GAMING B650E PG-ITX WiFi User Manual

English
44

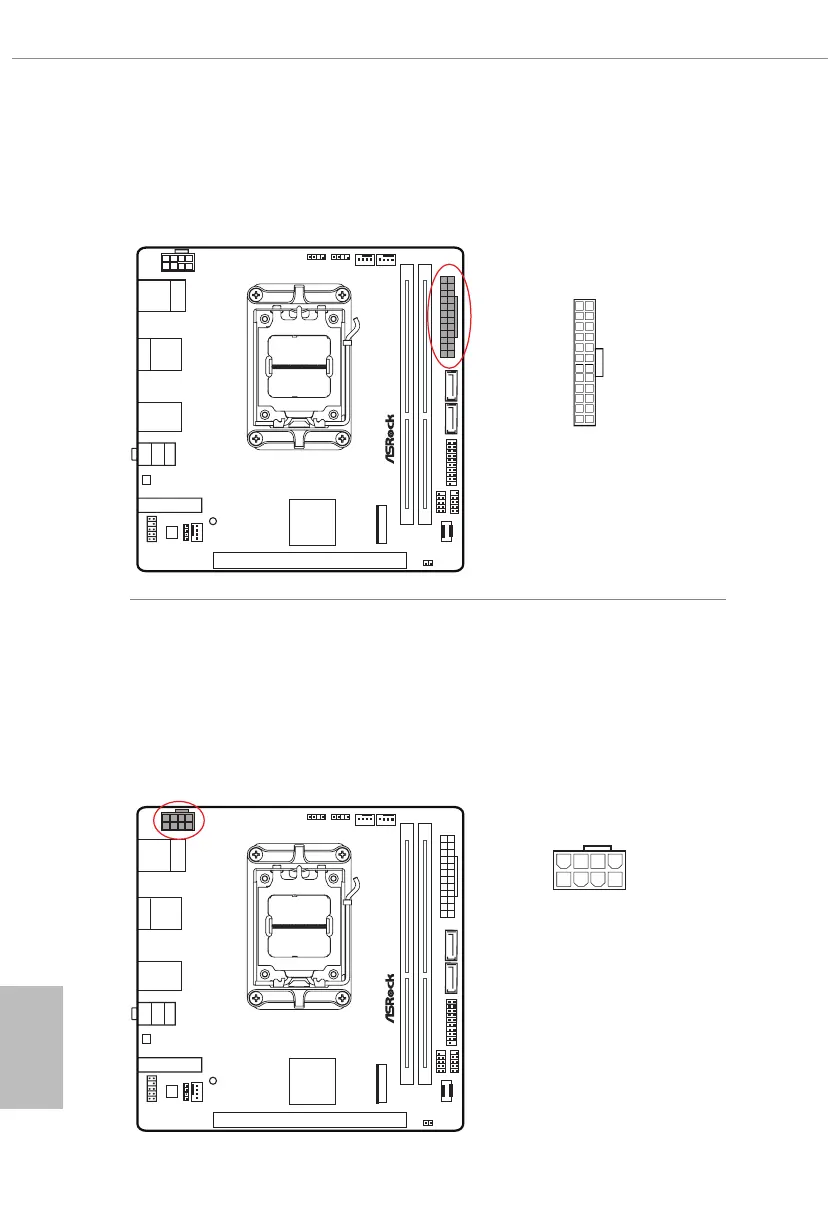

ATX Power Connector
(24-pin ATXPWR1) (see p.6, No. 7)
is motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX
power supply, please plug it along Pin 1 and Pin 13.
ATX 12V Power Connector
(8-pin ATX12V1) (see p.6, No. 1)
is motherboard provides a 8-pin ATX 12V power connector. To use a 4-pin
ATX power supply, please plug it along Pin 1 and Pin 5.
*Warning: Please make sure that the power cable connected is for the CPU and
not the graphics card. Do not plug the PCIe power cable to this
connector.
ATX12V1
4
1
8 5
ATXPWR1
12
1
24
13

ASROCK PHANTOM GAMING B650E PG-ITX WiFi Specifications

General

Chipset	AMD B650E
Form Factor	Mini-ITX
Memory Slots	2 x DIMM
Max Memory	64GB
PCIe Slots	1 x PCIe 5.0 x16
Bluetooth	Bluetooth 5.2
Ethernet	2.5 Gigabit LAN
CPU Socket Type	AM5
Memory Speed	DDR5 6400+(OC)
Storage Interface	4 x SATA3
Wireless	Wi-Fi 6E
USB Ports	1 x USB 3.2 Gen2x2 Type-C
Video Outputs	1 x HDMI, 1 x DisplayPort
