B650E PG-ITX WiFi

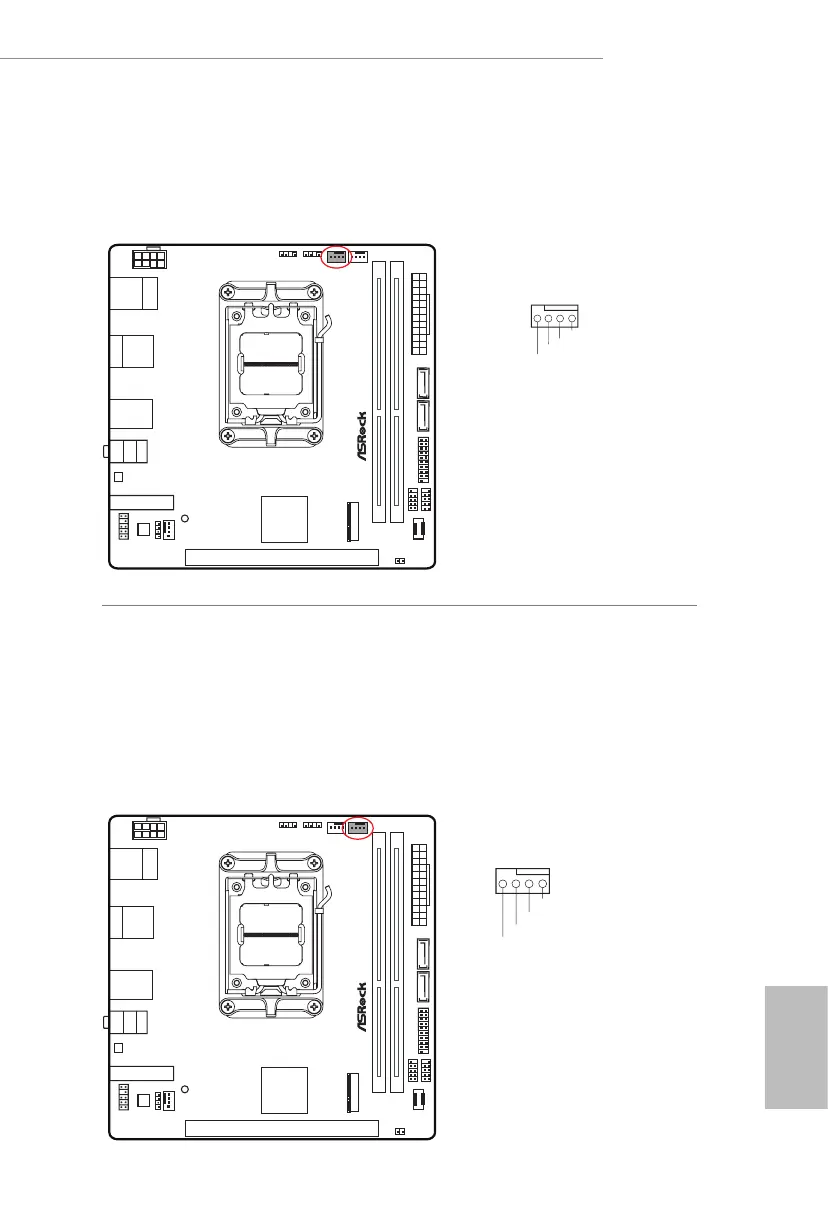

CPU Fan Connector

(4-pin CPU_FAN1) (see p.6, No. 4)

is motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to

connect a 3-Pin CPU fan, please connect it to Pin 1-3.

CPU/Water Pump Fan (M.2 Fan) Connector

(4-pin CPU_FAN2/WP) (see p.6, No. 5)

is motherboard provides a 4-Pin water cooling CPU fan connector. If you plan

to connect a 3-Pin CPU water cooler fan, please connect it to Pin 1-3.

*CPU_FAN2/WP (M.2 fan connector) is connected to the attached fan cable of

ASRock Blazing M.2 Gen5 Fan Heatsink pre-installed on M2_1 socket. Please

refer to page 47 for details.

CPU_FAN1

CPU_FAN2/WP

4 3 2 1

G ND

+12V

C PU_FAN_SPEED

FAN_SPEED_CONTROL

CPU_F

FAN_VOLTAGE

GND

AN_SPEED

FAN_SPEED_CONTROL

4 3 2 1
