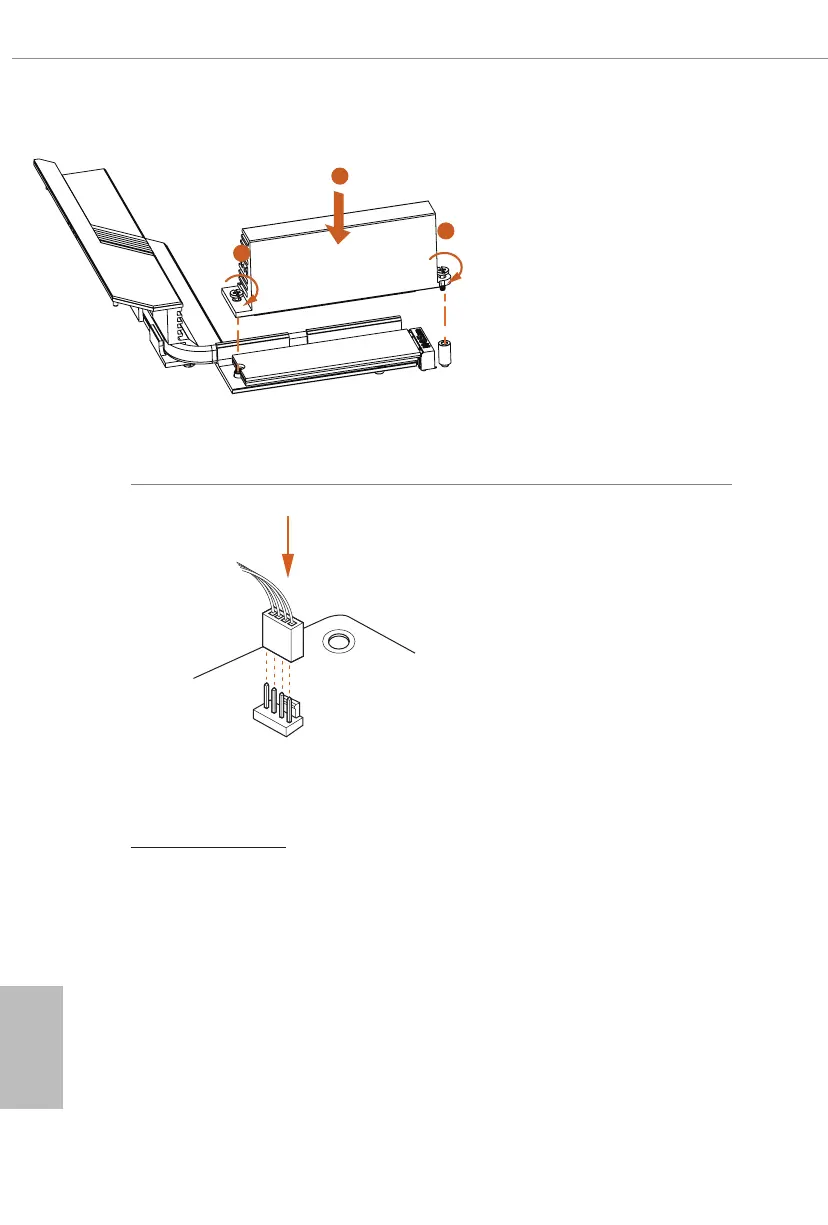

Step 6
Tighten the screws with a screwdriver
to secure the module and Blazing M.2
Gen5 Fan Heatsink into place in the
order shown. Tighten screw opposite
the M.2 connector rst (2), and
then tighten the one next to the M.2
connector (3).
*Please do not overtighten the screw
as this might damage the module and
Blazing M.2 Gen5 Fan Heatsink.
Step 7
Plug the attached fan cable to M.2 fan
connector (CPU_FAN2/WP, see p.6,
No. 5) on the motherboard.
1
2
3
